"CRUSADER
25
0
,"
"250
CLIPPER"
AND
"CRUSADER
SPORTS"
CLUTCH
DIPPER
REAR BRAKE
IGNmo'
SW
I
TGe'
)
ON
TOOL
BOX
y
0
"
KICK
STARTER

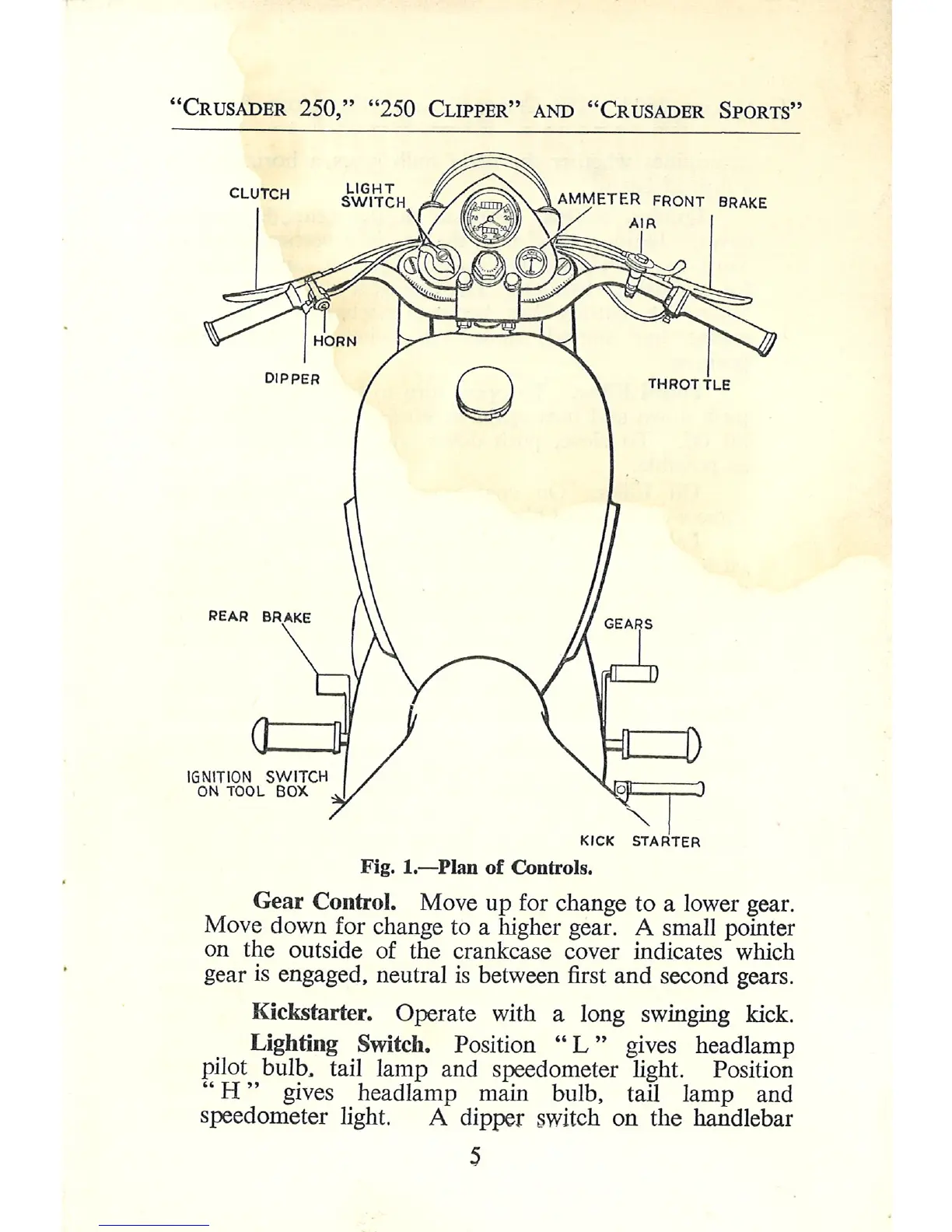

Fig.
1.-Plan
of
Controls.
BRAKE
Gear Control.
Move up for change to a lower gear.
Move down for change to a higher gear. A small pointer
on the outside
of
the crankcase cover indicates which
gear
is
engaged, neutral
is
between first and second gears.
Kickstarter.
Operate with a long swinging kick.
Lighting Switch.
Position
"
L
" gives headlamp
pilot bulb. tail lamp and speedometer light. Position
"H"
gives headlamp main bulb, tail lamp and
speedometer light. A dipper
switch
on the handlebar
5
