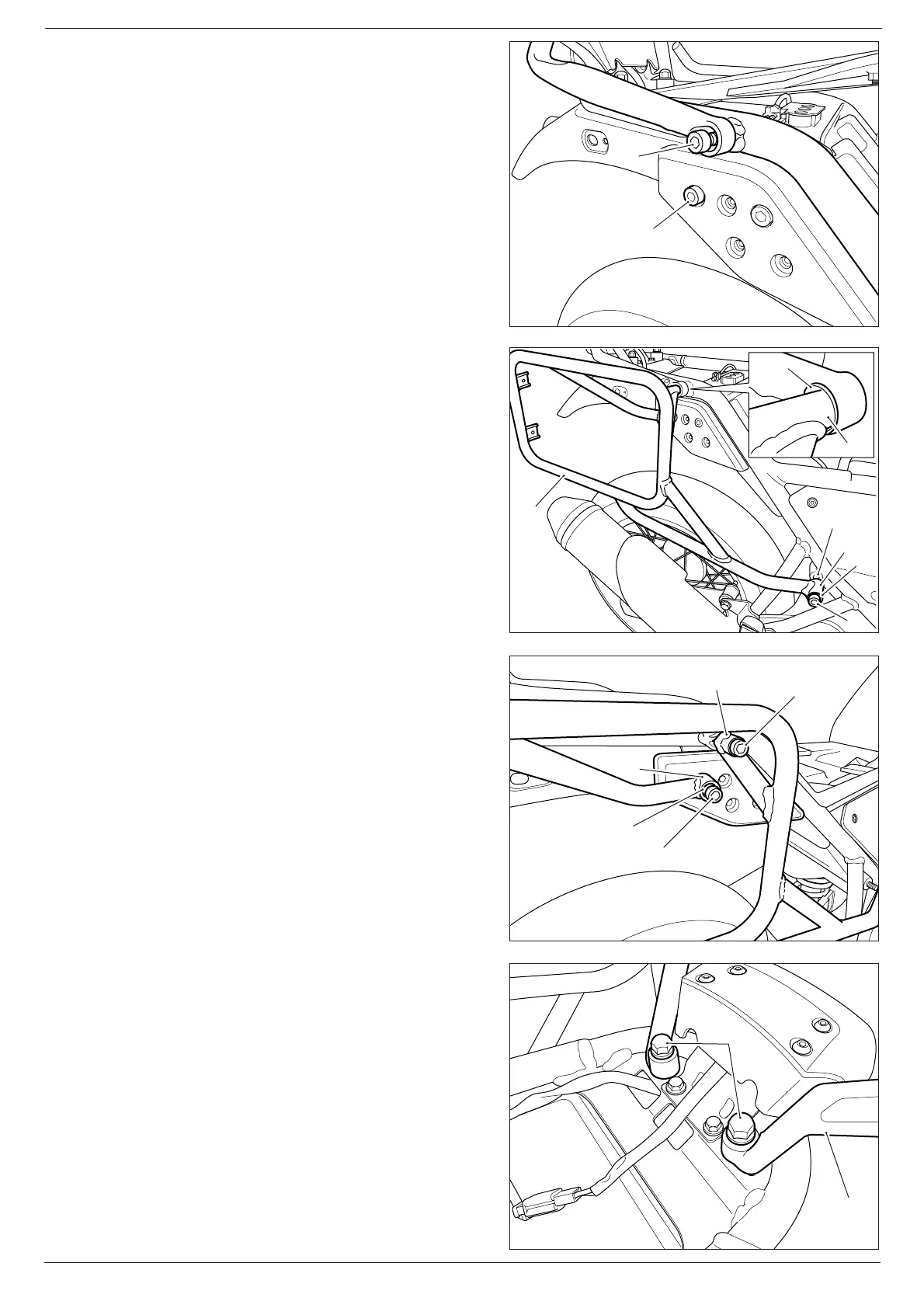

7 Remove the right hand front luggage rack fixing (1). Retain the
fixing for future reuse if the accessory pannier kit is removed.
Remove the right hand rear saddlebag mounting fixing (2). Retain
the fixing for future reuse if the accessory pannier kit is removed.
8 Position the right hand pannier rail (1) on the motorcycle ensuring
the top rear mounting (2) is correctly located in the luggage rack
mounting recess (3), as shown.
Align the pannier rail front mounting (4) with the fixing position on
the motorcycle frame (5) and loosely fit an M8 x 45mm fixing (6) and
M8 washer (7) from the kit.
9 Loosely fit an M8 x 60mm fixing (1) from the kit to the pannier rail
luggage rack mounting position (2).
Loosely fit an M8 x 60mm fixing (3) and M8 washer (4) from the kit
to the pannier rail and saddlebag mounting position (5), as shown.
Do not fully tighten any pannier rail fixings at this stage.
Repeat steps 7 to 9 for the left hand pannier rail.
10 Loosen the grab rail (1) rear fixings (2) . Do not remove the
fixings.
