Royal Prince - Belt and Brush Maintenance

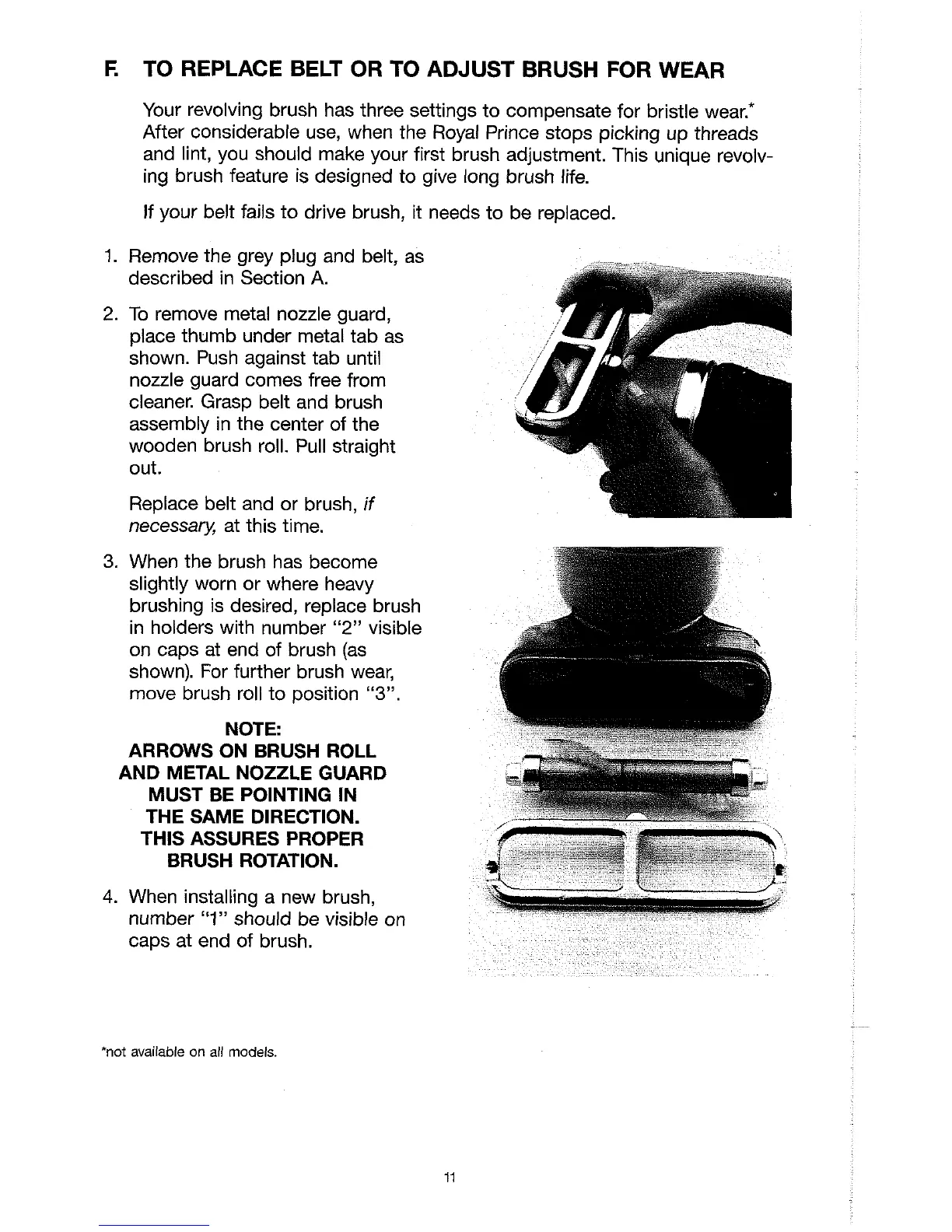

F. TO REPLACE BELT OR TO ADJUST BRUSH FOR WEAR
Your revolving brush has three settings to compensate for bristle wear.*
After considerable use, when the Royal Prince stops picking up threads
and lint, you should make your first brush adjustment. This unique revolv-
ing brush feature is designed to give long brush life.
If your belt fails to drive brush, it needs to be replaced.
1. Remove the grey plug and belt, as
described in Section
A.
2.
To remove metal nozzle guard,
place thumb under metal tab as
shown. Push against tab until
nozzle guard comes free from
cleaner. Grasp belt and brush
assembly in the center of the
wooden brush roll. Pull straight
out.
Replace belt and or brush,
if
necessary, at this time.
3. When the brush has become
slightly worn or where heavy
brushing is desired, replace brush
in holders with number
"2" visible
on caps at end of brush (as
shown). For further brush wear,
move brush roll to position
"3".
NOTE:
ARROWS ON BRUSH ROLL
AND METAL NOZZLE GUARD
MUST BE POINTING IN
THE SAME DIRECTION.
THIS ASSURES PROPER
BRUSH ROTATION.
4. When installing a new brush,
number "1" should be visible on
caps at end of brush.
*not available on all models.
