RPB Radex Filter - Super High Flow Regulator Assembly

10

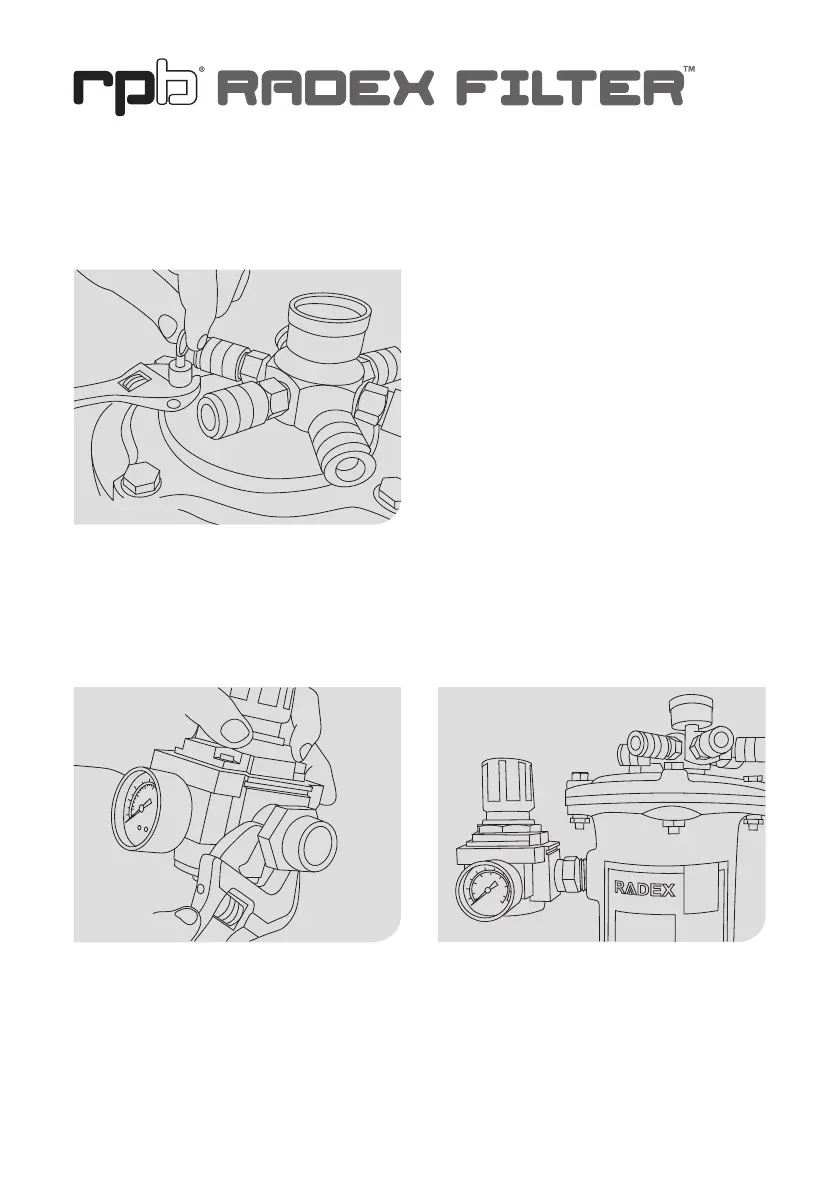

Figure 4.7
Thread the 04-916 Pressure Relief Valve into
the lid and tighten.
Thread the 04-963 Pressure Gauge and
04-966 1”NPT Connector into the 04-962
Super High Flow Regulator and tighten.
Now thread the complete Regulator into
the INPUT port on the body of the Radex
Filter Unit and tighten.
SUPER HIGH FLOW REGULATOR ASSEMBLY
NOTE
If the Pressure Gauge on the Super High
Flow Regulator and the Pressure Gauge on
the Manifold are reading more than 10psi
apart, your cartridge is blocked and needs
replacing.
Refer to your respirator instruction manual
for pressure ranges for your respirators,
increase the pressure according to the
number of operators.
Check ALL ttings and connections are tight. YOUR FILTER IS NOW READY FOR USE.
04906 ASSEMBLY CONTINUED
