04900 ASSEMBLY

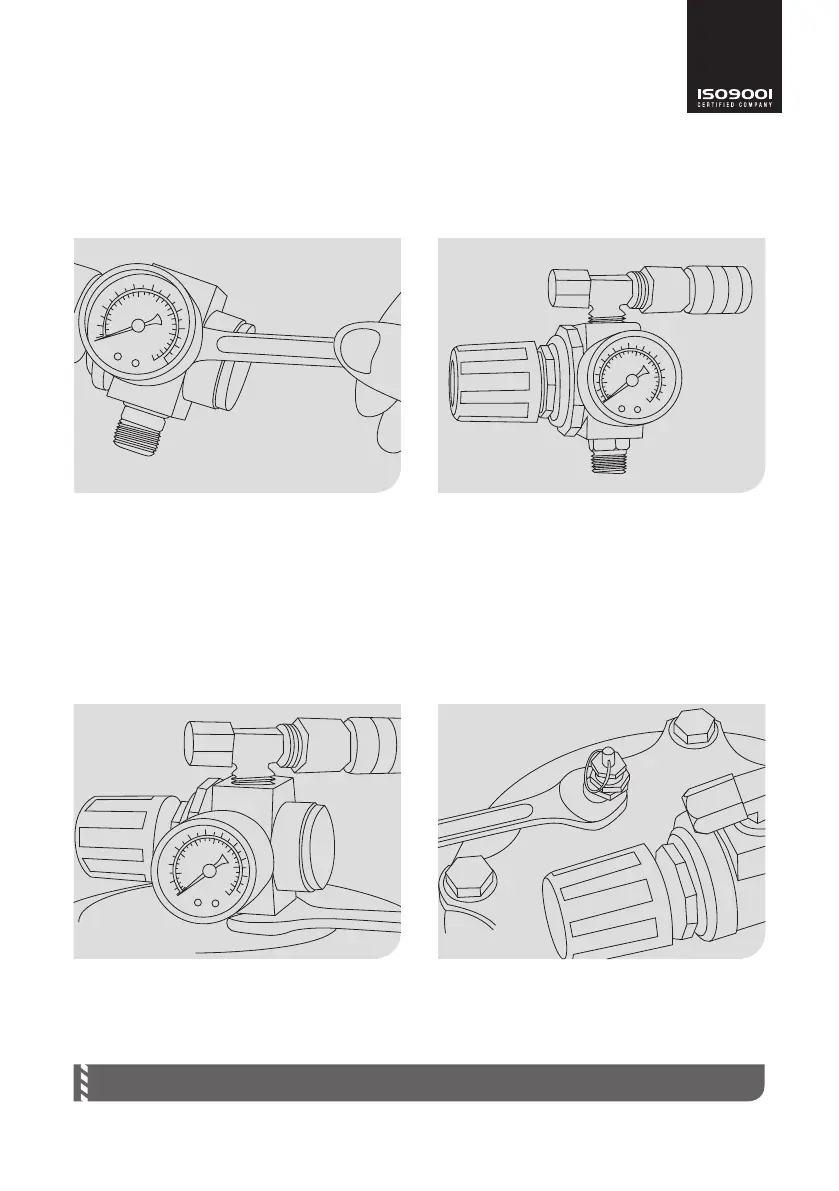

To assembly the pressure regulator, thread
the pressure gauge into the body and
tighten.
Connect the quick disconnect coupler
and brass cap to the 3/8” tee into the top
of the pressure regulator and tighten. It is
recommended that the regulator assembly
is tightened before mounting onto the
Radex Airline Filter. Use thread sealant on all
ttings.
Fit the complete regulator assembly onto
the top of the Radex Airline Filter lid.
Once the regulator assembly has been
tightened onto position you can t the
pressure relief valve and tighten.
Figure 2.1 Figure 2.2
Figure 2.3 Figure 2.4
!WARNING! The pressure relief valve must be connected to protect the Radex Airline Filter from over pressurizing.
