RPB Radex Filter - 04-906 ASSEMBLY; Six Outlet Manifold Assembly; Manifold and Relief Valve Installation

9

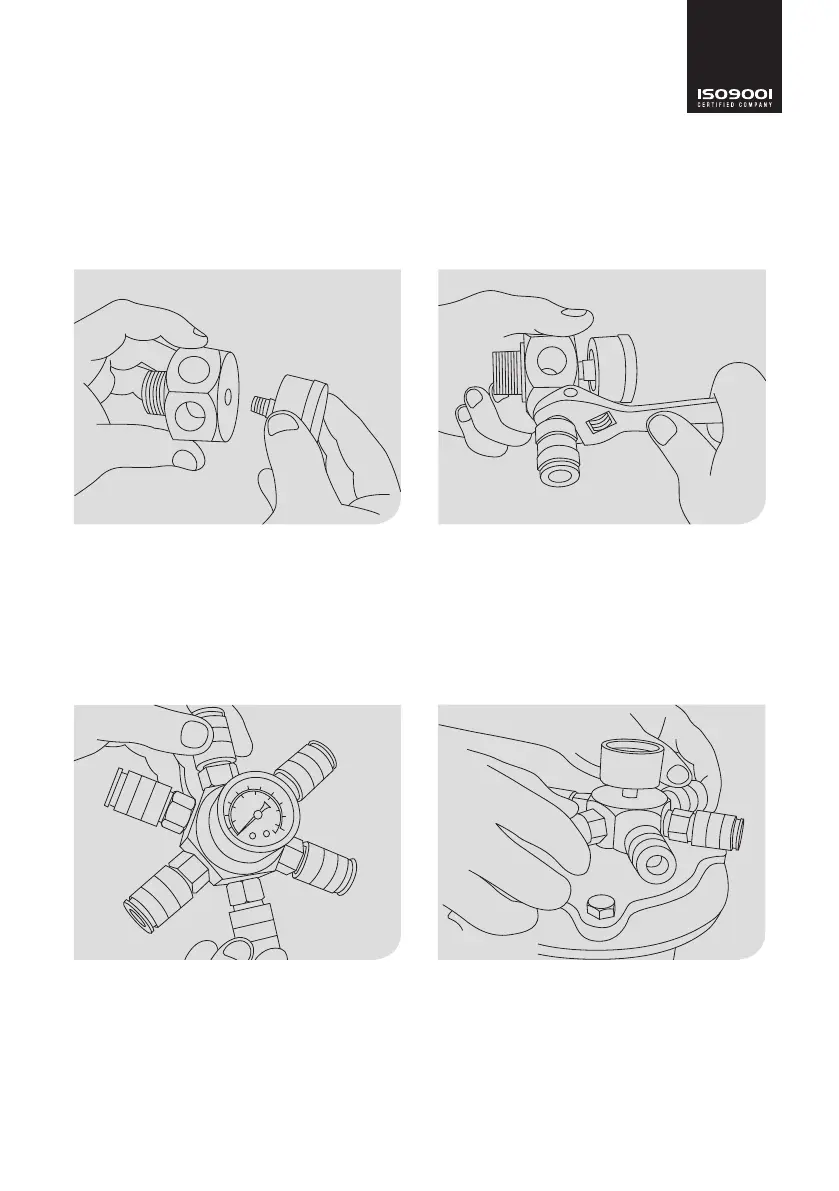

04906 ASSEMBLY
To assemble the Six Outlet Manifold, rstly
thread the 04-915 Pressure Gauge into the
04-965 6 Outlet Manifold and tighten.
Th
read all six 04-964 Couplers into the
04-065 Manifold and tighten.
The pressure relief valve must be connected
to protect the Radex Airline Filter from over
pressurizing.
Thread the completed 04-964 S
ix Outlet
Manifold into filter lid and tighten.
INLET CONNECTION
Figure 4.1
Figure 4.3
Figure 4.4
Figure 4.2
