RSG UNIVERSAL CONTROLLER PLUS User Manual

F:4 Siren Speaker Connection

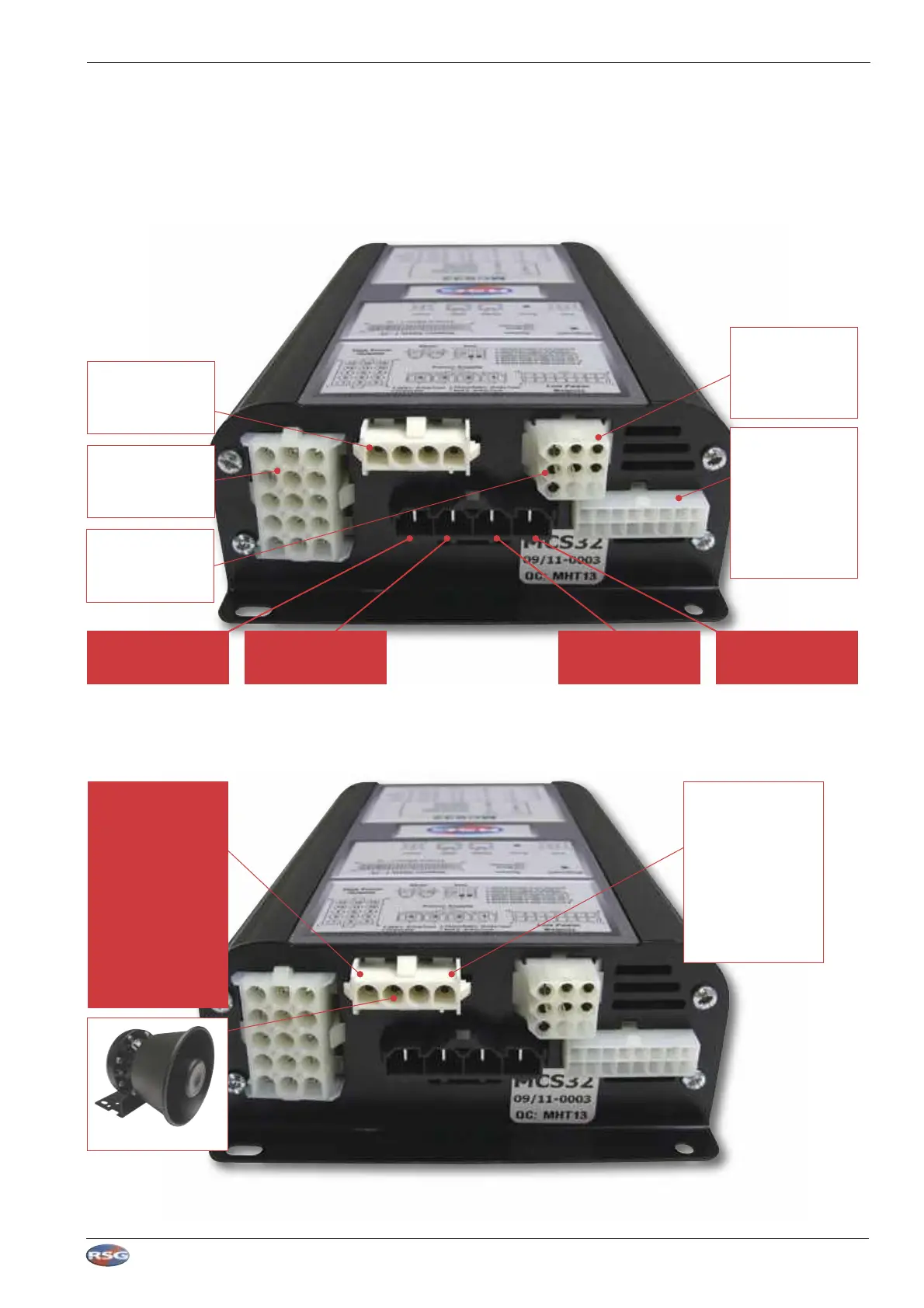

100w Siren
Output
• Selectable tones
UK and Euro
• Reduced volume
‘City Mode’
• Radio re-broadcast
• Workshop mode
• Public address
Siren Speaker
Connector
• Supports 8 or 11 ohm
speakers
• Dedicated enable input
or from handset
• Air horn input
• HRT pos or neg activation
• Multiple siren tones
selected from software
• Monitor signal active
when siren on
100w Siren Speaker LSP-210
Bank A 40 Amps
Supply for Siren & Outputs
Ground
Earth for the Siren & MCS
Ignition Sense
(Primary Battery)
Bank B 40 Amps
Supply to Outputs
Auxiliary
In/Out
With Bypass and
In-line Diodes
Low Power
Outputs
12 x 0.6 Amp Outputs
Ideal for low level
lightbar control
4 x 2.5 Amp Outputs
positive or negative
switching
Siren Speaker
Connector
8 or 11 Ohm
High Power
Outputs
20 Amp Outputs 1-15
High Power
Output
20 Amp Output 16
F:3 Outputs and Power Options
