OWNER’S MANUAL
9
MAX. RECOMMENDATION ROTOR SIZE
MODEL NAME TYPE ROTOR SIZE
POST 203(mm)
SPACE IS 203(mm)
RENEGADE POST 180(mm)
POST 180(mm)
CHAMP series POST 180(mm)
F1RST series POST 180(mm)
AERIAL series POST 180(mm)
PULSE series POST 180(mm)
VOGUE IS 180(mm)
VIVAir IS 180(mm)

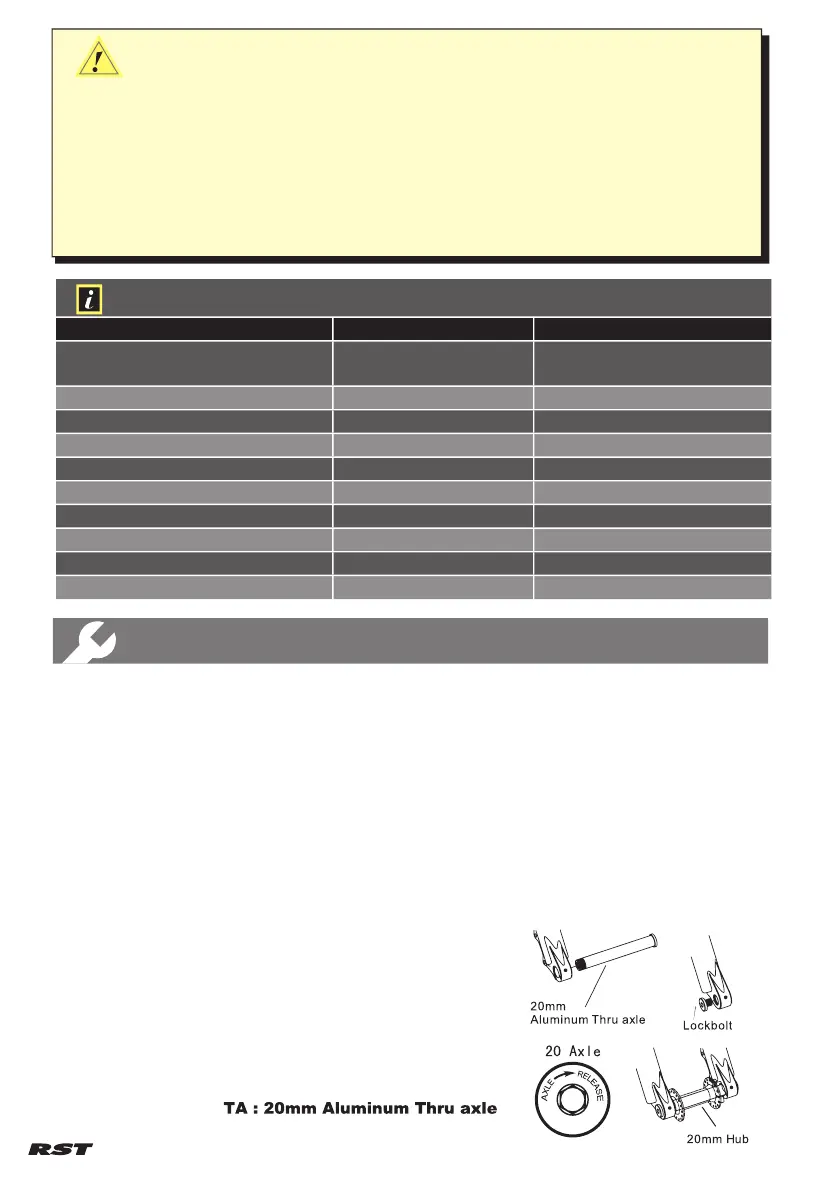

SPECIAL INSTRUCTION FOR 20MM HUB AND QR
INSTALLATION
Installing 20mm Front Hub
1. Slide hub (including 20mm cones) into the legs and line up with axle holes.
2. Apply grease or Anti seize to the entire 20mm axle.
3. Slide the 20mm Axle into the fork/hub from the left hand side (Disc side).
4. Gently turn the axle clockwise to connect to the axle threads in the right hand leg.
5. Once located V fully tighten the axle to 12-15Nm using an 8mm Hex key.
6. Apply grease or anti seize to the Right Hand side Axle lock bolt.
7. Gently screw-in the lock bolt into the 20mm axle end.
8. Hold the left hand side of the axle with a 8mm Hex key and fully tighten the right hand
side lock bolt to 12-15Nm using a 2nd 8mm Hex Key.
9. Check that Disc brake operates correctly.
Instruction of disassemble 20mm thru axle:
1.Use 8mm allen key to loose the bolt in the right leg.
2.Use 8mm allen key to loose the 20mm thru axle.
WARNING
1. Before disassembly of the ‘’function system’’, it is strongly recommended to
take it to an RST dealer. The authorized RST dealers will provide qualified
technicians with proper tools and training to perform service correctly. Improper
disassembly may damage the product and lead to failure of human injury.
2. Before completing maintenance, please make sure all screws have been
securely tightened according the correct torque settings to avoid any human
injury.
TITAN15/ TITAN
KILLAH/ STITCH/STORM
/ ROGUE
/ GUIDE
