Case 10220 and bracket 11280 Introduction Page 5-1
5.1. Description
The case 10220 and the bracket 11280 have been designed to carry digital
plug-in instruments with 64-pin connector DIN 41612A/C and 190 mm front
panel width. Digital i/o, remote control and mains connectors will be found
on the rear panel. Because of their identical power pack and connector
wiring both units are described in one manual .
Table top case with power pack and swivel-mount strap
RTW 10220
Bracket with power pack for mounting into 19/1U rack mount kits
(available as additional accessories, see section 9.3. and appendix B)
RTW 11280
5. Introduction

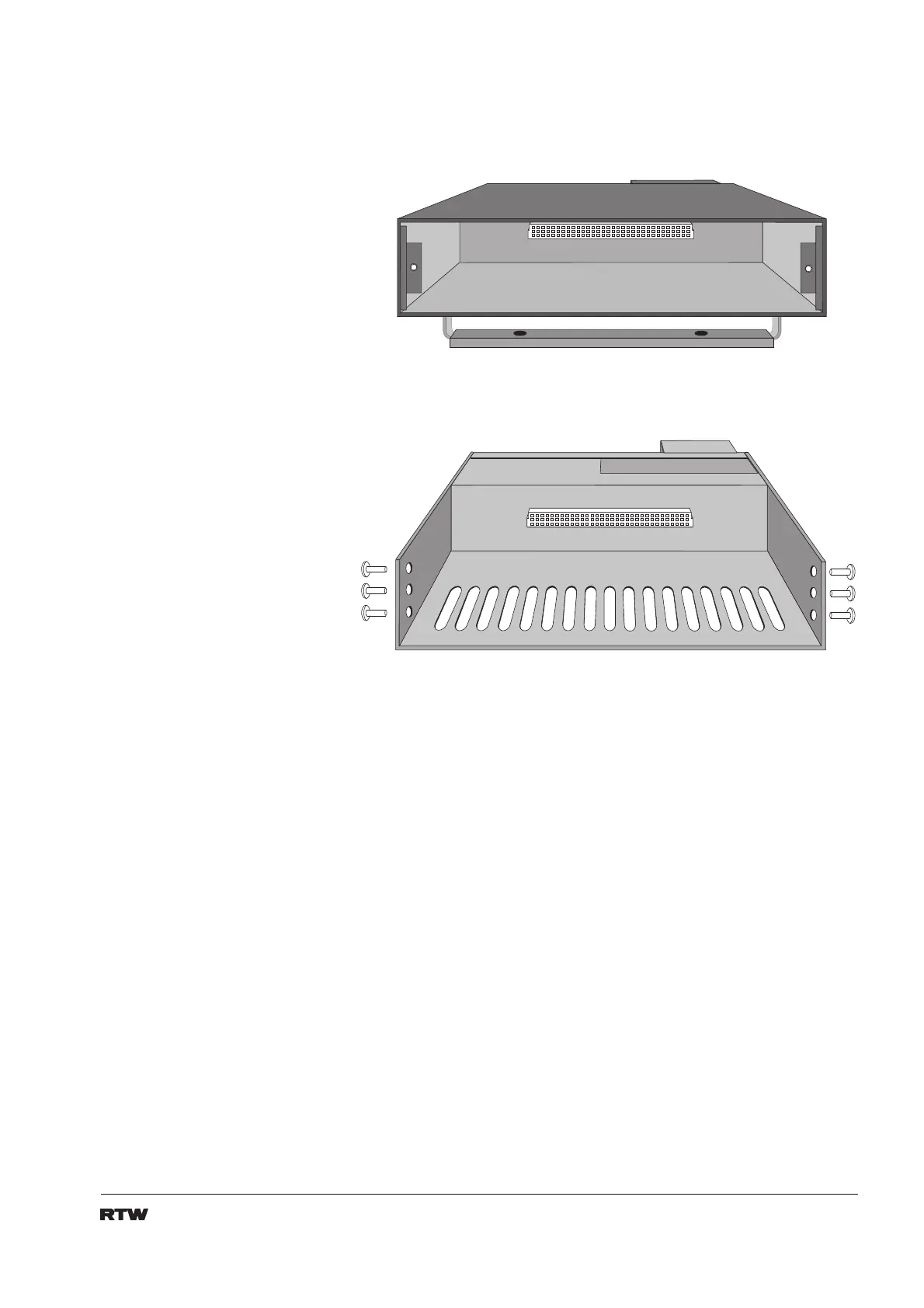

Fig. 5-1: Case 10220 with power pack and swivel mount strap
Fig. 5-2: Bracket 11280 with power pack for mounting in 19/1U rack mount kits
