PortaMonitor Introduction  Page 5-1
The PortaMonitor is a multifunctional display unit housed in a
compact desktop cabinet and features analog and digital inputs.
Functions:
 Stereo vectorscope
 Peak level display
 Correlation display (phase)
 AES/EBU status display
 Real Time Analyzer (certain version only or option)
 Surround Monitor (certain version only or option)
5. Introduction

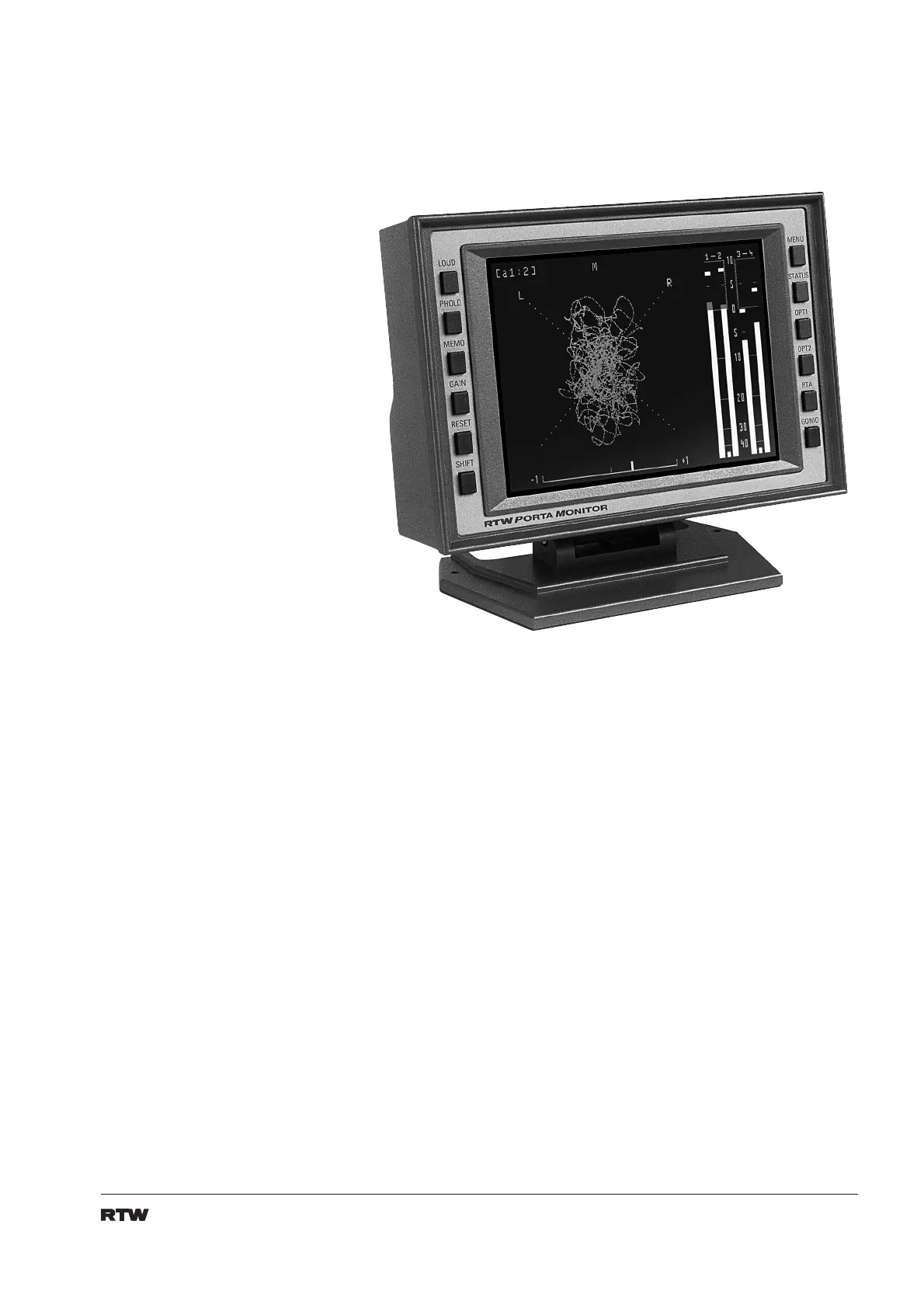

Fig. 5-1: PortaMonitor (type 1064)
