8 RG500 DEsk ChaRGER Manual 9RG500 DEsk ChaRGER Manual
En
NOTE
To remove the RG500 from the RG500 Desk Charger
please make sure that the two buttons on the side
are pressed simultaneously. While charging, the RG500
is locked in and can not be removed without pressing
the two lateral buttons.
6_TEChnICal paRaMETERs
Status display:
The LED lights green when the RG500 Desk Charger
is receiving power. But even then, when the charge
is completed and the RG500 has a battery capacity
of 100%.
While charging the LED lights up red.
Max. output voltage 1000mA±100mA
Input voltage: DC 5±0.3V, Input max. currently:
1000mA±100mA
Charging saturation (25 °C): 100%
Indicates the status indicator:
Not charging: green light
Charging: red light
Full Charged: the red light turns green

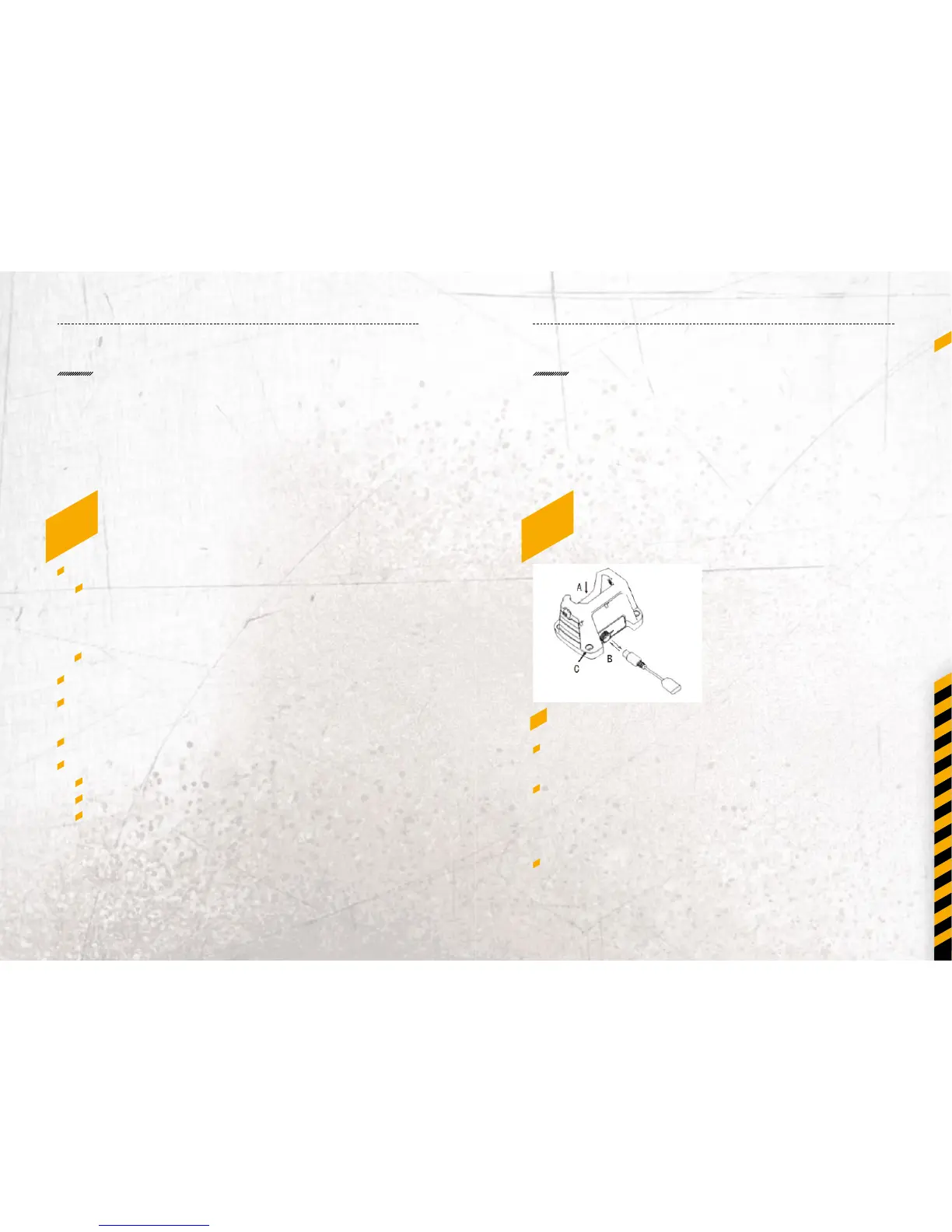

7_DIaGRaM oF assEMbly
7.1_INSTRUCTIONS
Fix the charger in the car by using the 4 xing holes
and screws (C).
Connect the industrial cable to ”B” port, USB port
connect to 5V terminal (or use Micro USB cable).
The green light of charger is on (State to be charged:
Connect successfully).
Keep the charging contact of the device face inside,
pull down the device and till hear a ”click” sound.
Red light is on and indicates that the device is charging.
NOTE
Even if the battery indicator shows 100% and charging
sign disappears but the light is still red, this is normal, it is
still in the charging process. Please continue to charge the
device and wait until the light turns green, and thus is fully
charged.
