Hardware Installation and Reference Guide Installing the Access Point
Do not open the enclosure when the AP is working.
Fasten the device tightly.
3.3 Installing the Access Point
Disconnect the device before install or move it.
Make sure that the screws are of fine quality.
Be sure that the equipment is installed in a place where it is easy to be observed.
1) Loosen screws on the 86-type faceplate that is mounted on the wall. (Skip this step if the faceplate has not been
mounted.)

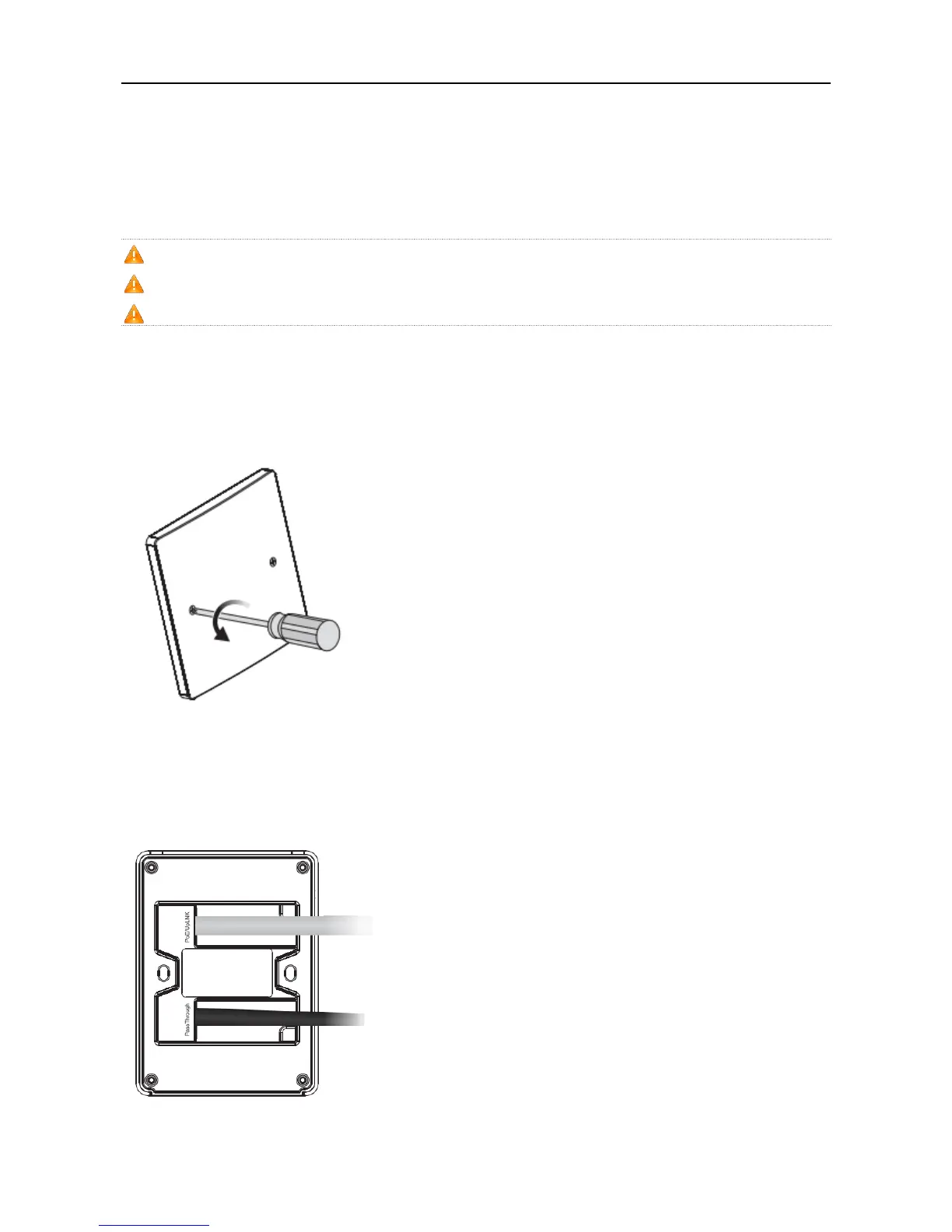

Figure 3-1 Loosen Screws on the Faceplate
2) Connect the uplink cable to the UpLNK port. The cable connected to Pass Through port can be a telephone line or
any cable based on user’s need.
Figure 3-2 Connect Cables to Ports
To Next Page
