Hardware Installation and Reference Guide Installing the Access Point

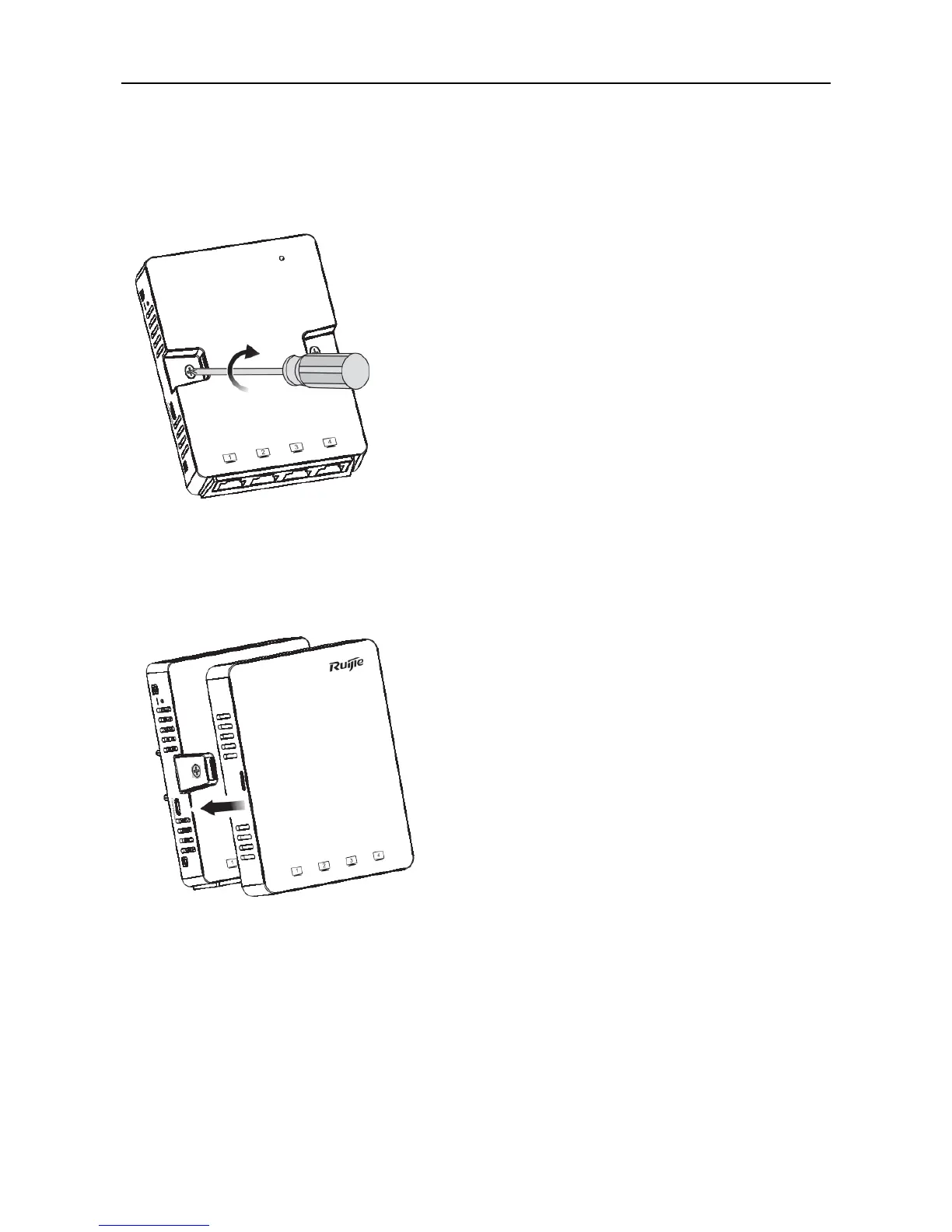

3) Align screw holes on both sides of the device over those on the faceplate. And then tighten screws with a
screwdriver.
Figure 3-3 Tighten Screws with a Screwdriver
4) Install the plate cover in the way as shown in the following figure.
Figure 3-4 Install the Cover
A white cover is provided for each AP. And there are three more options for sale: black, gold and silver.
Figure 3-5 Cover for RG-AP130(L)
