4). Control Inlet Booster Pump (Set b-01 or b-02)
Instruction: If inlet water pressure is less than 0.15MPa, which makes
rinse drawing difficult, a booster pump is suggested to be installed on inlet.
Control mode b-01. When system in regeneration cycle, booster pump is
open, the wiring refers to Figure 3-7.If the booster pump current is bigger
than 5A, system need to install an contactor, the wiring refers to Figure3-8

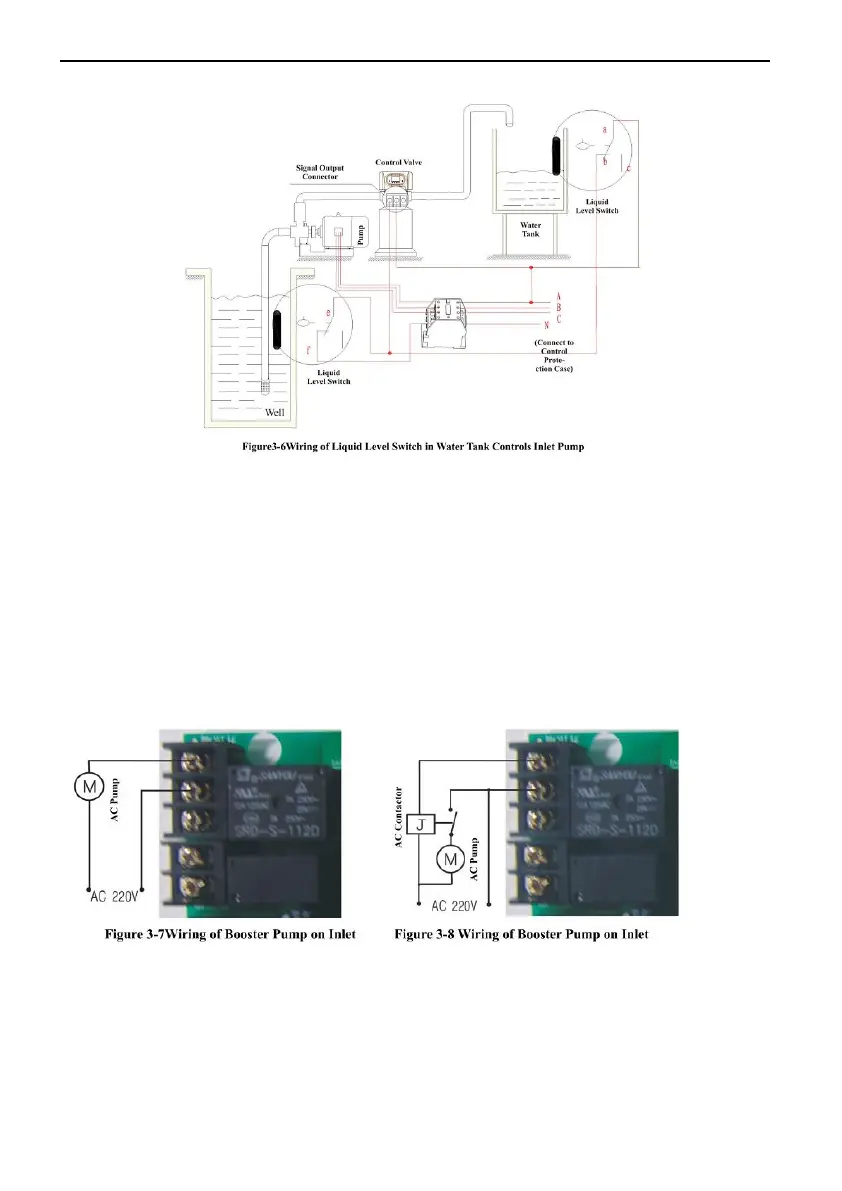

Figure 3-7Wiring of Booster Pump on Inlet Figure 3-8 Wiring of Booster Pump on Inlet
B. Interlock
Instruction:
In the parallel water treatment system, it ensures only one valve in
regeneration or washing cycle and (n-1) valves in service, that is, realizing
the function of supplying water simultaneously and regenerating
