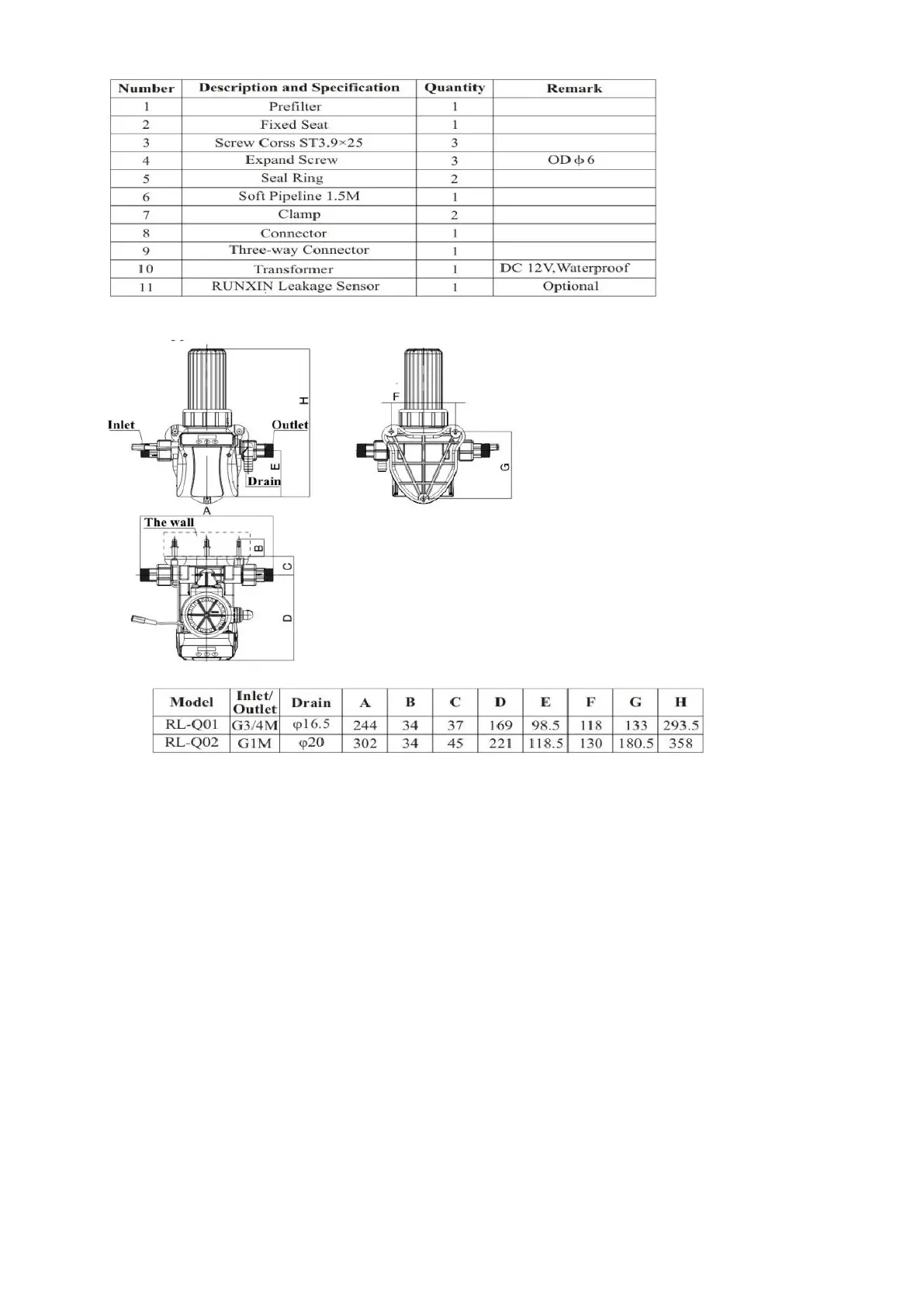

5. Product Appearance and Installation Dimensions
Remark: M: male thread, all dimensions above are in mm.
6. Installation Notes
1. Installation conditions should conform to the requirements of the product work
environment.
2. It should be installed after water meter, but in front of other equipment.
3. It should stay away from hydrops, no exposure to rain or sunlight.
4. If pipeline pressure change suddenly, please install regulator valve.
5. The installation position of drain should lower than product’s position. (Figure at right).
6. The distance between installation location and power socket should shorter than power
line.
7. Please avoid subsurface pipe when drilling during the installation of screw.
8. If you have any questions, please feel free to contact our after-sales service or
professionals.
