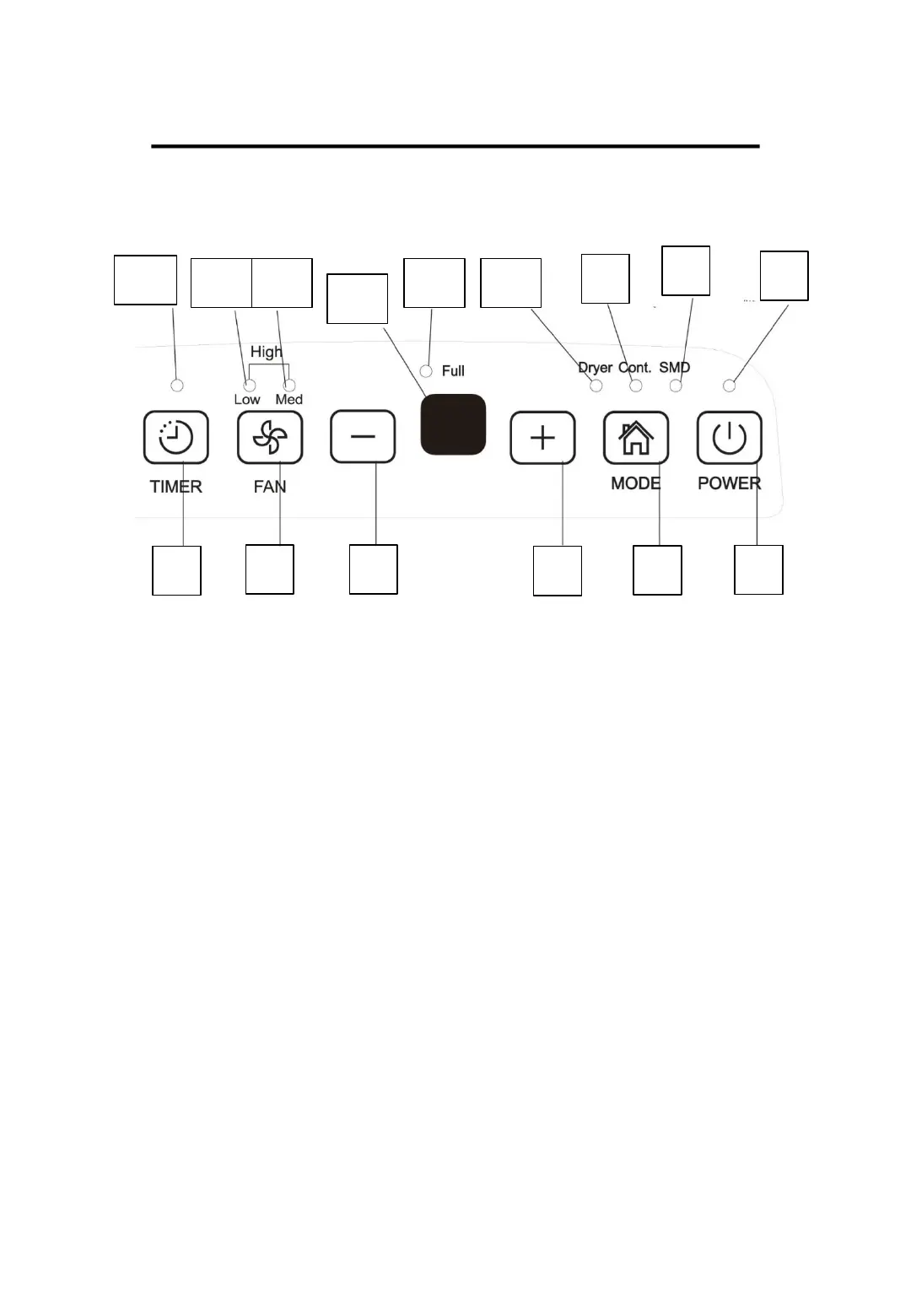

CONTROL PANEL DIAGRAM
1. Power
2. Mode selection button
3. Up control button
4. Down control button
5. Fan button
6. Timer button
7. Power indicator light
8. SMD/Smart dehumidifying
(extraction) mode indicator
light
1
2
3
4
5
6
7
8
Page 6
10
9. Continuous dehumidifier
(extraction) mode indicator
light
10. Dryer mode indicator light
11. Water tank full indicator light
12. LED Display
13. Medium fan speed indicator
light*
14. Low fan speed indicator light*
15. Timer indicator light
15
9
11
12
1314
*when both indicator lights are illuminate then the High fan speed has
been selected
