Door Reversal
3. Remove the small screw at the bottom of the fridge that is on the opposite side
of the bottom hinge. Also remove the adjustable feet and set aside.
4. Unscrew the two screws holding the bottom door hinge and remove it from the
appliance. Then remove the pin and washer from the hinge (use a spanner to
remove the washer). Flip over the hinge bracket and reinsert the washer and

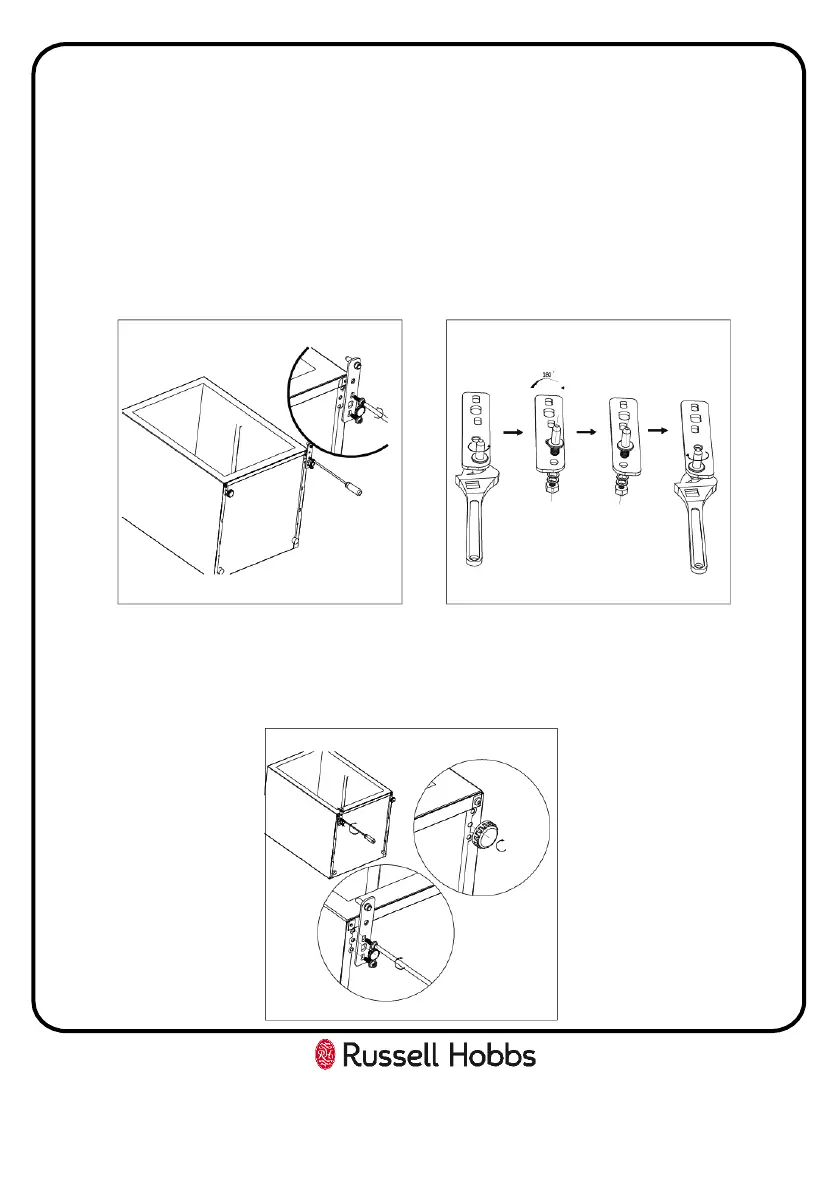

pin (please see the image below).
5. Moving the lower hinge across to the opposite side and fix into position. Place
the door on to the pin of the lower hinge, note care must be taken as the
door will be loose. Once this has been completed screw in the adjustable feet
and the fit the small screw to the opposite side of the fridge.
