Russell Hobbs RHTTLF1 User Guide

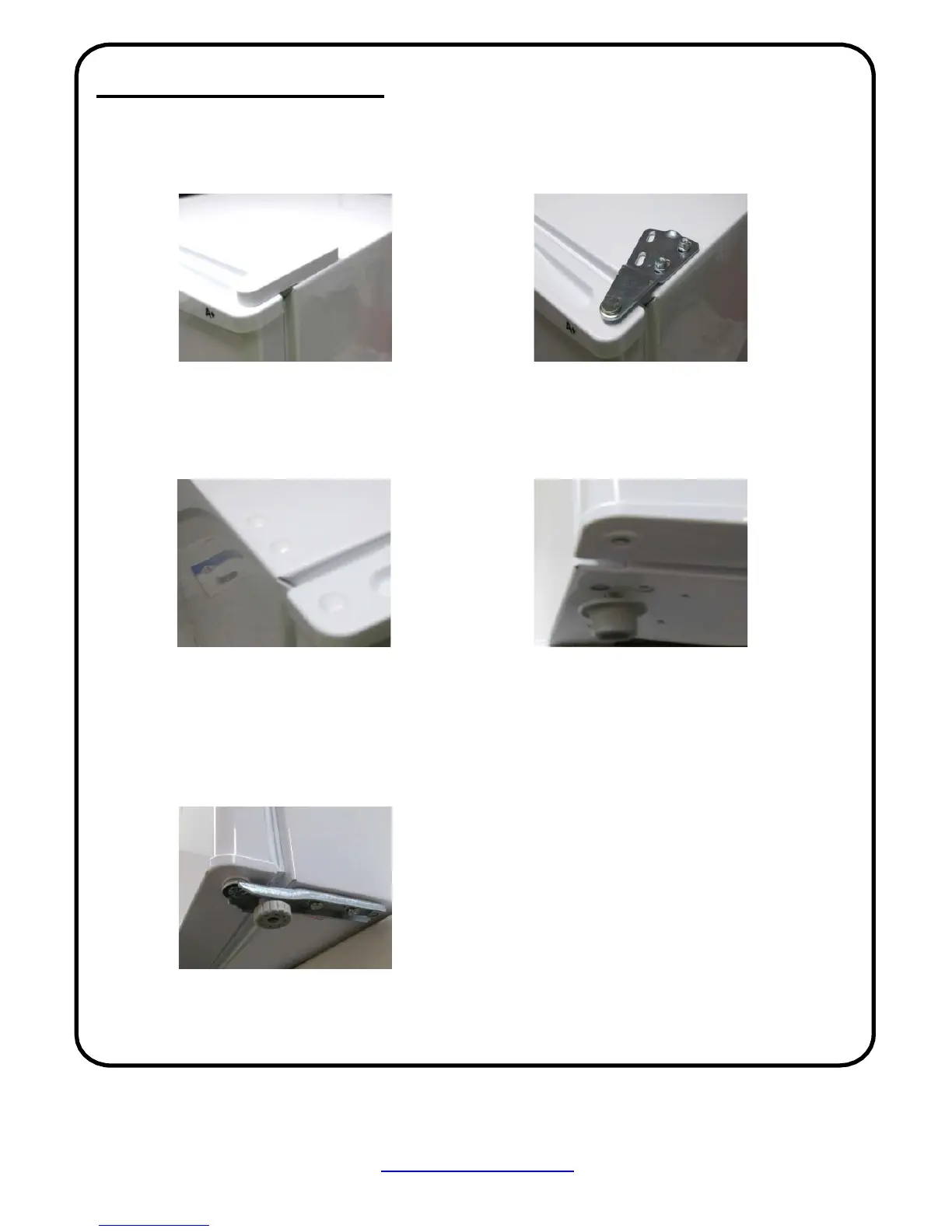

Remove the top plastic
hinge cover and set aside.
Unscrew the two screws
from the metal bracket
and set aside.
Remove the three plastic inserts
on the opposite side of the
fridge and door. Now fix the top
door bracket to this side using
the screws that was previously
removed. Replace the plastic
hinge cover.
Remove the adjustable
foot at the bottom of the
fridge and set aside.
Unscrew the two screws holding the bottom door hinge and carefully moving
it across to the opposite side and fix into position. Care must be taken as the
door will be loose. Once this has been completed screw in the adjustable foot
to the opposite side of the fridge.
Reversing the door
For Customer Services & Spare Parts please call 0845 208 8750 Opening times: Monday - Friday 8am –
6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
11

Russell Hobbs RHTTLF1 Specifications

General

Door hinge	Right
Control type	Not available
Display type	-
Product color	White
Built-in display	No
Shelves material	Plastic
Custom panel-ready	Yes
Appliance placement	Freestanding
Number of vegetable drawers	0
Fridge number of shelves/baskets	1
Noise level	42 dB
Fridge net capacity	43 L
Minimum operating temperature	16 °C
Connected load	- W
Energy efficiency scale	A to G
Annual energy consumption	100 kWh
EAN	5060210925420
Star rating	*
Gross weight	15900 g
Country of origin	China
Dimensions (WxDxH)	472 x 450 x 492 mm
Freezer net capacity	0 L
Operating temperature (T-T)	16 - 43 °C
Package depth	476 mm
Package width	518 mm
Package height	525 mm
Package volume	129448.2 cm³
Package weight	Weight of the packaged product in gram.
Export Control Classification Number (ECCN)	8418215190

Weight and Dimensions

Depth	450 mm
Width	472 mm
Height	492 mm
Weight	14000 g
