Russell Hobbs RHTTLF1 User Manual

11

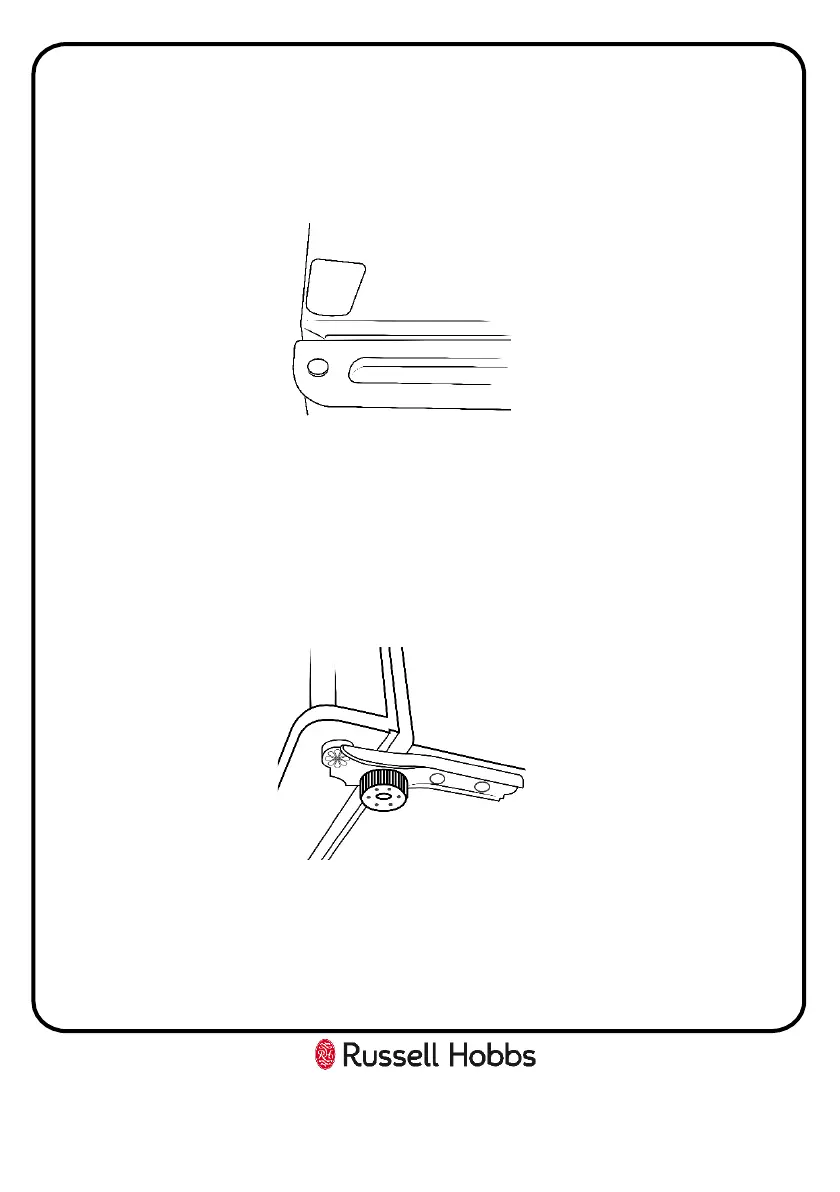

Door Reversal
2. Remove the three plastic inserts on the opposite side of the fridge and door.
Now fix the top door bracket to this side using the screws that was previously
removed. Replace the plastic hinge cover.
3. Remove the adjustable foot at the bottom of the fridge and set aside.
4. Unscrew the two screws holding the bottom door hinge and carefully moving it
across to the opposite side and fix into position. Care must be taken as the door
will be loose. Once this has been completed screw in the adjustable foot to the
opposite side of the fridge. Check that the door opens and shuts correctly
after you have completed the door reversal process.
Note:
• The appliance must now be upright for a minimum of 3 hours before turning
it on.

Russell Hobbs RHTTLF1 Specifications

General

Door hinge	Right
Control type	Not available
Display type	-
Product color	White
Built-in display	No
Shelves material	Plastic
Custom panel-ready	Yes
Appliance placement	Freestanding
Number of vegetable drawers	0
Fridge number of shelves/baskets	1
Noise level	42 dB
Fridge net capacity	43 L
Minimum operating temperature	16 °C
Connected load	- W
Energy efficiency scale	A to G
Annual energy consumption	100 kWh
EAN	5060210925420
Star rating	*
Gross weight	15900 g
Country of origin	China
Dimensions (WxDxH)	472 x 450 x 492 mm
Freezer net capacity	0 L
Operating temperature (T-T)	16 - 43 °C
Package depth	476 mm
Package width	518 mm
Package height	525 mm
Package volume	129448.2 cm³
Package weight	Weight of the packaged product in gram.
Export Control Classification Number (ECCN)	8418215190

Weight and Dimensions

Depth	450 mm
Width	472 mm
Height	492 mm
Weight	14000 g
