Russell Hobbs RHTTLF1B Instruction Manual

11

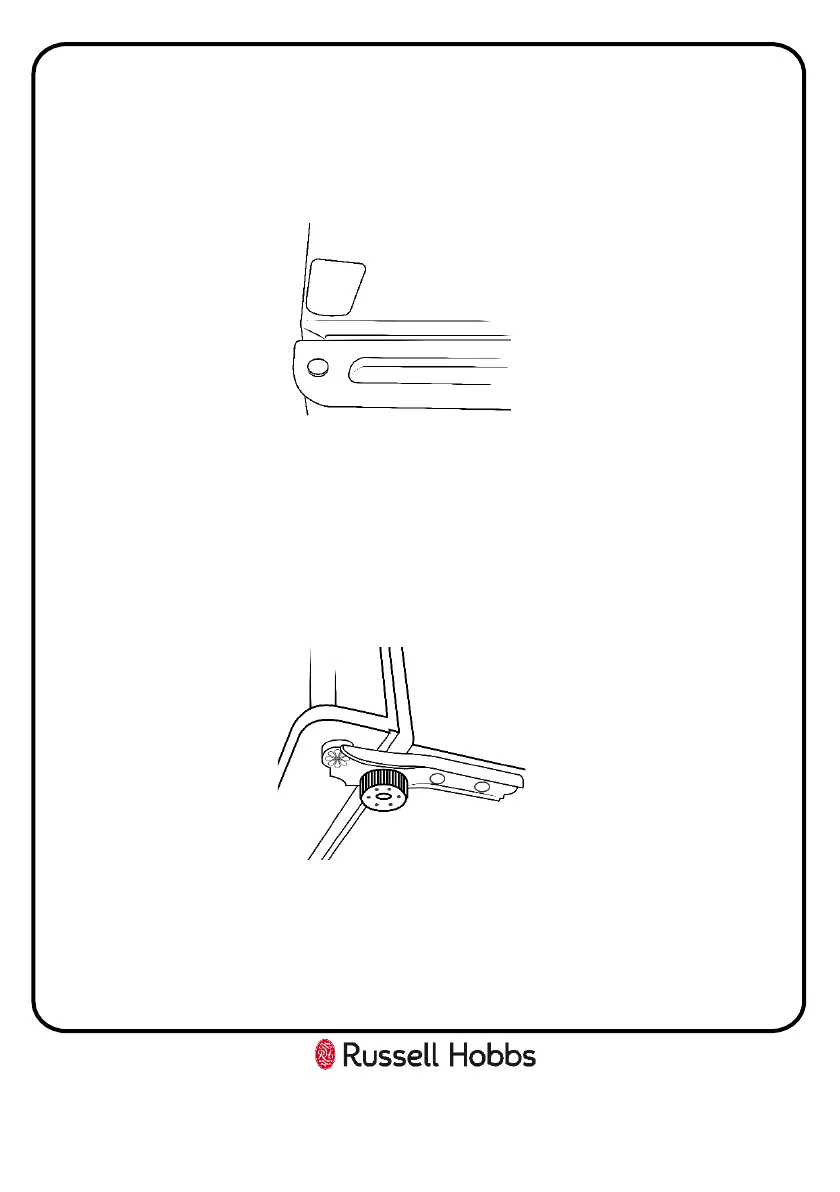

Door Reversal
2. Remove the three plastic inserts on the opposite side of the fridge and door.
Now fix the top door bracket to this side using the screws that was previously
removed. Replace the plastic hinge cover.
3. Remove the adjustable foot at the bottom of the fridge and set aside.
4. Unscrew the two screws holding the bottom door hinge and carefully moving it
across to the opposite side and fix into position. Care must be taken as the door
will be loose. Once this has been completed screw in the adjustable foot to the
opposite side of the fridge. Check that the door opens and shuts correctly
after you have completed the door reversal process.
Note:
• The appliance must now be upright for a minimum of 3 hours before turning
it on.

Russell Hobbs RHTTLF1B Specifications

General

Child lock	-
Door hinge	Right
Product color	Black
Built-in display	No
Reversible doors	Yes
Market positioning	Tabletop
Appliance placement	Freestanding
Noise level	42 dB
Total net capacity	43 L
Number of vegetable drawers	0
Fridge number of shelves/baskets	2
Freezer position	Top-placed
Freezing capacity	- kg/24h
Freezer net capacity	- L
Freezer number of shelves/baskets	1
Storage time during power failure	- h
Connected load	- W
Energy efficiency scale	A to G
Annual energy consumption	100 kWh
Country of origin	China
Package depth	476 mm
Package width	518 mm
Package height	525 mm
Package volume	129448.2 cm³
Export Control Classification Number (ECCN)	8418215190

Weight and Dimensions

Depth	450 mm
Width	470.2 mm
Height	490.2 mm
