Russound SDB - Connection Diagram; Modular Snap Connector Wiring Order

3
MODEL SDB-6.1
S
PEAKER 6
L+ L- R- R+
SPEAKER 5
L+ L- R- R+
SPEAKER 4
L+ L- R- R+
SPEAKER 3
L+ L- R- R+
SPEAKER 2
L+ L- R- R+
SPEAKER 1
L+ L- R- R+
AMP B
L+ L- R- R+
AMP A
L+ L- R- R+
N
EWMARKET, NH MADE IN USA
AUDIO AMPLIFIER
AP-48
POWER
POWER
INPUT
OUTPUT
L+ L- R- R+
L+ L- R- R+
RUSSOUND
LFP-1
OFF A
O
N B
2
AMP/ RECEIVER B
VOLUME
ON / OFF
AMP/ RECEIVER A
ON B ON B
12

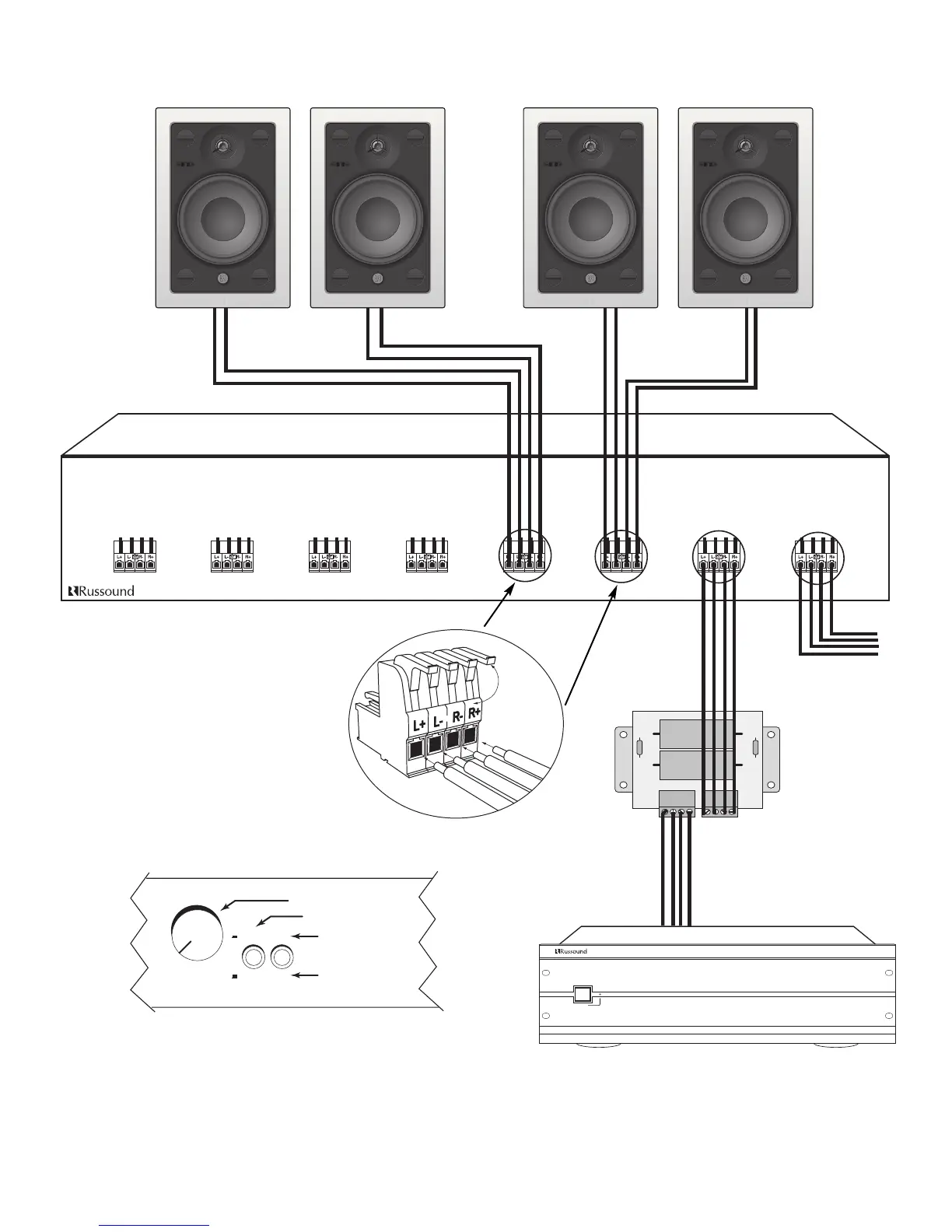

Connection Diagram for Russound SDB Series Dual-Source Speaker Selectors (Not to scale)
WHITE -- L+ (left channel positive)
GREEN -- L- (left channel negative)
BLACK -- R- (right channel negative)
RED -- R+ (right channel positive)
Speakers
SDB-6.1
(back)
Amplifier
Modular Snap Connector (detail)
Modular Snap Connector Wiring Order
LFP-1 (Optional)
Use only with
amplifiers whose
frequency range
extends BELOW
20Hz
To second Amplifier
SDB Series Speaker Selector Front
Detail of dual-source speaker control
