Rutland 913 - Basic Wiring Diagrams; HRS913 Regulator Wiring; HRDX Controller Wiring

Rutland 913 Windcharger Owner’s Manual
Document SM-130 Issue G 26.10.06 12 Marlec Engineering Co Ltd

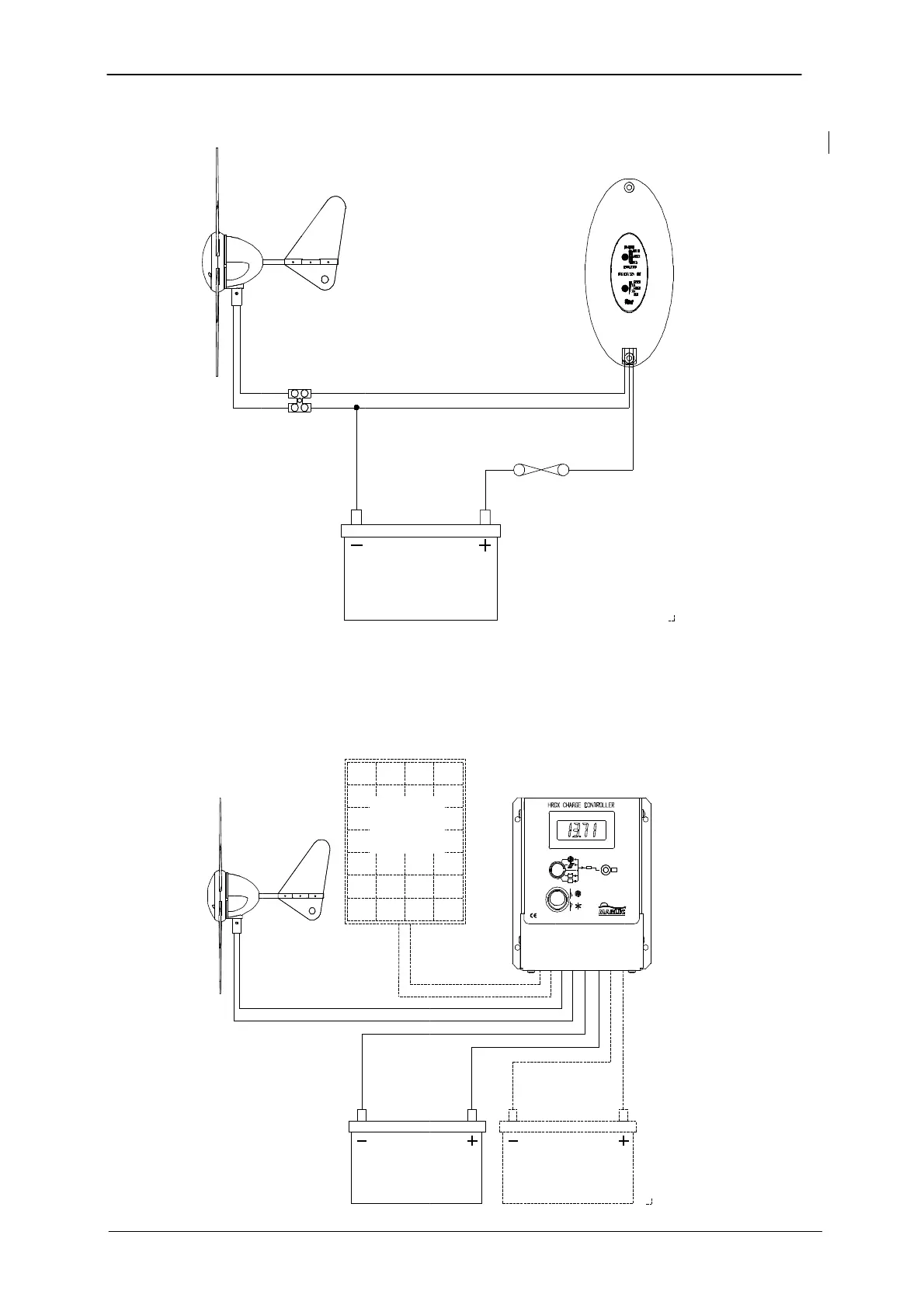

Rutland 913 with HRS913 Regulator Wiring Diagram
Rutland 913 with HRDX Controller
HRS913
Regulator
Solar Panel
Maximum
100 Watts
Rutland 913
Battery Battery
Black
Red
Rutland 913
Red
Black
Brown
Black
Red
Charge Fuse
Battery
HRDX
Controller
