PREPARING TO OPERATE THE LAWNMOWERASSEMBLY
Step 3
Step 4
NOTE! Always fit the grass collection bag before starting the engine.
7 8
2a Lift the upper handle, align it with the lower handle, making sure the cables are not
twisted, and fasten the two handles together by using the bolts and handle tension knobs
included in box.
2b Make sure the rope guide is on right hand side with the 90°bend on top of the handle,
when you stand behind the mower.

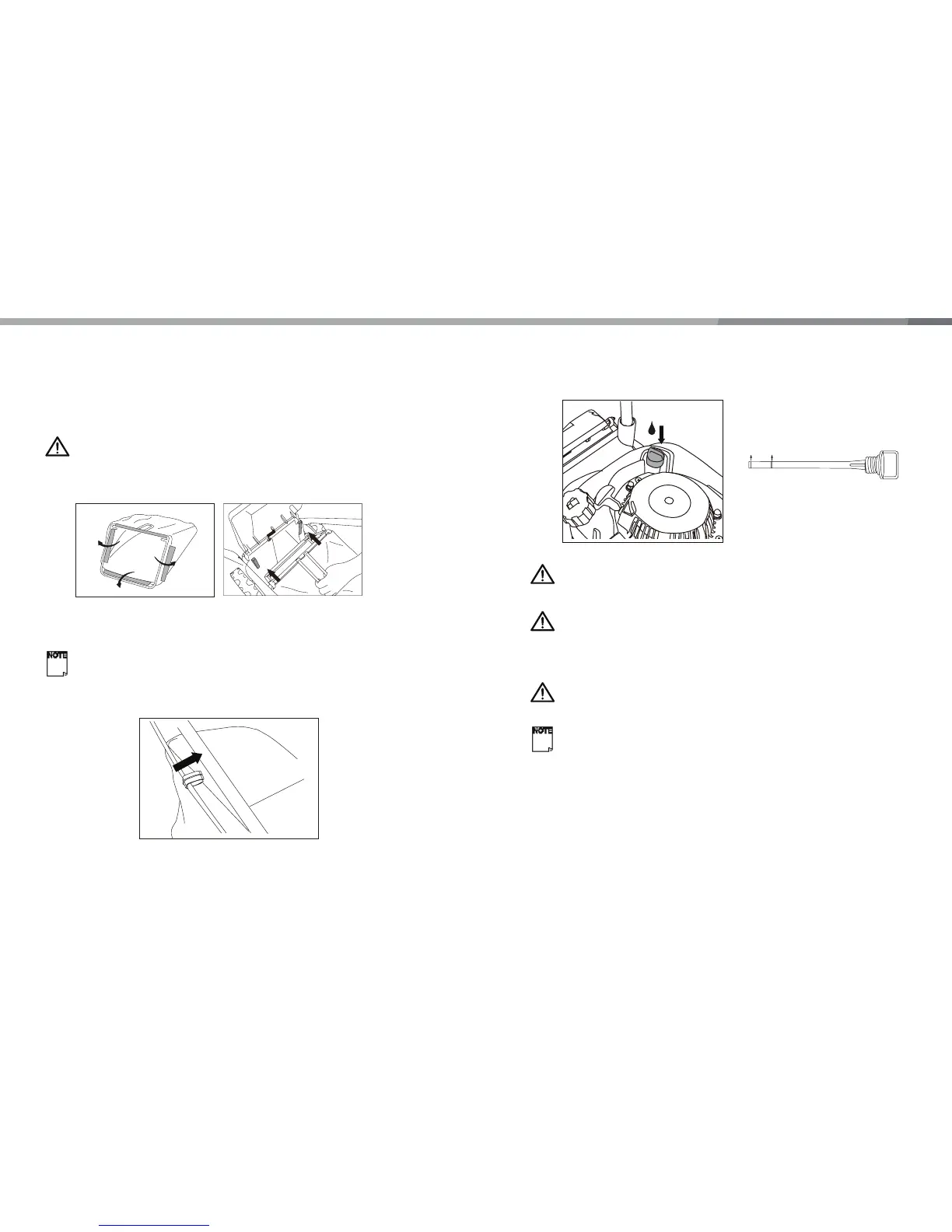

3a. Firstly attach the grass bag to the frame by fixing all plastic hooks.
3b. Raise the safety flap, and hook the collection bag onto the mower.
Release the safety flap.
4. Ensure that the cable clips supplied are used to fix the cable to the Lower Handle.
CAUTION! Make sure the lower and upper handles are firmly connected
Helpline: 01904727504
Email: support@coreservice.co.uk
Website: www.coreservice.co.uk
Helpline: 01904727504
Email: support@coreservice.co.uk
Website: www.coreservice.co.uk
3a 3b
Step 1 - Filling
NOTE! Running the engine with a low oil level will cause engine damage. It is recommend
that a high detergent, premium quality 4-stroke engine oilis used. Using non-detergent oil
can shorten the engine’s service life and using 2-stroke oil will damage the engine.
Check the engine oil level with the engine stopped and the mower on a level surface.
Remove the oil filler dipstick and wipe oil from it with a clean cloth.
Insert the dipstick into the oil filler neck, but do not screw it in.
Check the oil level. The oil level must be between the Min and Max marks on the dipstick.
If near the lower level, fill to upper level with the recommended oil (SAE30 or equivalent).
Do not overfill.
Wipe away any spilt oil.
CAUTION! The following procedures and adjustments must be performed before the
engine is started. Do not attempt to make any of these adjustments while the engine is
running.
CAUTION! Always use high quality detergent oil classified SAE30 oil (or equivalent eg 5W
30,
Often termed as 4 Stroke lawn mower oil). Never use additives with recommended oil. To
prolong the life of your engine it is important that the oil is changed after the first 5 hours
of use.
CAUTION! To prevent engine damage the engine is shipped without oil or petrol. The
engine must be filled with the correct grade of oil and petrol before starting the engine.
Min Max
