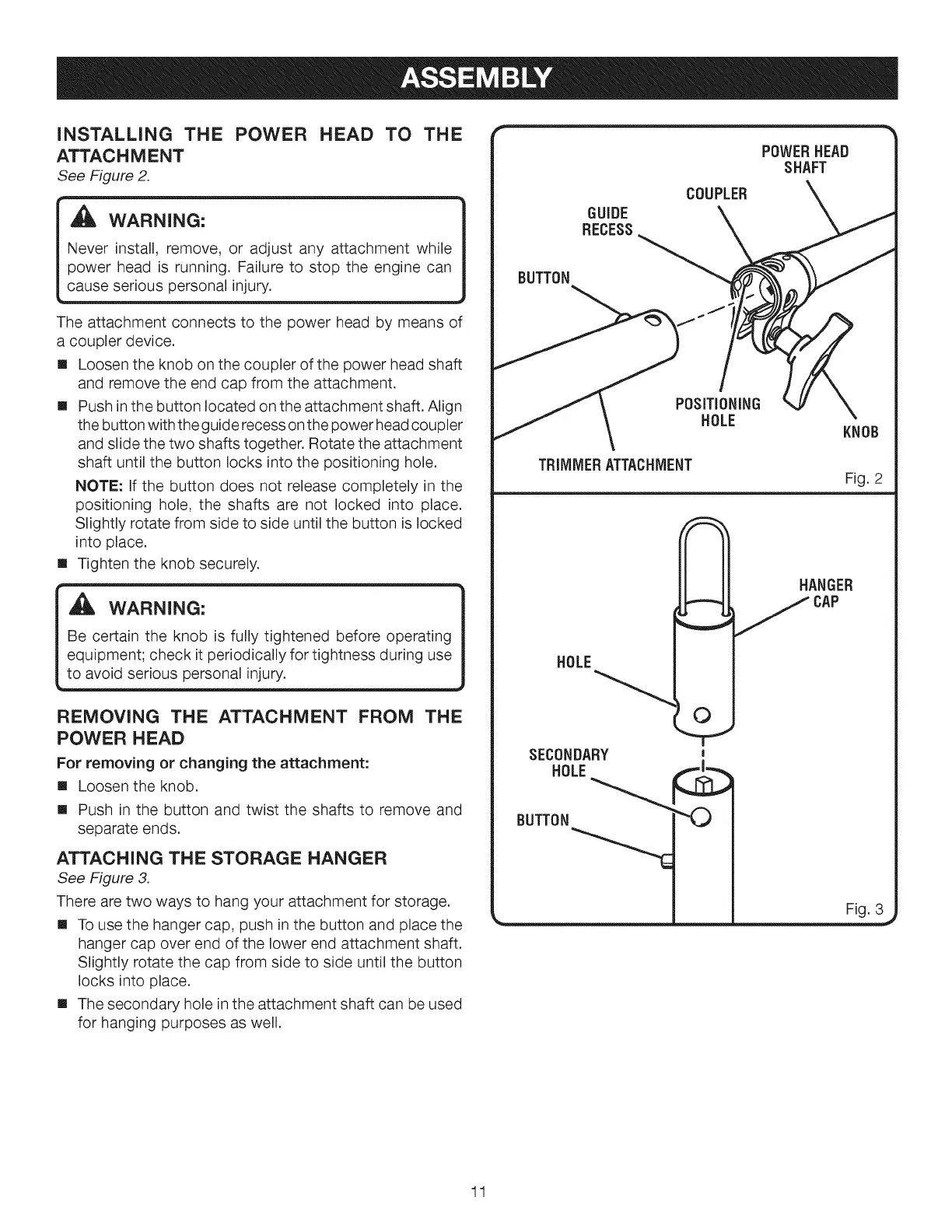

INSTALLING THE POWER HEAD TO THE
ATTACHMENT
See Figure 2.
,_ WARNING:
Never install, remove, or adjust any attachment while
power head is running. Failure to stop the engine can
cause serious personal injury.
The attachment connects to the power head by means of
a coupler device.
[] Loosen the knob on the coupler of the power head shaft
and remove the end cap from the attachment.
[] Push in the button located on the attachment shaft. Align
the button with the guide recess on the power head coupler
and slide the two shafts together. Rotate the attachment
shaft until the button locks into the positioning hole.
NOTE: If the button does not release completely in the
positioning hole, the shafts are not locked into place.
Slightly rotate from side to side until the button is locked
into place.
[] Tighten the knob securely.
,_ WARNING:
Be certain the knob is fully tightened before operating
equipment; check it periodically for tightness during use
to avoid serious personal injury.
REMOVING THE ATTACHMENT FROM THE
POWER HEAD
For removing or changing the attachment:
[] Loosen the knob.
[] Push in the button and twist the shafts to remove and
separate ends.
ATTACHING THE STORAGE HANGER
See Figure 3.
There are two ways to hang your attachment for storage.
[] To use the hanger cap, push in the button and place the
hanger cap over end of the lower end attachment shaft.
Slightly rotate the cap from side to side until the button
locks into place.
[] The secondary hole in the attachment shaft can be used
for hanging purposes as well.
GUIDE
RECESS
COUPLER
POWERHEAD
SHAFT
\
BUTTON
POSiTiONiNG
HOLE
TRIMMERATTACHMENT
KNOB
Fig. 2
HANGER
CAP
HOLE
SECONDARY i
BUTTON
_ m
11
