17 - English

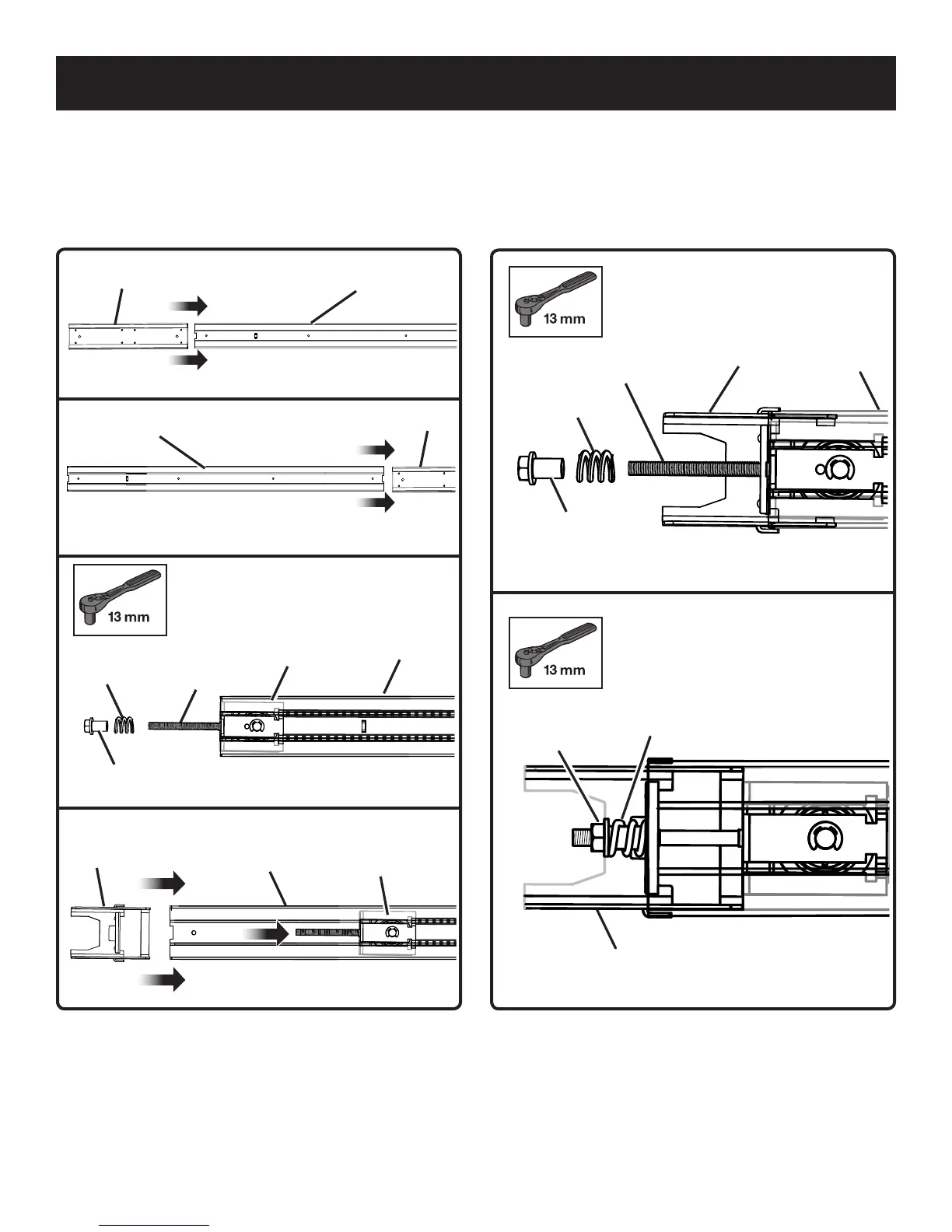

Move the front pulley toward the middle of the front rail.
Insert the edge of the front brace into the front rail. Slide
together until brace clicks in place. If you cannot get the
brace to fit by hand, try gently tapping it with a rubber
mallet until it is snug.
Sleeve
Sleeve
Front
Rail
Pulley
Rod
Tension
Nut
Spring
Fig. 15
Fig. 13
Fig. 14
Fig. 16
Front
Rail
Intermediate
Rail
Front
Pulley
Front
Pulley
Front
Brace
Front
Rail
ASSEMBLY
Spring
Fig. 17
Fig. 18
Tension
Nut
Front
Brace
Front
Rail
Pulley
Rod
Tension
Nut
Spring
Front
Brace
Pull the front pulley forward and slide the rod through the
hole in the brace.
Install spring and tension nut onto pulley rod.
Move the inner and outer trolley to the middle of the rail
assembly.
