Ryobi GD200 - Page 19

19 - English
Fig. 25
Fig. 23
Front of
Power Head
Front of
Power Head
Nut
Nut
Bracket
Stud
Stud
Stud
Stud

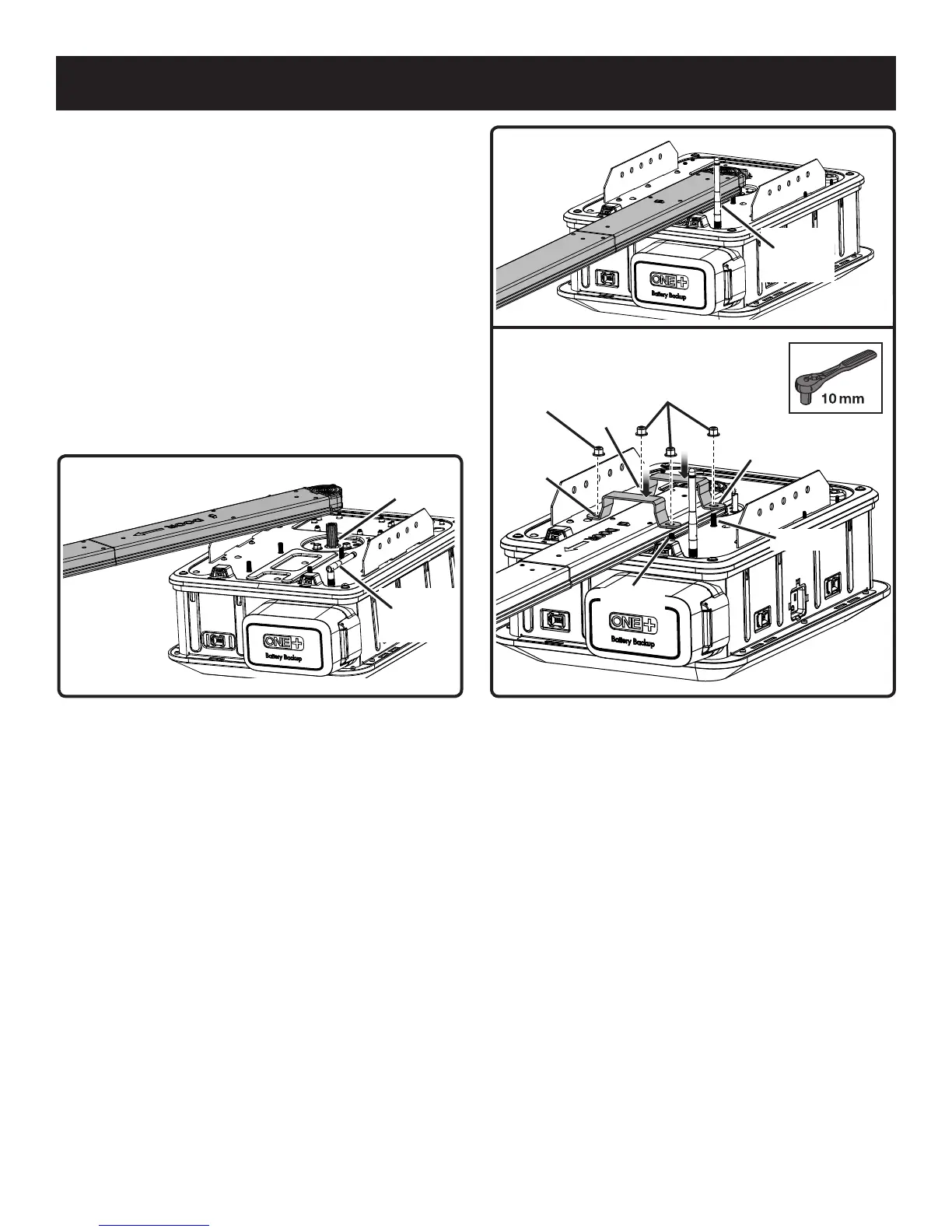

Hold the rail assembly above the power head with arrow
pointing toward the front of the power head and the
garage door.
Rotate the rail assembly until the opening in the rail is
aligned with the sprocket.
Lower the end rail onto the sprocket with the channel
(open end) facing down. Slowly rotate the rail to the
correct orientation as you lower it into position.
When installed correctly, the teeth on the sprocket should
engage the rail assembly and the rail should sit flat on the
power head.
Place the brackets on top of the studs, and over the end
rail.
Place nuts onto the studs and tighten using a 10 mm
socket. Do not overtighten.
Wi-Fi
Antenna
Wi-Fi
Antenna
Sprocket
Fig. 24
ASSEMBLY
