Ryobi OLT1825 - Replacing the Spool

11
Maintenance
2
1
1
2
1
2
3
1
2
4
3
4
5

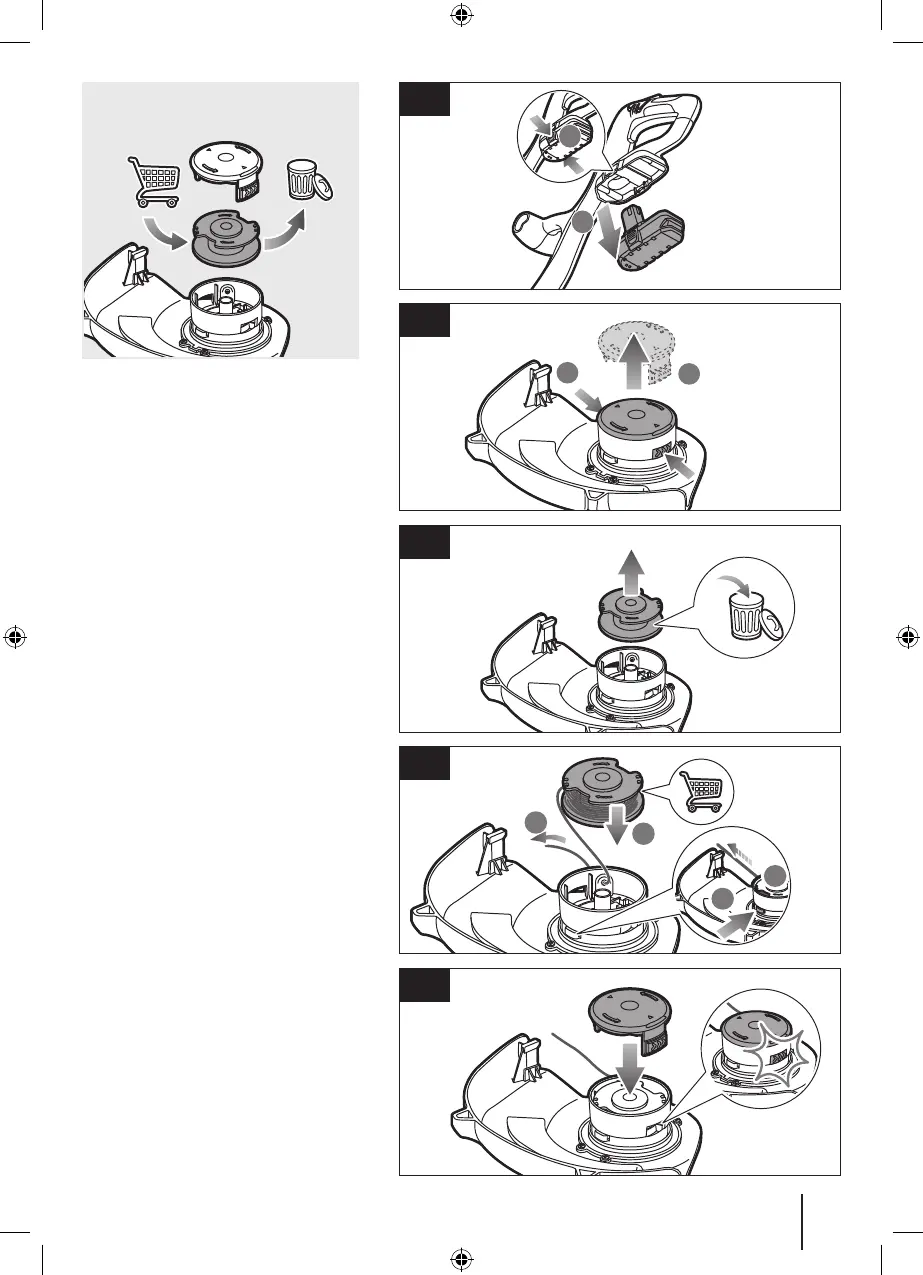

REPLACING THE SPOOL
1. Press the latches on the battery pack.
Remove the battery pack from the
product.
2. Push the tabs on the side of the spool
retainer. Remove the spool cover.
3. Remove the old spool.
4. To install the new spool, make sure that
the line is captured in the slot on the new
spool. Thread the line of the new spool
into the eyelet. Attach the new spool.
Press the tab on the side of the spool
retainer. Pull the line extending from the
string head.
5. Insert the tabs of the spool cover into the
slots. Push down the spool cover until it
clicks into place.
