ADJUSTMENTS

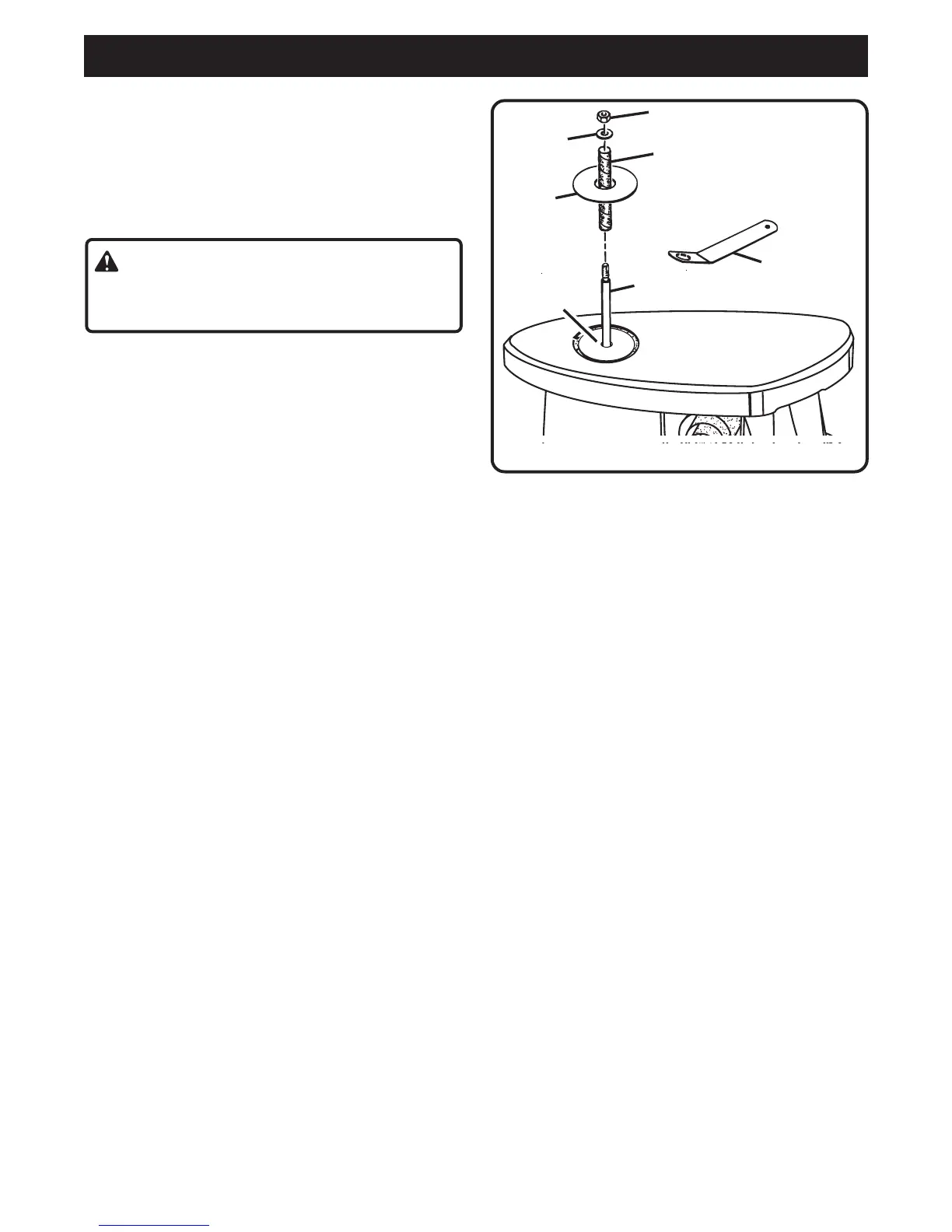

Fig. 5
THROAT
PLATE
HEX NUT
UPPER
SPINDLE
WASHER
SANDING
SLEEVE
SPINDLE
WRENCH
LOWER
SPINDLE
WASHER
INSTALLING 1/2 INCH (12.7 mm) SANDING
SLEEVES
See Figure 5.
Follow these directions to install 1/2 inch (12.7 mm)
sanding sleeves.
■ Unplug the sander.
WARNING:
Failure to unplug the tool could result in accidental
starting causing serious injury.
■ Place the lower spindle washer over the spindle, fin
side down.
NOTE: Always install the fin side of the washer
down. The fins help push dust through the dust
exhaust port opening, preventing buildup of dust.
Dust in this area may cause the oscillating motion to
stop. Always use the lower spindle washer with all
sanding sleeves.
■ Install the throat plate with the .5 in. (13 mm) opening.
■ Install the 1/2 in. (12.7 mm) sanding sleeve on the
spindle shaft.
NOTE: Mount the sanding sleeve directly onto the
spindle shaft. A rubber spindle is not required.
■ Install the 5/8 in. (15.9 mm) upper spindle washer
and hex nut.
■ Grasp and hold the sanding sleeve on the spindle.
■ Tighten the hex nut using the wrench provided.
NOTE: Tighten the hex nut securely. Do not
overtighten.
■ Return the wrench to the storage area.
