OPERATION
MODE BATTERY PACK
RED
LED
GREEN
LED
ACTION
Power
Without
battery pack
ON
OFF Ready to charge battery pack.
Testing
Hot battery pack
Flashing
OFF
When battery pack reaches cooled temperature, charger
begins charge mode.
Cold battery pack
When battery pack reaches warmed temperature, char-
ger begins charge mode.
Deeply discharged
Charger pre-charges battery until normal voltage is
reached, then begins charge mode.
Defective
Defective
Fading
OFF Battery pack or charger is defective.
•Ifdefective,trytorepeattheconditionsasecondtimebyremovingandreinstallingthebatterypack.IftheLEDstatusrepeatsa
second time, try charging a different battery.
•Ifadifferentbatterychargesnormally,disposeofthedefectivepack(seeMaintenance section).
•Ifadifferentbatteryalsoindicates“Defective,”thechargermaybedefective.
Charging
Charging
ON
Flashing
Battery is being charged.
Charged
Battery full OFF
ON
Charging is complete; charger maintains charge mode.
Energy
Save Mode
Battery full /
Energy Save mode
OFF
Fading
Battery pack is fully charged and charger is in Energy Save
mode.

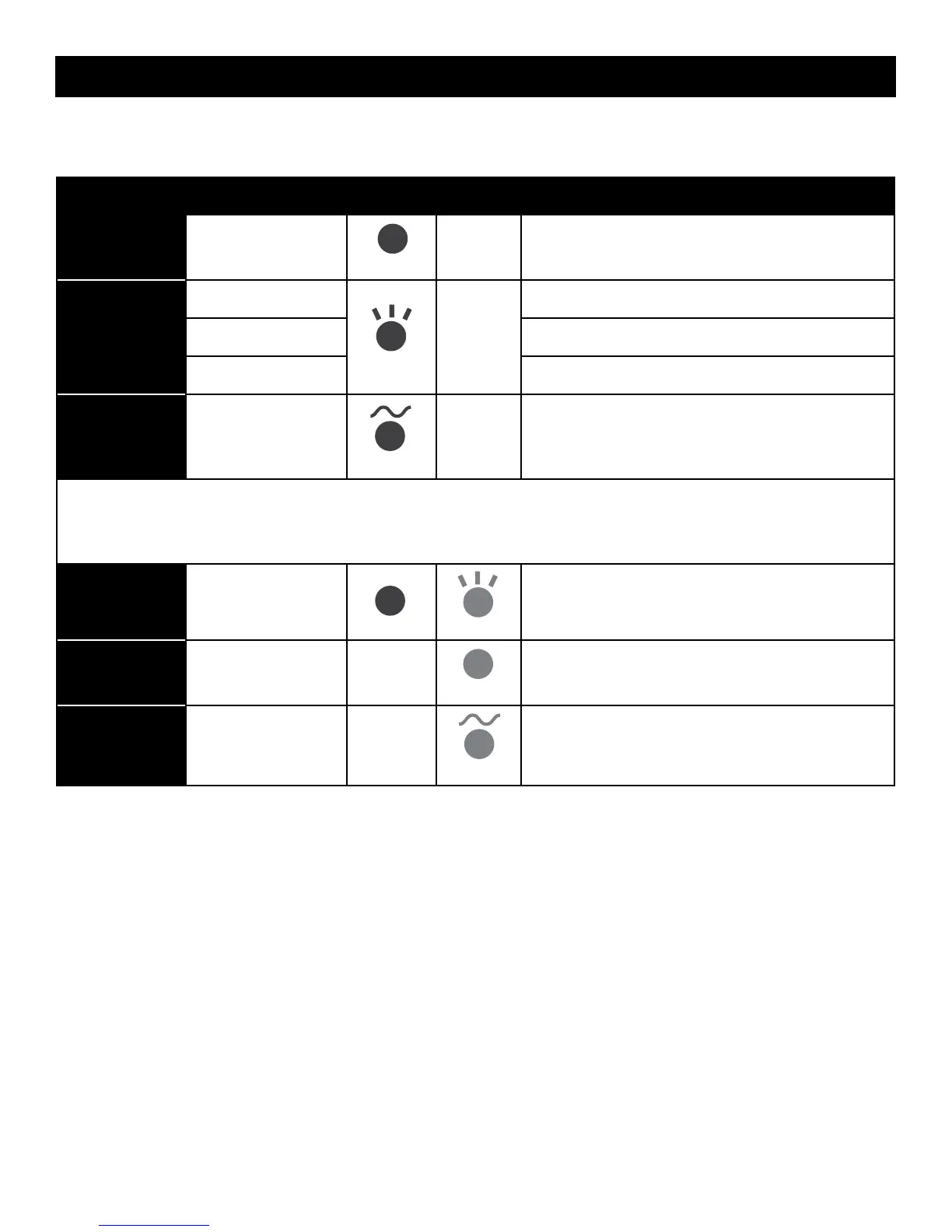

LED FUNCTION OF CHARGER
See Figure 4, page 7.
