Ryobi RY28140 - Page 6

6
Ryobi 26
cc
StRing tRimmeRS
model numbeRS – Ry28100, Ry28120 & Ry28140
17
16
15
14
13
10
9
8
11
12
6
4
7
3
2
1
5
Key Service
No. Number Description Qty.
Key Service
No. Number Description Qty.
1 940726013 Logo Label ...................................................................................1
2 940657032 Warning Label ..............................................................................1
3 308038010 Curved Shaft Assembly ...............................................................1
4 120642001 Washer and Bolt Assembly .........................................................1
5 308052001 Curved Shaft Grass Deflector ......................................................1
6 310643003 String Head Housing ...................................................................1
7 679958001 Spring ..........................................................................................1
8 310412003 Spool ...........................................................................................1
9 308042002 Spool Retainer .............................................................................1
10 309562005 String Head Assembly (Inc. Key Nos. 6-8) ..................................1
11 518019002 Hanger Cap .................................................................................1

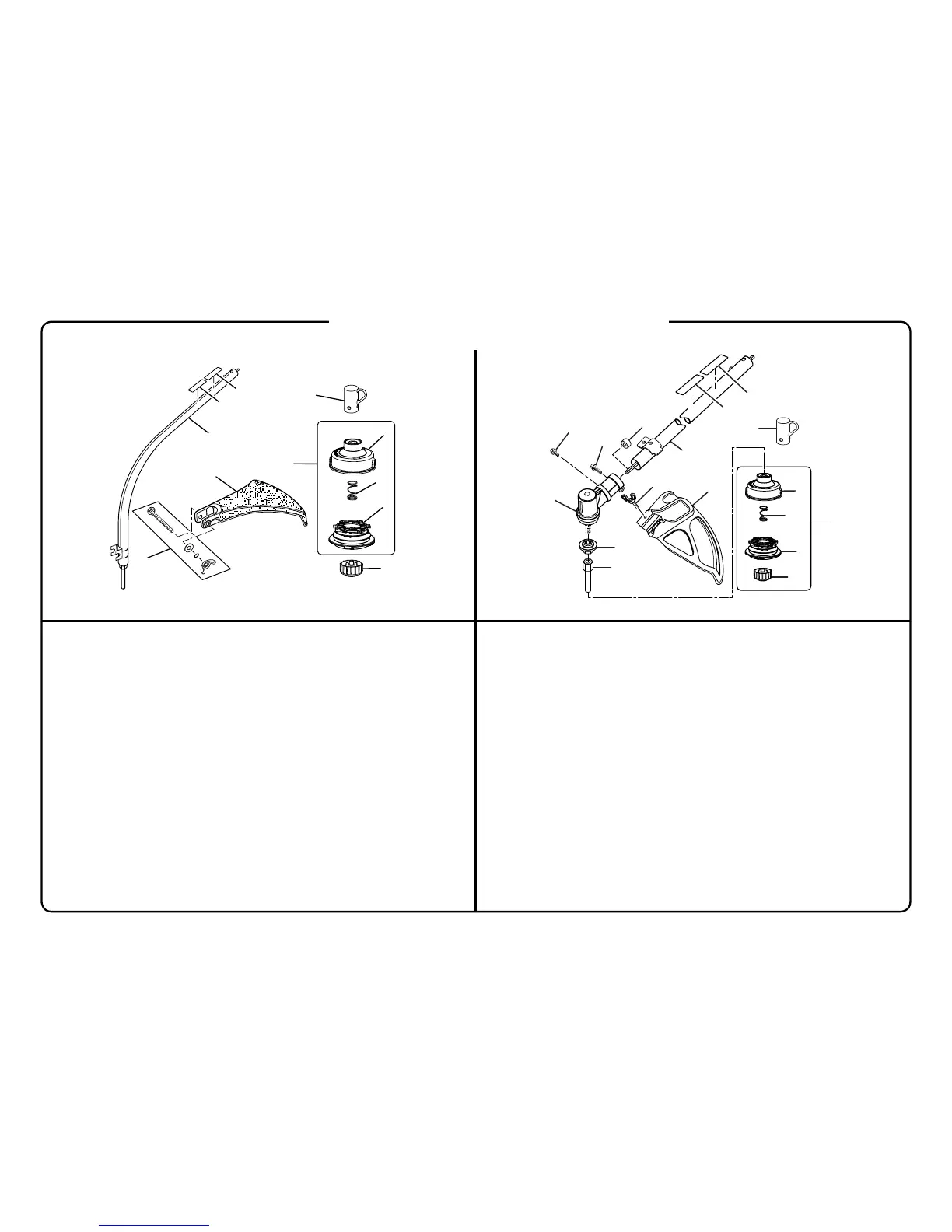

FIGURE C
MODEL
RY28140
1 940726013 Logo Label ...................................................................................1
2 940657032 Warning Label ..............................................................................1
3 308035038 Straight Shaft Assembly .............................................................. 1
4 660641001 Screw (10-24 x 5/8 in.) ................................................................ 1
5 518019002 Hanger Cap .................................................................................1
6 518367001 Spacer .........................................................................................1
7 660642001 Screw (1/4-20 x 1-1/4 in.) ............................................................ 1
8 308210009 Gear Head ...................................................................................1
9 678011002 Washer .........................................................................................1
10 678019002 Arbor ............................................................................................ 1
11 660886001 Wing Screw (1/4-20 x 1-1/4 in.) ................................................... 1
12 308473001 Grass Deflector Assembly (Inc. Key No. 11) ............................... 1
13 310643003 String Head Housing ...................................................................1
14 679958001 Spring ..........................................................................................1
15 310412003 Spool ...........................................................................................1
16 308042003 Spool Retainer ............................................................................. 1
17 309562005 String Head Assembly (Inc. Key Nos. 13-15) .............................. 1
10
6
7
8
9
4
5
3
2
1
11
FIGURE C
MODEL
RY28120
