TESTING CHARGING PORT AND INTERLOCK

1. Turn mower on.

2. Turn headlights on.

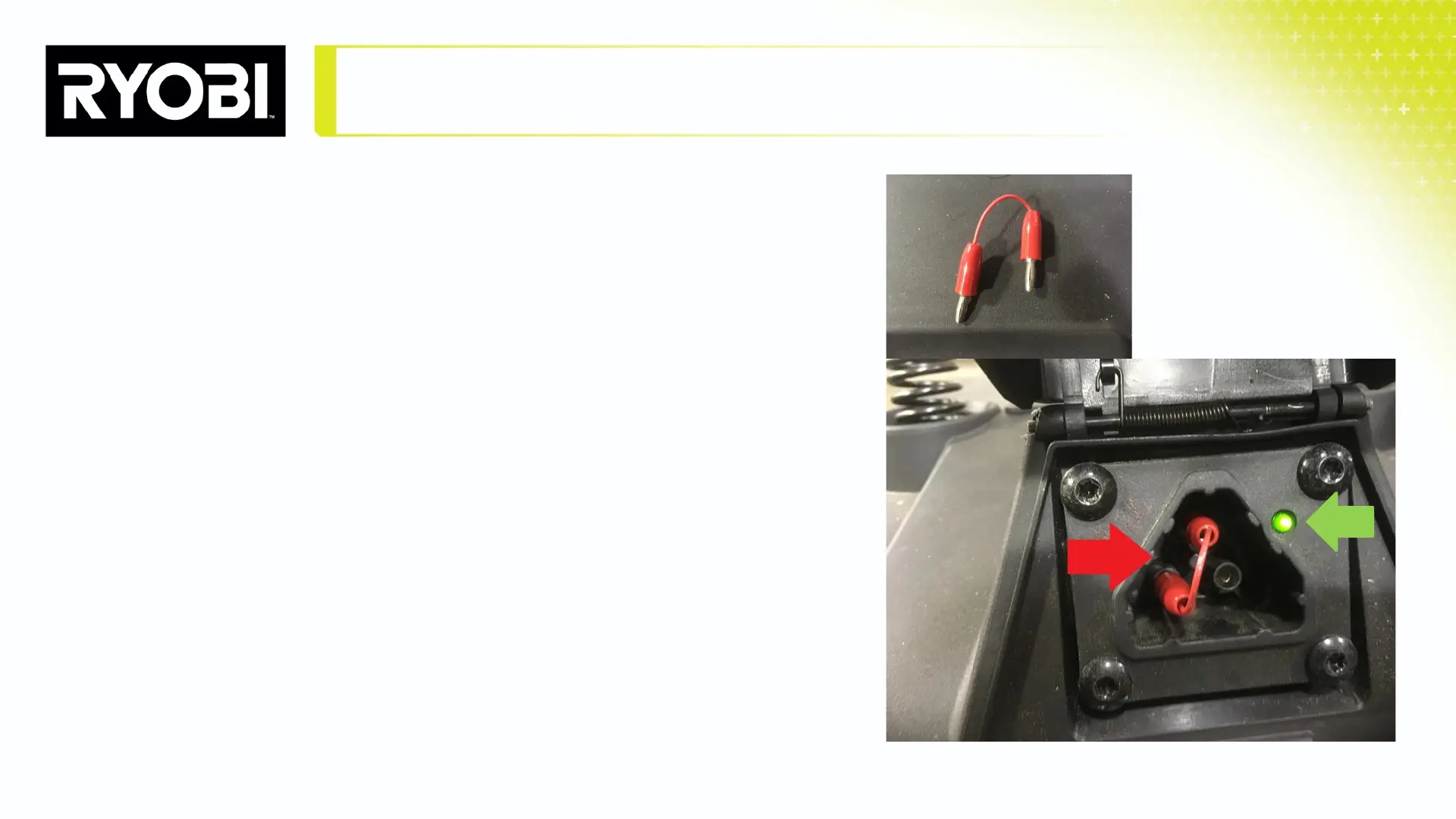

3. Connect a jumper wire as shown. (any insulated wire will do.)

4. Green charge LED should glow as shown.

5. Mower should shut down (relay clicks, headlights go out).

6. Remove the jumper wire.

7. After a few seconds, the mower should come back on(relay clicks)

and headlights light again.
