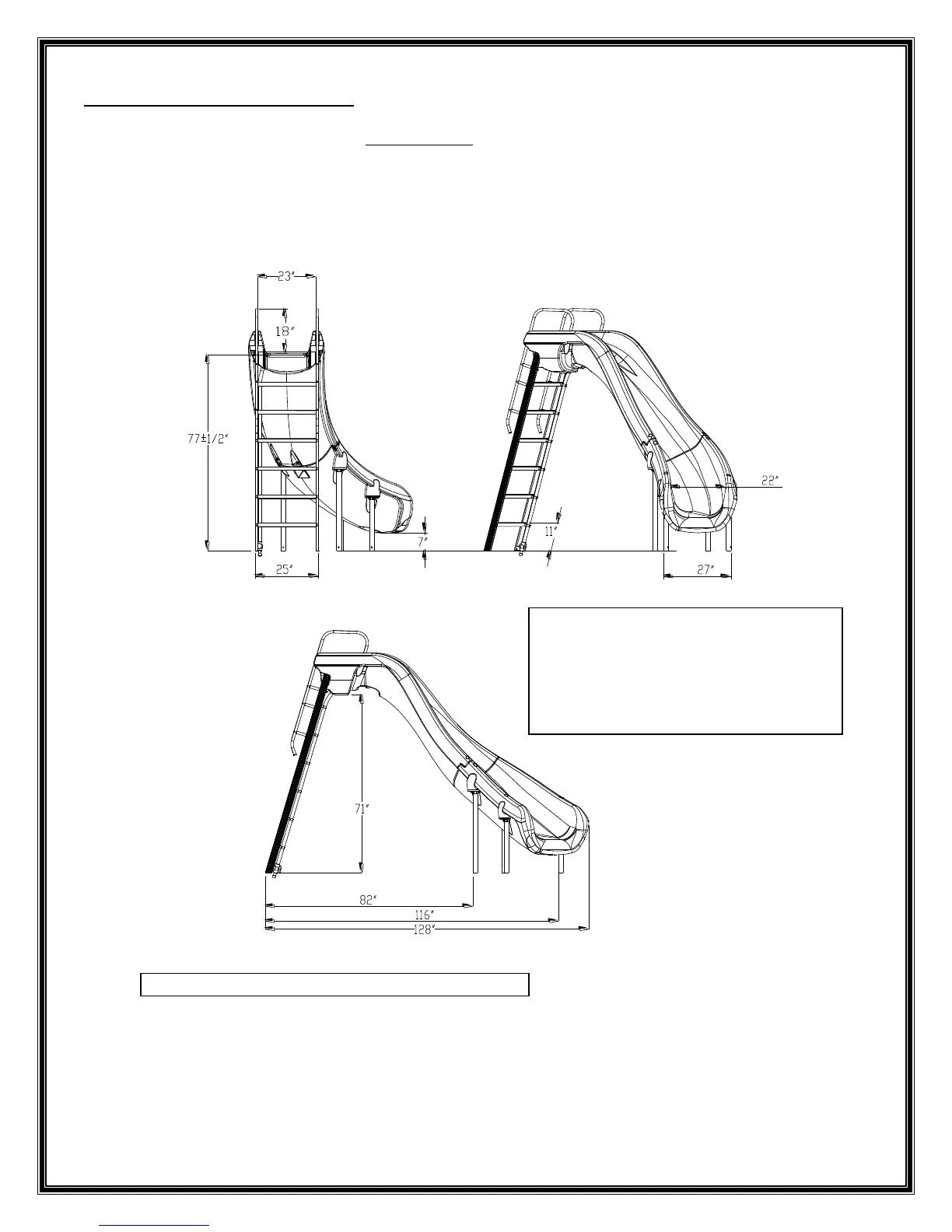

ROGUE2 SLIDE LAYOUT
The purpose of this footprint is to serve as a GUIDELINE ONLY for approximate placement of the slide relative to the pool’s
edge. The actual dimensions after installation may vary according to the slope of the deck and the angle that the slide is
oriented relative to the pool wall. YOU MUST FOLLOW THE INSTALLATION INSTRUCTIONS AS PRINTED IN
THIS MANUAL.
ROGUE 2 right curve slide shown, left curve is mirror image of right curve.
SEE APPENDICES (pg.17) for additional slide layout details.
Note: When installing the slide in the
deck, all height dimensions will be
reduced by at least 3 inches, or by
the depth the slide is installed below
deck grade.
For SI: 1 degree = 0.017 rad, 1 inch = 25.4 mm, 1 foot = 304.8 mm
