S.R.Smith Rogue 2 - Slide Deck Anchor Flange Kit Parts; Tools Required for Slide Assembly

5

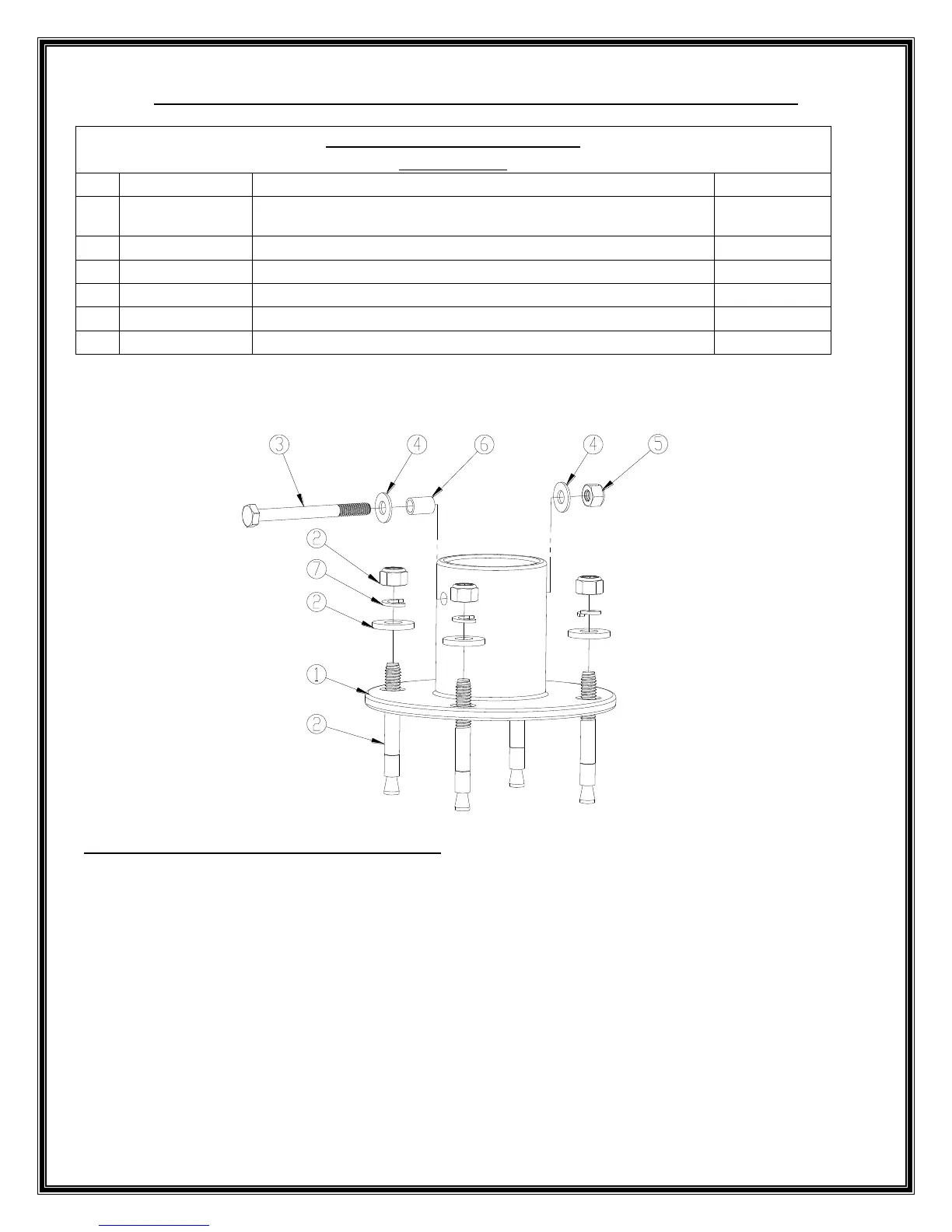

SLIDE DECK ANCHOR FLANGE KIT PARTS (SOLD SEPERATELY)
SLIDE DECK ANCHOR FLANGE KIT
(75-209-5866)
1
75-209-5000
Aluminum Flange Anchor
4 ea.
2
05-162
5/16 -18 UNC x 2 3/4 STUD w/ FLAT
WASHER & LOCK NUT
16 ea.
3
05-14-123
1/4-20 UNC x 2 3/4 HHCS
4 ea.
4
04-14-111
1/4"ID x 5/8"OD FLAT WASHER
8 ea.
5
05-14-117
1/4-20 UNC HEX NYLON LOCK NUT
4 ea.
6
01-500
3/8" O.D. ALUMINUM BUSHING
4 ea.
7
5-306
3/8” O.D. Aluminum Bushing
16 ea.
* Ref #s are shown as (#__ ) in these ASSEMBLY AND INSTALLATION INSTRUCTIONS
TOOLS REQUIRED FOR SLIDE ASSEMBLY:
 PVC glue
 7/32” Allen Wrench
 Electric Drill, Phillips Drive, ½ Hex Socket Drive
 Ratchet with 7/16”, 1/2" and 3/8” sockets
 7/16”, 1/2” and 9/16” wrench
 Hammer drill with 1/4" (6 mm) masonry bit
 Small Level
 Tape
 9/16” Deep Socket
 3/8” (9.5 mm) Drill Bit
 ¼” (6 mm) Drill bit
 Pencil or marker
 Loctite® 242 Thread Locking Compound
Figure 2
