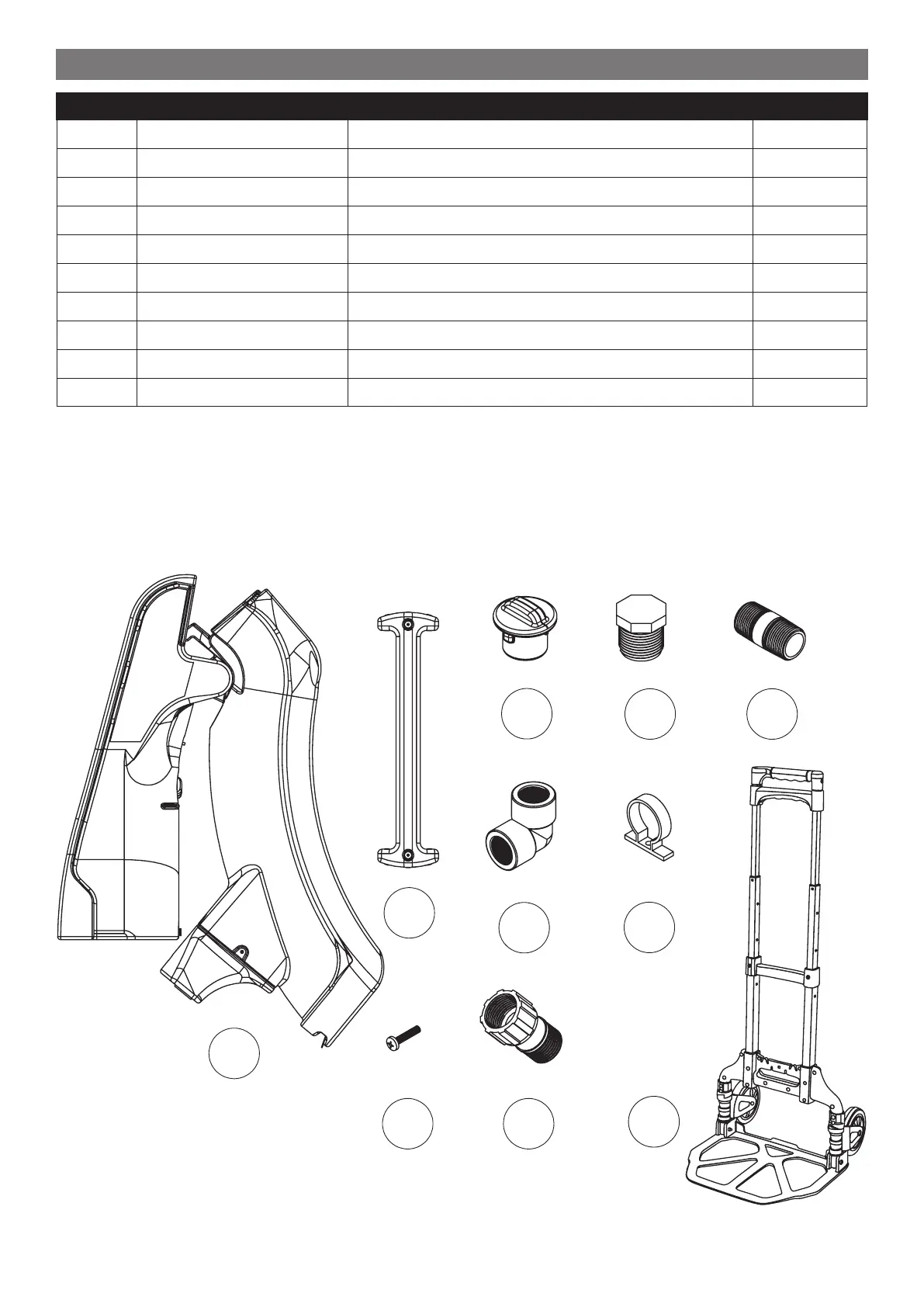

PARTS LIST
ITEM # PART # DESCRIPTION QUANTITY
1 660-209-5820-A SLIDEAWAY SLIDE ASSEMBLY 1 ea.
2 660-209-5820-C SLIDEAWAY SUPPORT BRACE 1 ea.
3 660--209-5820-D SLIDEAWAY WATER CAP 1 ea.
4 05-715 PVC Plug SCH 80 ¾" NPT 2 ea.*
5 05-711 PVC Nipple SCH 80 ¾" x 2" 1 ea.
6 05-796 ¾" 90 Degree Elbow 1 ea.
7 05-713 ¾" Hose Clip 3 ea.*
8 05-642 Hose Clip Screw, #8 X 1.5" 18-8 SS 3 ea.*
9 05-797 Garden Hose Swivel Adapter 1 ea.
10 40-1000 Trolley 1 ea.
* Additional items included in kit are for replacements in case items are misplaced. Visit srsmith.com for
hardware kit and replacement part information.
7
8 9
1
2
3
4 5
6
10
