S.R.Smith TYPHOON - Parts List

6

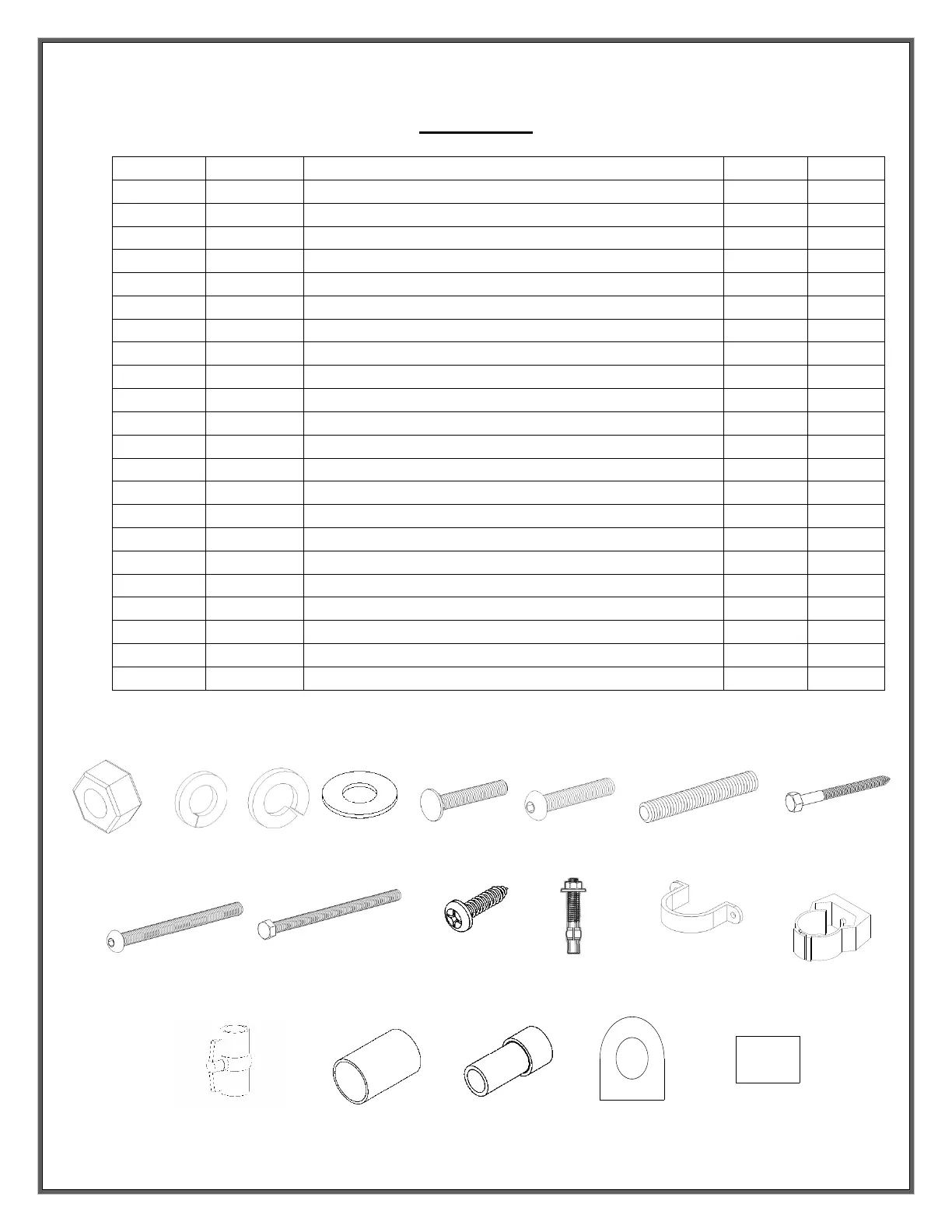

PARTS LIST
Visit srsmith.com for hardware kit and replacement part information.
ITEM NO.
PART NO.
DESCRIPTION
QTY.
KIT A
KIT A
69-209-123
TYPHOON HARDWARE CARTON
1 ea.
1
5-139
3/8” HEX NUT
10 ea.
●
2
5-151
3/8” LOCK WASHER
10 ea.
●
3
05-14-115
1/2" LOCK WASHER
8 ea.
●
4
5-145
3/8” FLAT WASHER
24 ea.
●
5
5-246
3/8” x 2-3/4” CARRIAGE BOLT
2 ea.
●
6
5-247
3/8” x 3” BUTTON HEAD CAP SCREW
4 ea.
●
7
5-239
3/8” x 2-1/2” STUD
4 ea.
●
8
5-240
3/8” x 3-1/2” LAG SCREW
6 ea.
●
9
5-237
3/8” x 5” BUTTON HEAD CAP SCREW
2 ea.
●
10
5-248
3/8” x 3.5” HEX HEAD CAP SCREW
2 ea.
●
11
5-242
#14" x 1” PAN HEAD TAPPING SCREW
6 ea.
●
12
5-241
1/2" x 5” ANCHOR STUD
8 ea.
●
13
05-782
1-1/2” PVC PIPE STRAP
2 ea.
●
14
05-767
1” PIPE CLAMP
2 ea.
●
15
05-770
1” BALL VALVE GRAY
1 ea.
●
16
05-784
1” COUPLING
1 ea.
●
17
05-773
GARDEN HOSE ADAPTER
1 ea.
●
18
8-532
1/2" HIGH x 1/2” WIDE x 32” LONG RUBBER GASKET
1 ea.
●
19
8-545A
KIT, TOP RUNWAY GASKET
1 ea.
●
20
05-786-1
1” PVC FLEX HOSE, 16” LONG (NOT SHOWN)
1 ea.
21
05-786-2
1” PVC FLEX HOSE, 68” LONG (NOT SHOWN)
1 ea.
(1)
(2)
(3)
(5)
(6)
(7)
(8)
(9)
(10)
(12)
(15)
(13)
(4)
(11)
(17)
(16)
(18)
(19)
(14)
