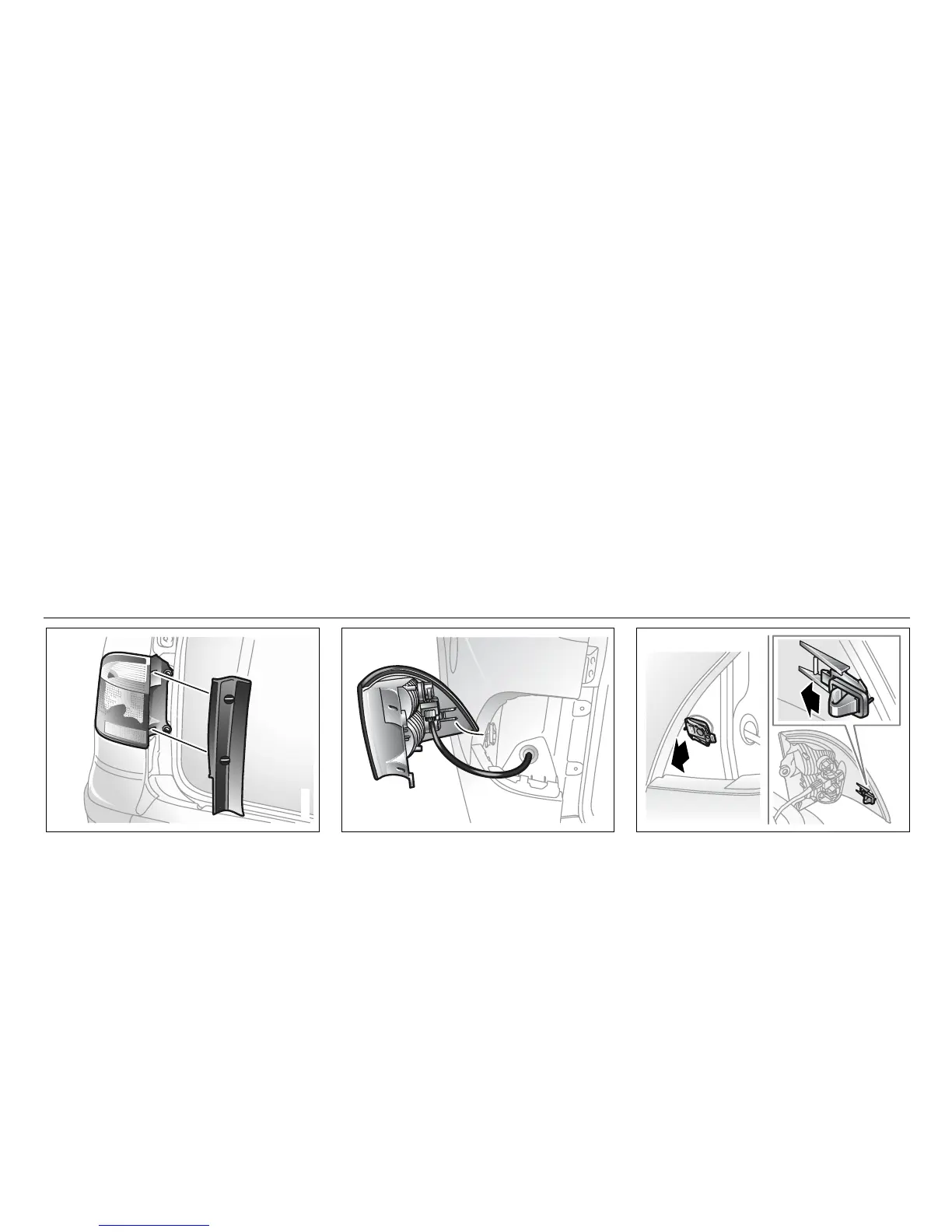

Rear lights clusters,
9-5 SportWagon
1 Open the tailgate.
2 Remove the cover by turning the two
catches counterclockwise one quarter
turn.
3 Remove the two screws securing the
light cluster to the body.
4 Pull the light cluster rearwards and
angle it outwards (it is seated quite
firmly).
5 Release the fastener from the body.
Reinsert the fastener into the groove in
the light cluster. Press in the fastener
until you hear a click.
6 Take out the bulb holder by twisting it
slightly counterclockwise.
7 Press in the bulb and twist it counter-
clockwise.
8 Change the bulb.
9 Check that the new bulb works.
Reassembly:
1 Align the fastener with the hole in the
body.
2 Press the lamp unit home into the body
until you hear a click.
3 Fit the screws and cover.
IB1793
IB1919
IB1881
