108 Instruments and controls
The system uses seven sensors:
• Outside air temperature sensor
• Cabin air temperature sensor (by the inte-
rior rearveiw mirror)
• Sun sensor (on the facia)
• Blended air temperature sensors 2
(located in the front floor vents).
• Blended air temperature sensors 2
(located in the outer panel vents).
Note
If the sun sensor is covered, the ACC
system will not be able to regulate the cabin
climate as intended.

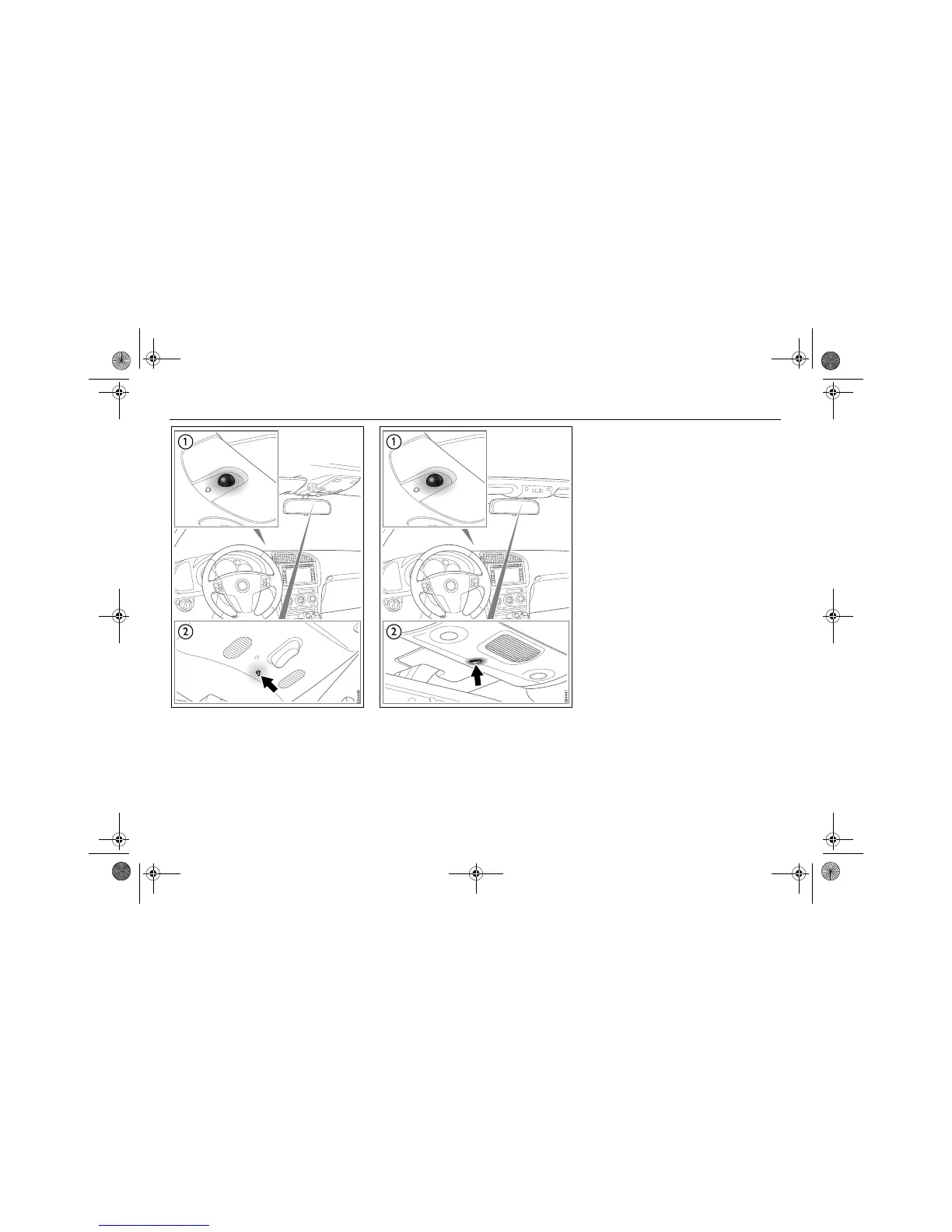

Sun- and cabin sensor, SportSedan and
SportCombi
1 Sun sensor
2 Cabin temperature sensor
Sun- and cabin sensor, Convertible
1 Sun sensor
2 Cabin temperature sensor
