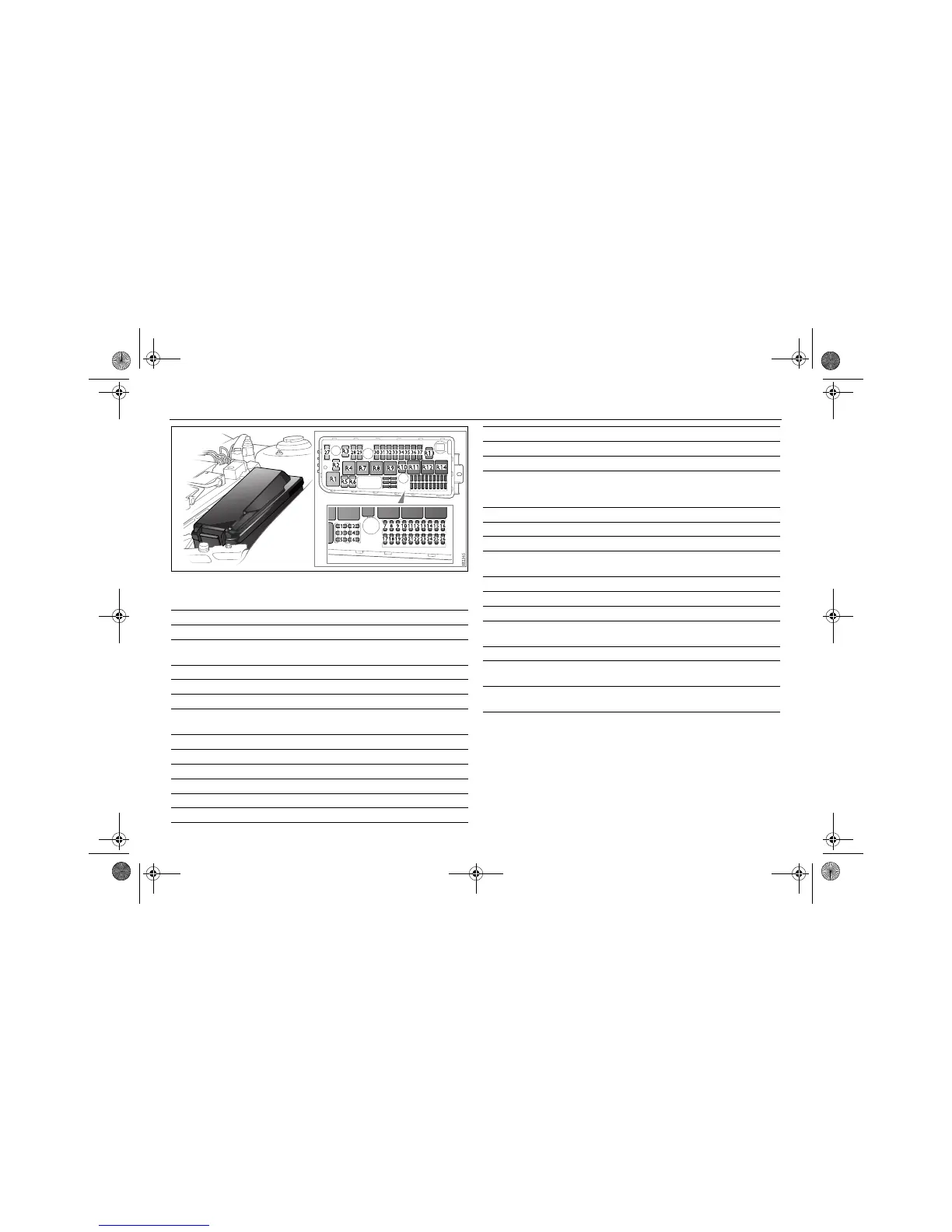

Fuse panel in engine bay
No. Amp. Function
1--
2
10 Engine control module; automatic transmission con-
trol module 3
320Horn
4 10 Engine control module; battery disconnect switch 3
5--
6
10 Selector lever, automatic transmission 3; clutch pedal
switch
7 10 Xenon Cornering Headlights, left 3
8 5 Relay for vacuum pump (brake system) 3
9--
10 - -
11 - -
12 10 Washer fluid pump, rear window 3
13 - -
14 - -
15 30 Washer fluid pump, headlights 3
16
30 Front right parking light; front right turn signal; left and
right side turn signal; right high beam; left low beam;
front left fog light 3
17 30 Windshield wiper motor, low speed
18 30 Windshield wiper motor, high speed
19 20 Parking heater; auxiliary heater 3
20
10 Headlight levelling 3 xenon cornering headlights,
right 3
21 - -
22 30 Washer fluid pump, windshield
23 - -
24
20 Flash-to-pass; high beam, right and left (cars with
Daytime Running Lights only)
25 20 Amplifier, sound system II 3
26
30 Front left turn signal; front left parking light; front right
fog light 3; right low beam; left high beam
27
–37
MAXI
