27Safety
LATCH child seat installation
Before starting the installation, please read
through this instruction, and the child seat
installation instruction.
1 Place the child restraint on one of the
designated outboard rear seat cush-
ions.
2 Slide the attachment on the child
restraint in between the seat cushion
and backrest.

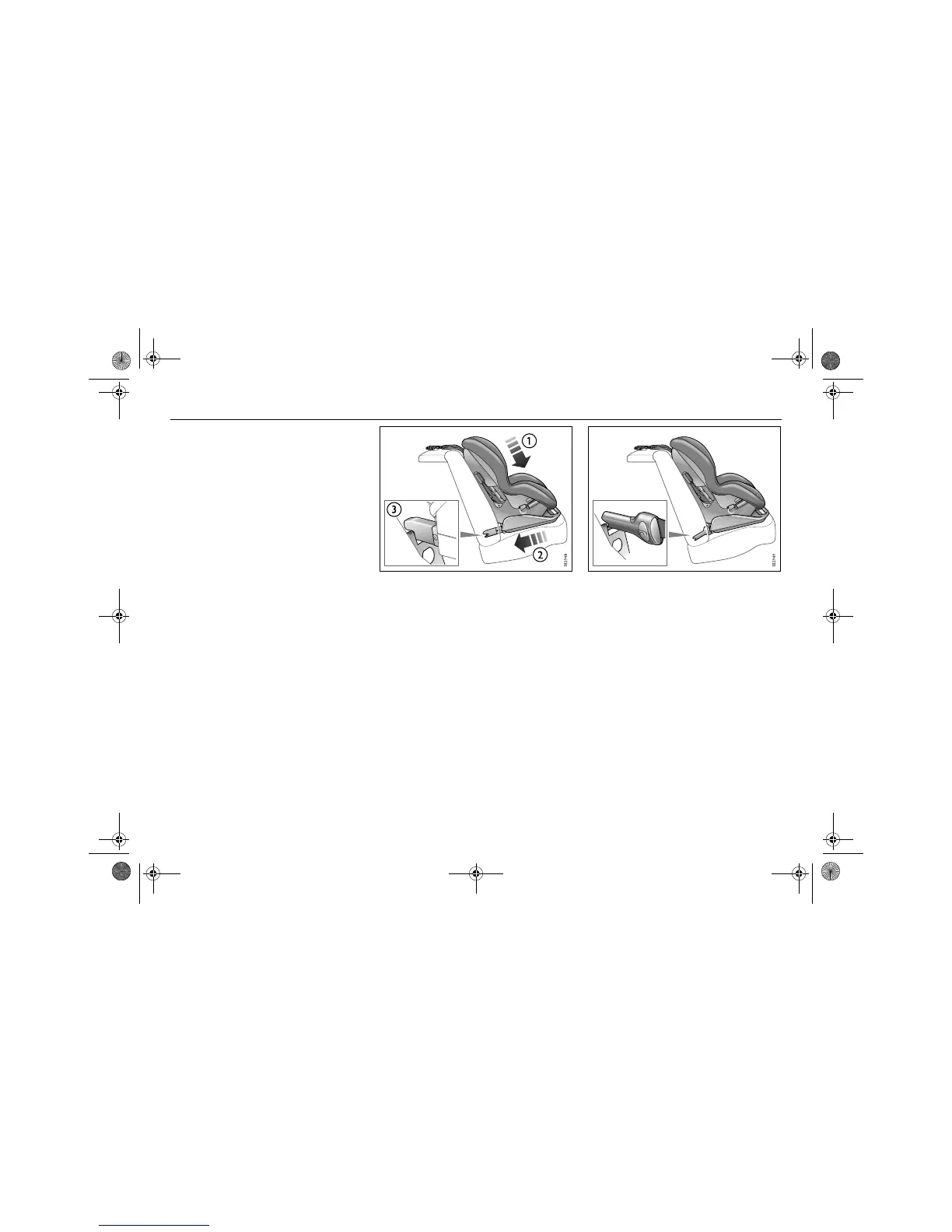

3 Press the child restraint down on the
seat, 1 in illustration.
4 Press the child restraint rearward, lining
up the inner restraint attachment arm
with the label, 2 in illustration.
5 Connect the restraint attachment arms
to the anchorages 3 in illustration.
6 Follow the child restraint instructions to
confirm that both restraint attachment
arms are properly attached to the bars.
7 Attach the top tether strap to the in-car
anchorage and tighten according to the
restraint instructions, see page 28
and 30.
8 Pull the child restraint to make a second
check that the restraint is securely
attached at both the lower anchorage
bars and the top tether strap.
For the top tether, only use the strap sup-
plied with the child restraint.
When fitting child restraints in cars you
must always read the instructions sup-
plied by the child restraint manufacturer.
Use the integrated harness to restraint the
child, according to the child restraint manu-
facturers instructions.
The availability of LATCH child restraints is
limited.
Rigid 2-point lower anchorage with top
tether
Semi-rigid 2-point lower anchorage with
top tether
