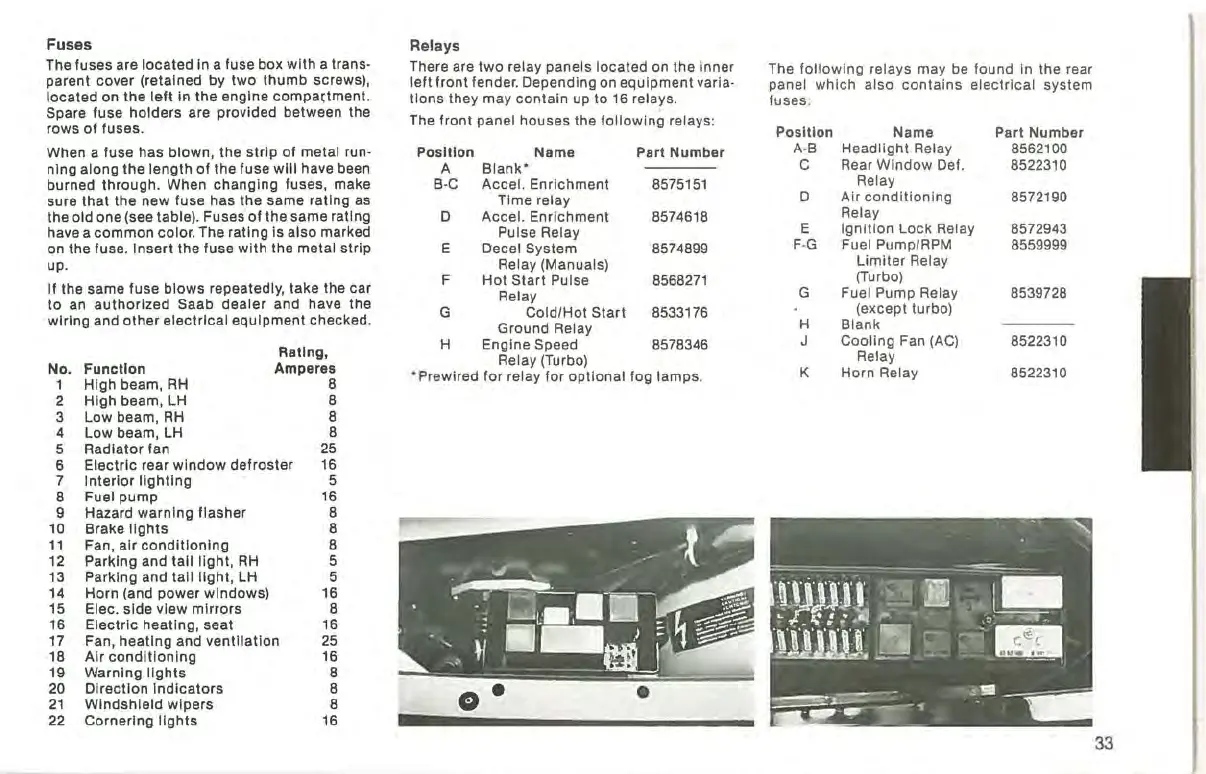

Fuses
The fuses are located In a fuse box with a trans-
parent cover (retained by two thumb screws),
located on
the left in the engine compa(tment.
Spare fuse holders are provided between the
rows
of fuses.
When a fuse has blown,
the strip of metal run-
ning along the length of the fuse will have been
burned
through. When changing fuses, make
sure
that the new fuse has the same rating as
the old one (see table). Fuses
of the same rating
have a
common color. The rating Is also marked
on the fuse.
Insert the fuse with the metal strip
up.
If the same fuse blows repeatedly, take the car
to an authorized Saab dealer and have the
wiring and other electrical equipment checked.
Rating,
No.
Function Amperes
1 High beam,
RH 8
2
High beam, LH 8
3 Low beam,
RH 8
4 Low beam, LH 8
5 Radiator fan
25
6 Electric rear window defroster 16
7 Interior lighting 5
8 Fuel
pump 16
9 Hazard warning flasher 8
10 Brake lights 8
11 Fan, air conditioning 8
12 Parking and
taillight, RH 5
13 Parking and taillight, LH 5
14 Horn (and power windows) 16
15 Elec. side view mirrors 8
16 Electric heating, seat 16
17
Fan, heating and ventilation 25
18 Air conditioning 16
19 Warning lights 8
20 Direction Indicators 8
21 Windshield wipers 8
22
Cornering lights 16
Relays
There are two relay panels located on the inner
left front fender. Depending on equipment varia-
tlons they may contain up to 16 relays.
The
front panel houses the following relays:
Position Name Part Number
A
Blank·
B-C Acce!. Enrichment 8575151
Time relay
0 Acce!. Enrichment 8574618
Pulse Relay
E
Decel System
8574899
Relay (Manuals)
F
Hot Start Pulse 8568271
Relay
G
Cold/Hot Start 8533176
Ground Relay
H Engine
Speed 8578346
Relay (Turbo)
·Prewired for relay for optional fog lamps.
The
following relays may be found in the rear
panel
which also contains electrical system
fuses.
Position Name
Part Number
A-B
Headlight Relay
8562100
C
Rear Window Del.
8522310
Relay
0 Air conditioning
8572190
Relay
E
Ignition Lock Relay
8572943
F-G Fuel Pump/RPM
8559999
Limiter Relay
(Turbo)
G Fuel Pump Relay
8539728
(except turbo)
H
Blank
J Cooling Fan (AC)
8522310
Relay
K Horn Relay 8522310
