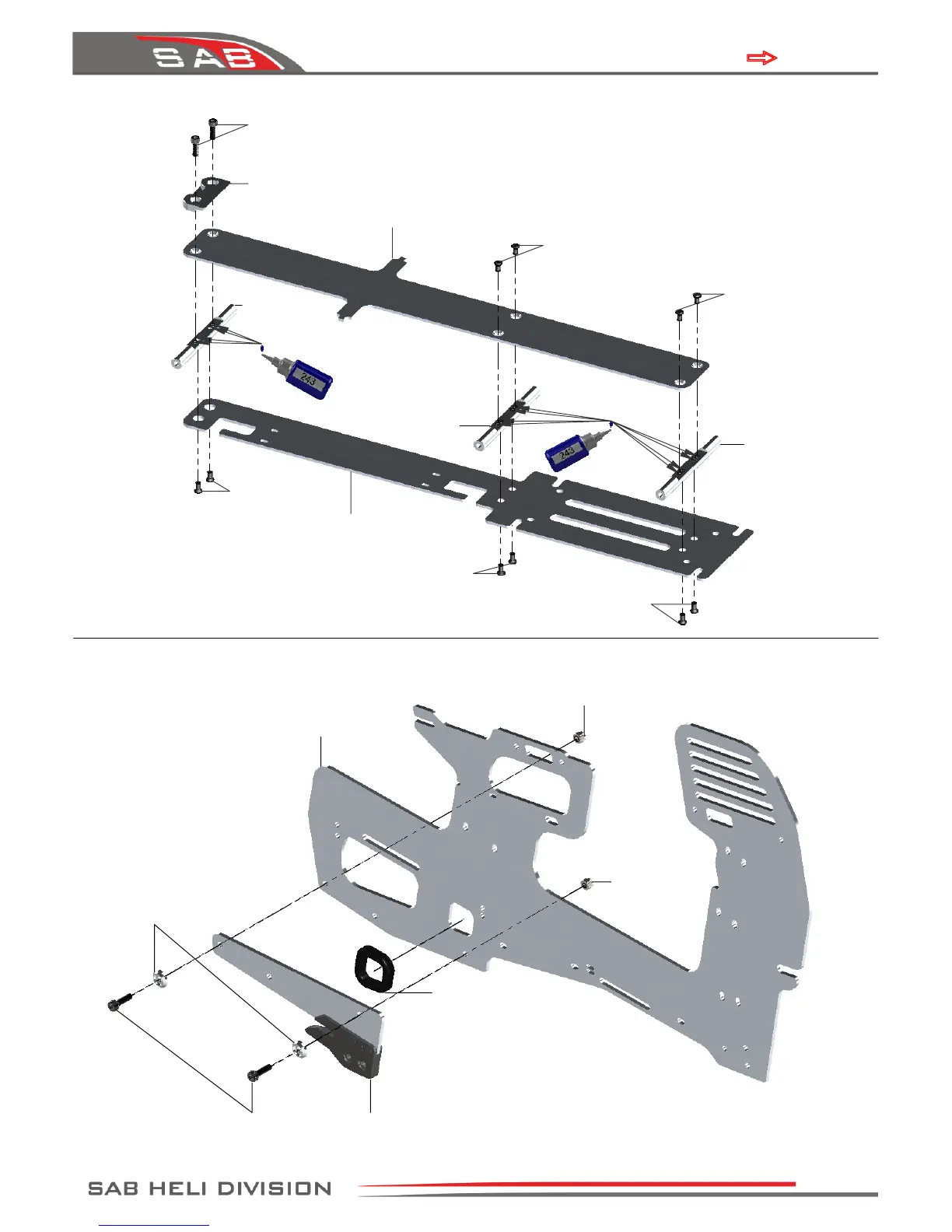

SAB Goblin black thunder - Battery Tray and Left Frame Assembly

Flat Head Cap
Screw M2.5x5mm
(HC128-S)
ESC Support
(H0153-S)
Flat Head Cap
Screw M2.5x5mm
(HC128-S) Flat Head Cap
Screw M2.5x5mm
(HC128-S)
Flat Head Cap Screw
M2.5x5mm
(HC128-S)
Frame Spacer
(H0003-S)
Frame Spacer
(H0003-S)
Frame Spacer
(H0003-S)
Main Frame
(H0362-S)
Socket Head Cap
Screw M3x10mm
(HC056-S)
Finishing Washer M3
(H0007-S)
Cable Pass
(HA010-S)
Metrix Hex
Nylon Nut M3
(HC206-S)
Metrix Hex
Nylon Nut M3
(HC206-S)
Front Landing
Gear Support
(H0694-S)
Flat Head Cap
Screw M2.5x5mm
(HC128-S)
Battery Tray
(H0002-S)
Stop Battery Plate
(H0150-S)
Socket Head Cap
Screw M2.5x8mm
(HC020-S)
BAG 1.1, BAG 1.2
Battery Tray Assembly
Left Main Frame Assembly
Page 5
Chapter 4, Carbon Frame
