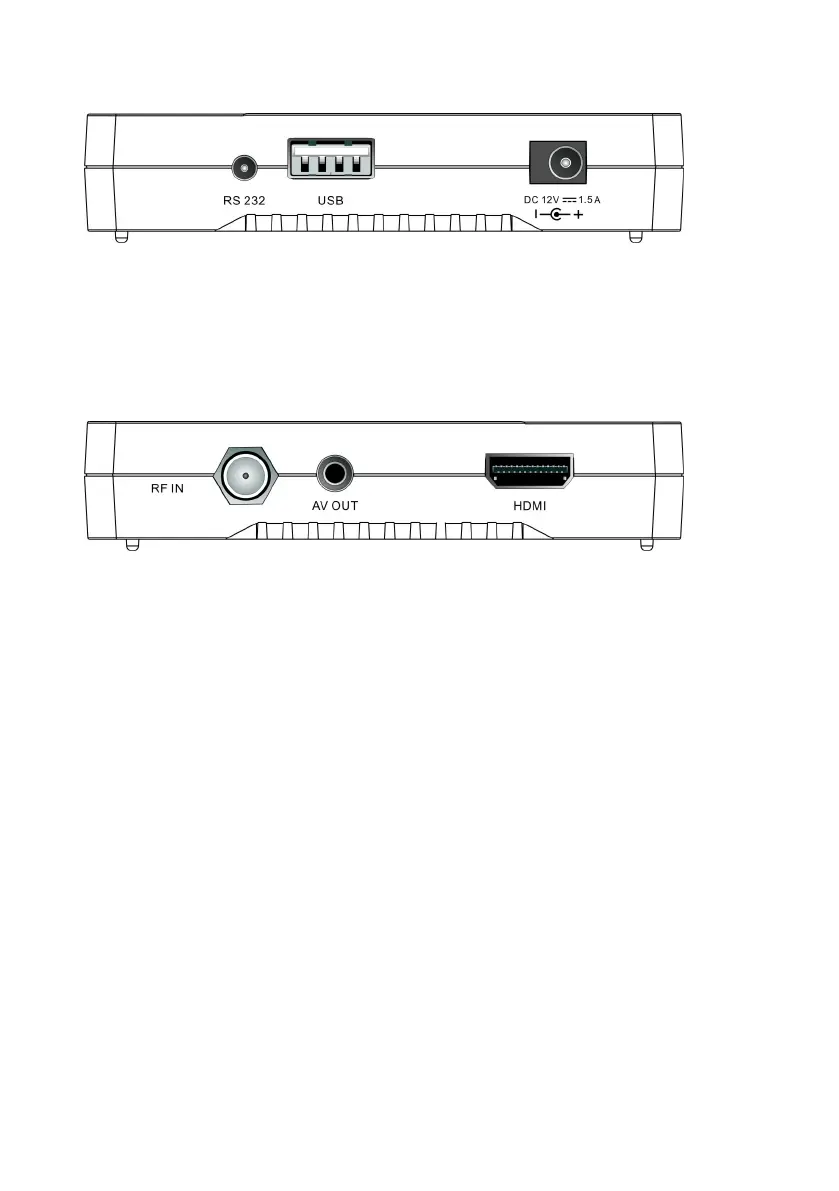

1. Front Panel
1 Remote Sensor: Detect infrared signal from remote control unit
2 RS232: To transfer the data to another STB or PC by RS-232 cable
3 USB Connector: USB 2.0 Host, connect to USB hard disk or flash disk
4 POWER: DC 12V 1.5A power supply.
2. Rear Panel
Please refer to the diagram above for all possible connections of your receiver
Do not connect the unit to the mains socket until all other connections have been made and checked.
Your configuration may vary depending on model.
1. INPUT (LNB IN 13/18V 500mA MAX) : Connect the coaxial cable from LNB of your Dish.
2. AV OUT : Used to connect video and audio.
3. HDMI: Audio and Video output socket for TV set with HDMI Input Jack only.
To Next Page
