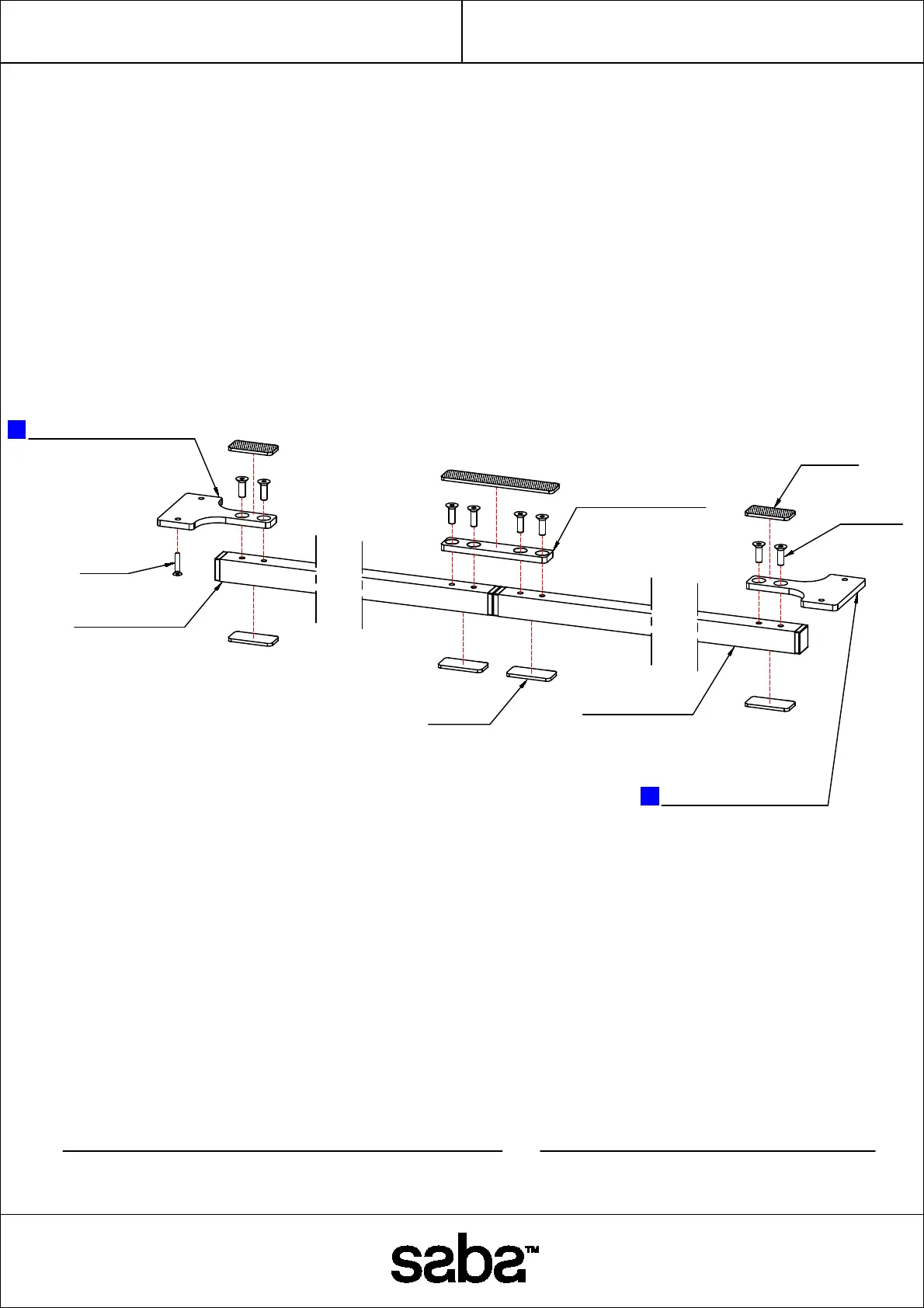

MONTAGGIO BARRE CENTRALI
CENTRAL BARS ASSEMBLY
2 - NELLE COMPOSIZIONI FINO A 2 ELEMENTI,
UNIRE LE BARRE CON LA PIASTRA DI UNIONE.
2 - IN COMPOSITIONS OF UP TO 2 ELEMENTS,
JOIN THE UNION BARS WITH THE UNION PLATE.
VITE
SCREW
PIASTRA PREMONTATA
PRE-MOUNTED PLATE
BARRA UNIONE
UNION BAR
PIASTRA UNIONE
UNION PLATE
1 - UNIRE LE BARRE CON LE PIASTRE PREMONTATE SUGLI
ELEMENTI BRACCIOLO, POUF TERMINALE, ANGOLARE O BASE.
1 - JOIN THE UNION BARS WITH THE PRE-MOUNTED PLATE ON
ARMRESTS, POUF END UNITS, CORNER UNITS OR
SEATING MODULES.
FELTRO
FELT
FELTRO
FELT
PIASTRA PREMONTATA
PRE-MOUNTED PLATE
BARRA UNIONE
UNION BAR
M6x35
