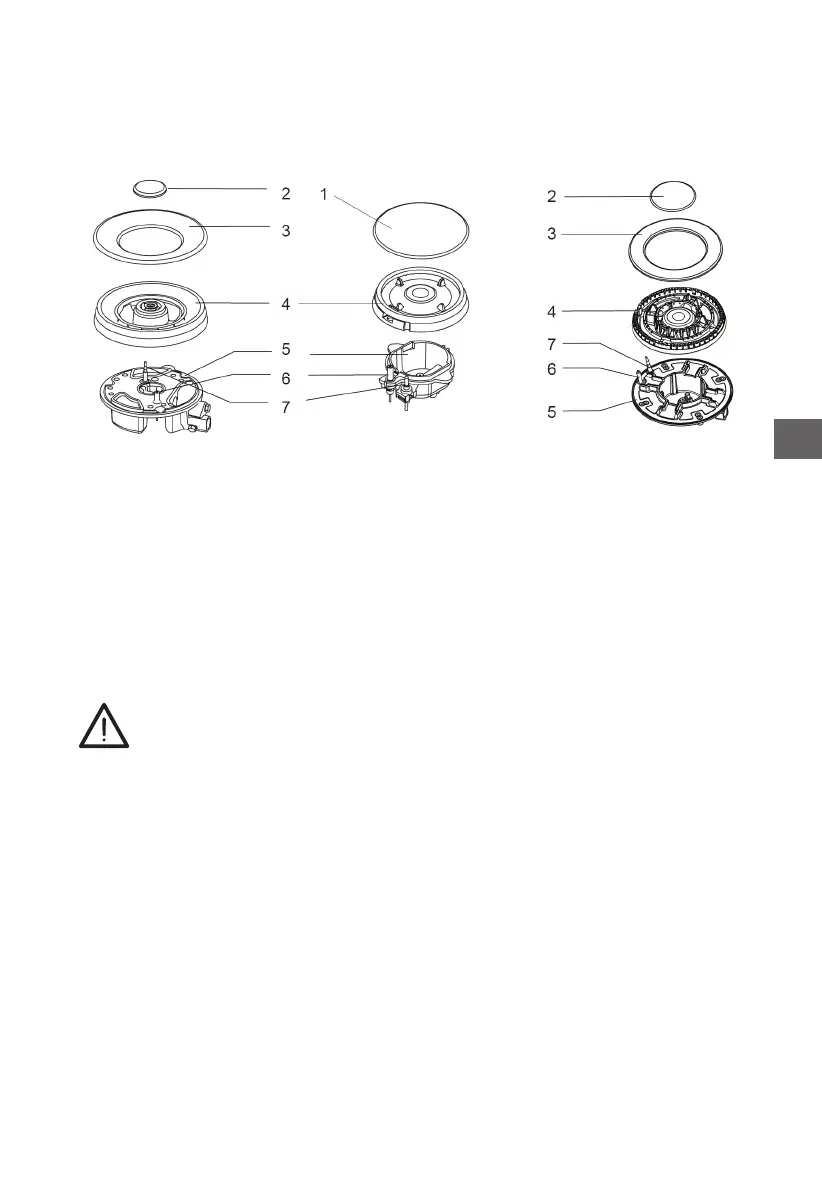

• Re-assemble the Auxiliary, Semi-Rapid, Rapid and
Triple-Crown burners as follows :
1. Place the ame spreader (4) on to the burner cup (5) so that
the ignition device and the ame supervision device extend
through their respective holes in the ame spreader.The
ame spreader must click into place correctly.
2. Position the burner lid (1,2,3) onto the ame speader (4) so
that the retaining pins t into their respective recesses.
• Replace parts in the correct order after cleaning.
– Do not mix up the top and bottom.
– The locating pins must t exactly into the
notches.
