Service Steering and Brakes - 29
SERVICE STEERING AND BRAKES
foot tread area on left-hand side of transmission). Distance
(C) should be 2-10 mm (0.08-0.40 in).
4. If distance is less than or equal to 2 mm (0.08 in):
• Gradually adjust jam nuts (D) until specified
measurement is obtained.
• Depress brake pedal and LOCK park brake.
• Measure the distance between edge of compression
spring bracket and front edge of brake rod stop tabs.
Gap should have a minimum distance of 2 mm (0.08 in).
• Check brake rod compression spring (E). It should
not be completely compressed when park brake is
locked. A slight air gap should be visible between the
coils when proper adjustment is reached.
• Recycle park brake a few times and measure
distances each time until specified measurements are
obtained.

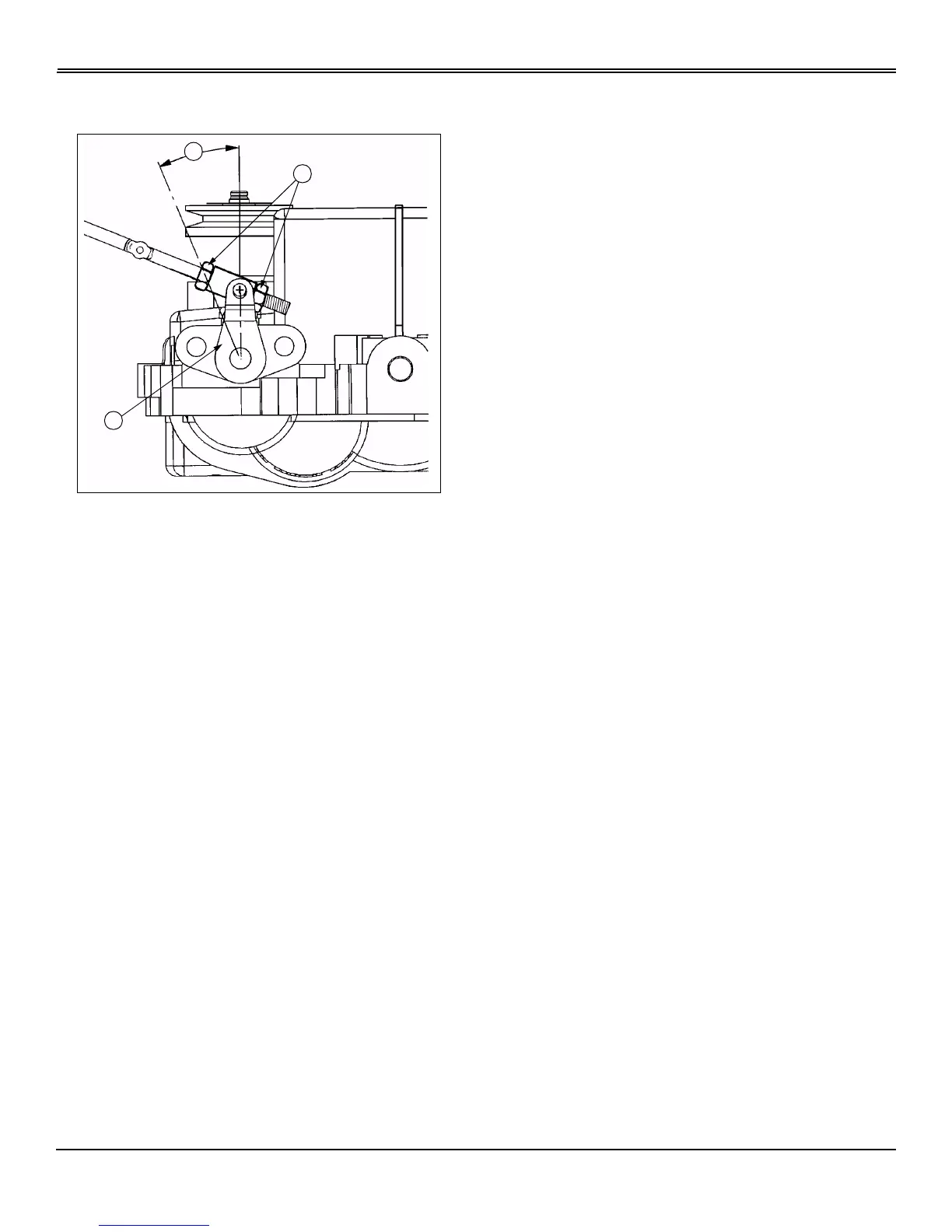

• Brake lever (F) travel should not exceed 30° (G). If it
does, measure brake components individually.
SPECIFICATIONS:
• Spring bracket to stop tabs (minimum): 2 mm (0.08 in)
• Brake lever travel (maximum): 30°
G
D
F
