Engineering manual - SAB 193-233-283 S A-frame (including ATEX)
16/175
008831 en 2022.02
Signs and warnings
2.3 Compressor name plate

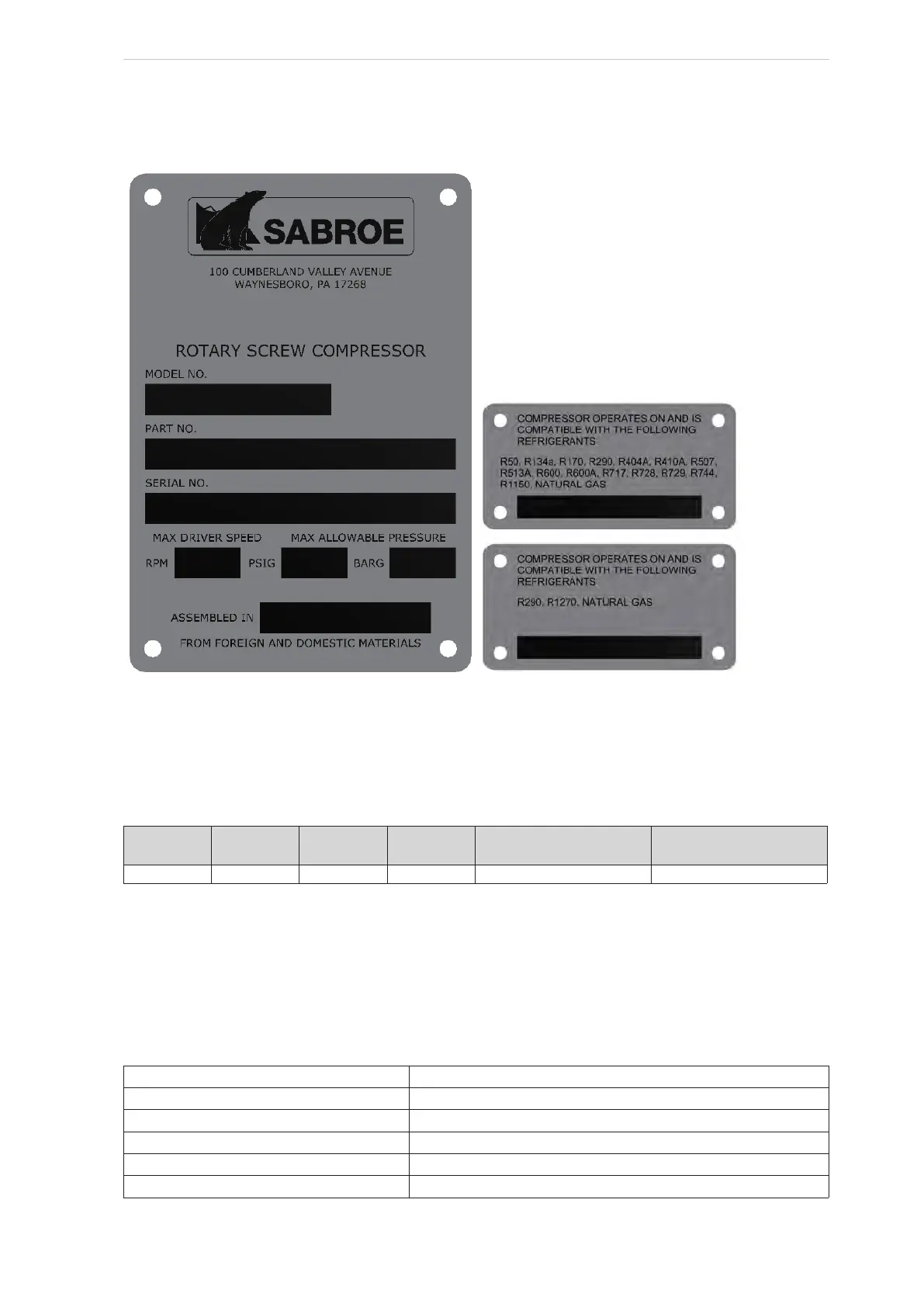

Fig. 1: Compressor name plate Fig. 2: Refrigerant plates
Note: The compressor is fitted with a name plate, Fig. 1, and one of the two refrigerant name
plates shown in Fig. 2.
The rotary screw compressor serial numbers contain the following information:
Example: 10240A90000015Z.
Plant Decade Month Year
Global seq. no.
Additional
remarks
1024 0 A 9 0000015 Z
Month
A=JAN, B=FEB, C=MAR, D=APR, E=MAY, F=JUN,
G=JUL, H=AUG, K=SEP, L=OCT, M=NOV, N=DEC.
Additional remarks
R = Remanufactured
Z = Deviation from standard configuration.
The compressor name plate contains this information:
Model no.
Manufacturer type designation.
Part no.
Manufacturer part number.
Serial no.
Compressor manufacturing number.
Max. driver speed - rpm
Maximum number of revolutions allowed.
Max. allowable pressure - psig/bar Maximum working pressure of compressor (psig/bar).
Assembled in
Manufacturing country.
