20
ENGLISH
If the indoor unit needs to be disconnected from the outdoor unit, to place it in a more
suitable position, follow these steps:

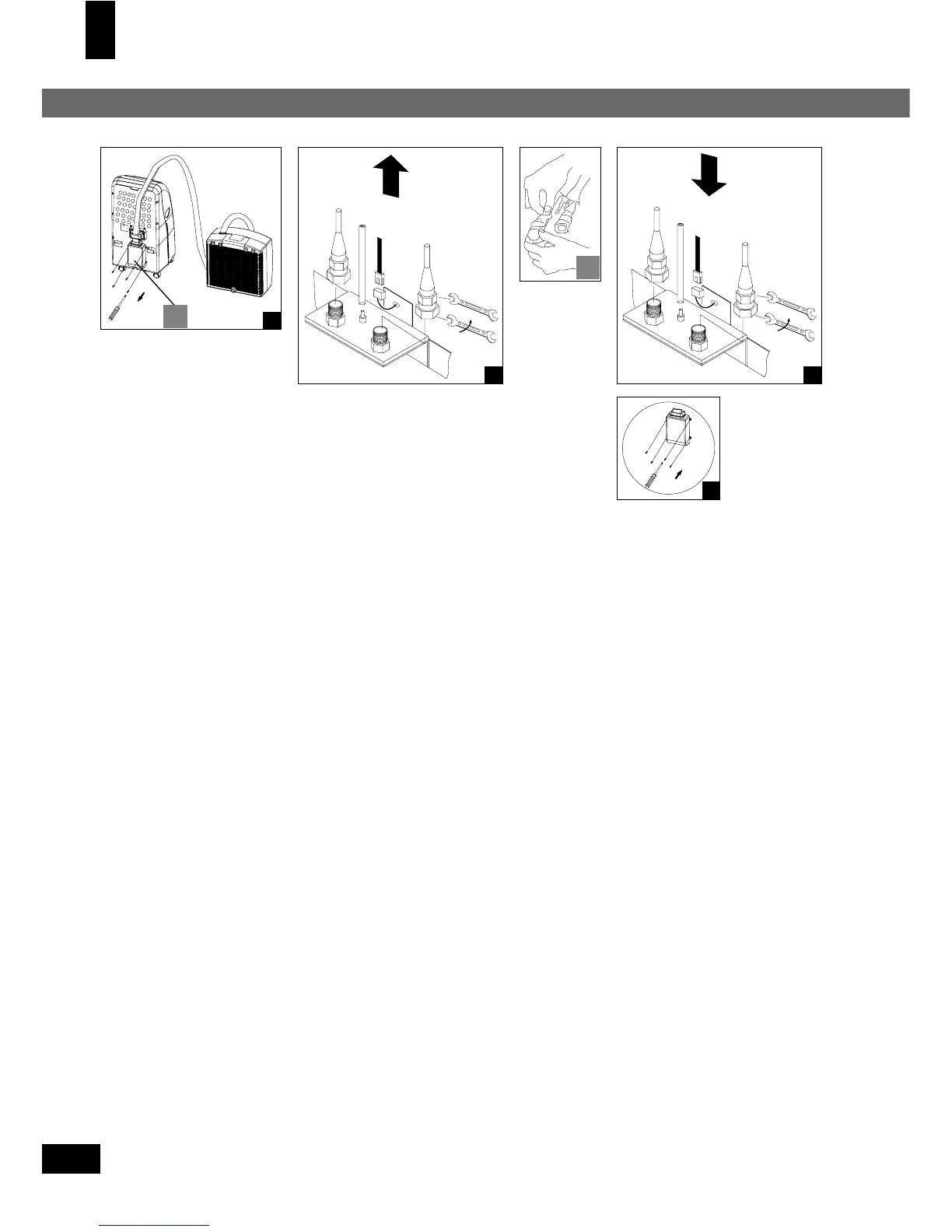

Disconnecting
Figure A:
• open the tube connecting box (12) situated at the back of the indoor unit.
Figure B:
• disconnect the drain tube (I).
• disconnect the electrical cable (II).
• disconnect the refrigerant tubes (III) using the spanners provided (15).
The terminals are fitted with automatic self-sealing valves to prevent the gas from leaking.
Loosen the nuts quickly, so the seal is made promptly.
During the operation take extreme care not to break the refrigerant tube.
• cap the terminals with the caps (16) provided, to protect them from dust.
Mount the outdoor unit on the bracket as described on page 14.
Connecting
Figure C:
• pass the connecting tube through the hole (at least dia. 50 mm) if present.
• remove the protection caps (if used previously).
• reconnect the refrigerant tubes (tighten the nuts quickly to make a good seal), the drain
tube and the electrical cable.
Figure D:
• close the connection box on the indoor unit.
DISCONNECTING THE INDOOR AND OUTDOOR UNIT (FOR QUALIFIED PERSONNEL)
I drain tube
II electrical cable
III refrigerant tube
B
II
I
III
III
C
II
I
III
III
D
15
A
12
