SAE 3000 - Page 6

I

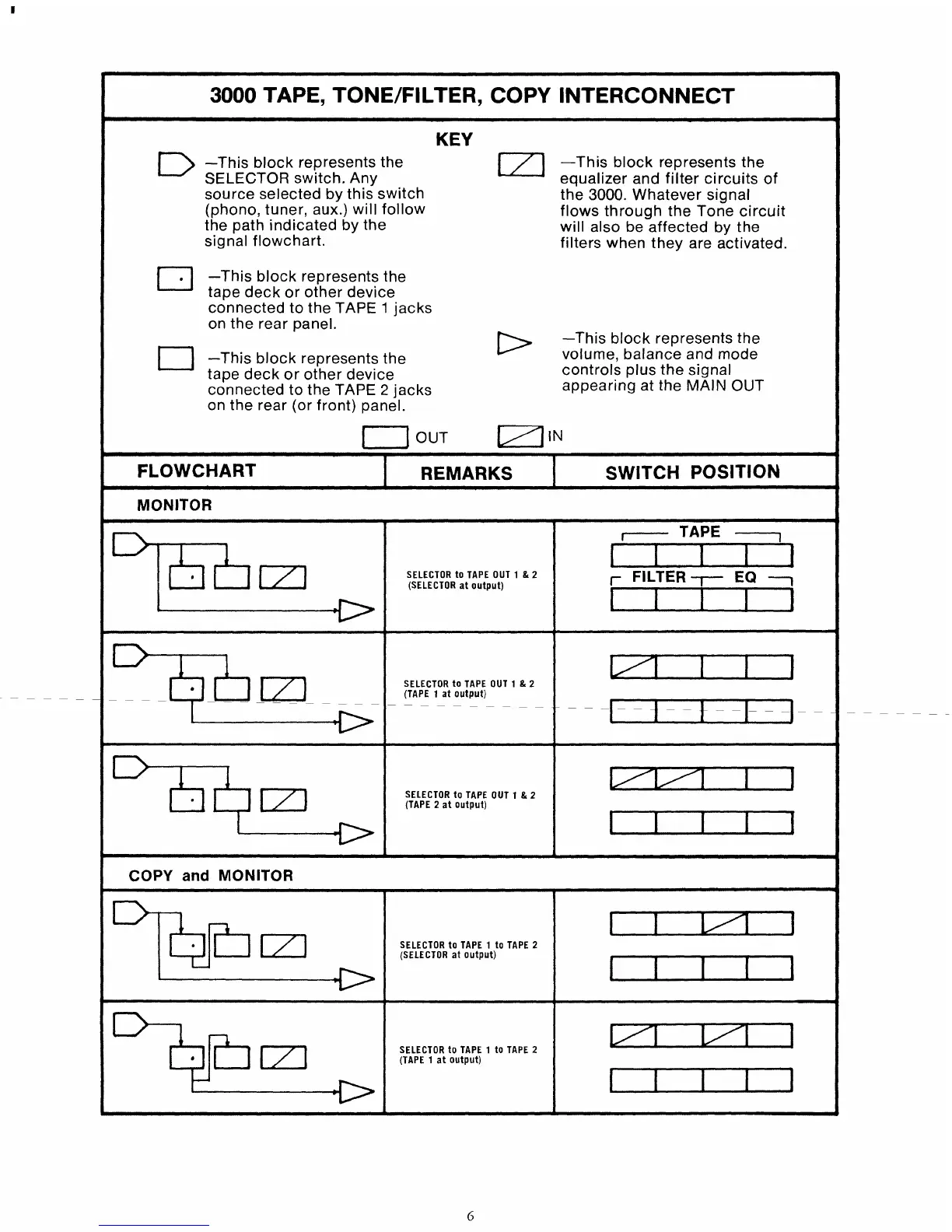

3000 TAPE, TONEIFILTER, COPY INTERCONNECT
- -
KEY
-This block represents the
[7] -This block represents the
SELECTOR switch. Any
equalizer and filter circuits of
source selected by this switch
the
3000. Whatever signal
(phono, tuner, aux.) will follow
flows through the Tone circuit
the path indicated by the
will also be affected by the
signal flowchart.
filters when they are activated.
[-I -This block represents the
tape deck or other device
connected to the TAPE
1 jacks
on the rear panel.
1-1 -This block represents the
ta~e deck or other device
connected to the TAPE
2 jacks
on the rear (or front) panel.
-This block represents the
volume, balance and mode
controls plus the signal
appearing at the
MAIN OUT
1-1 OUT IN
I FLOWCHART I REMARKS 1 SWITCH POSITION
I MONITOR
SELECTOR to TAPE OUT 1 & 2
(SELECTOR at output)
r- TAPE .-I
1
FILTER.- EQ 7
SELECTOR to TAPE OUT 1 & 2
(TAPE 1 at Output)
----
- - - -
SELECTOR to TAPE OUT 1 & 2
(TAPE 2 at output)
I COPY and MONITOR
SELECTOR to TAPE 1 to TAPE 2
(SELECTOR at Output)
SELECTOR to TAPE
1 to TAPE 2
(TAPE 1 at output)
