TAPE, TONE
COPY
NNECT
L

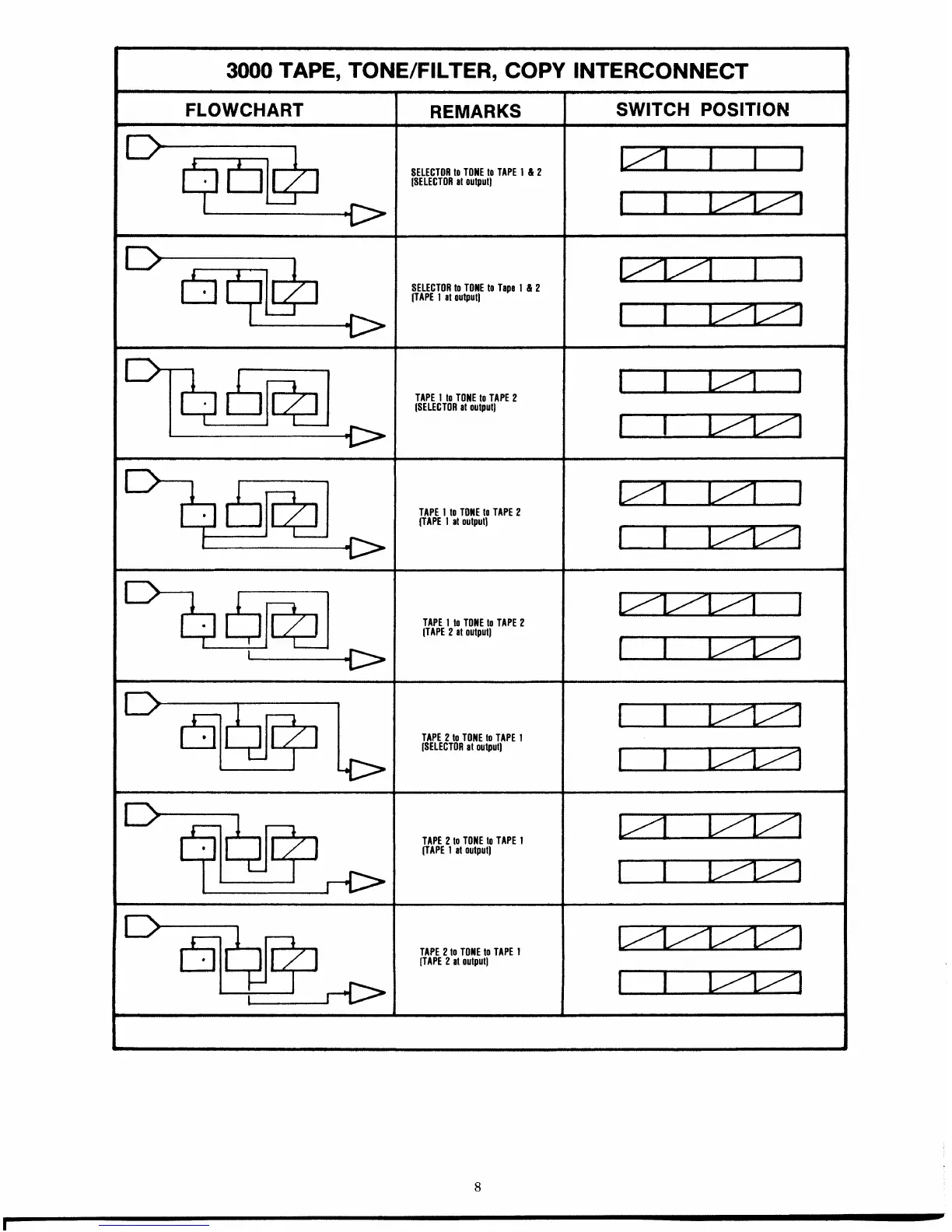

FLOWCHART
REMARKS
SELECTOR to TONE to TAPE
1
&
2
[SELECTOR at output]
SELECTOR to TONE to Tape
1
&
2
[TAPE
1
at output]
TAPE
1
to TONE to TAPE
2
[SELECTOR at output)
TAPE
1
to TONE
to
TAPE
2
[TAPE
1
at
output)
TAPE
1
to
TONE
to
TAPE
2
[TAPE
2
at output]
TAPE
2
to TONE to TAPE
1
[SELECTOR at output]
TAPE
2
to TONE to TAPE
1
[TAPE
I
at output]
TAPE
2
to TONE to TAPE
1
[TAPE
2
at output]
SWITCH POSITION
