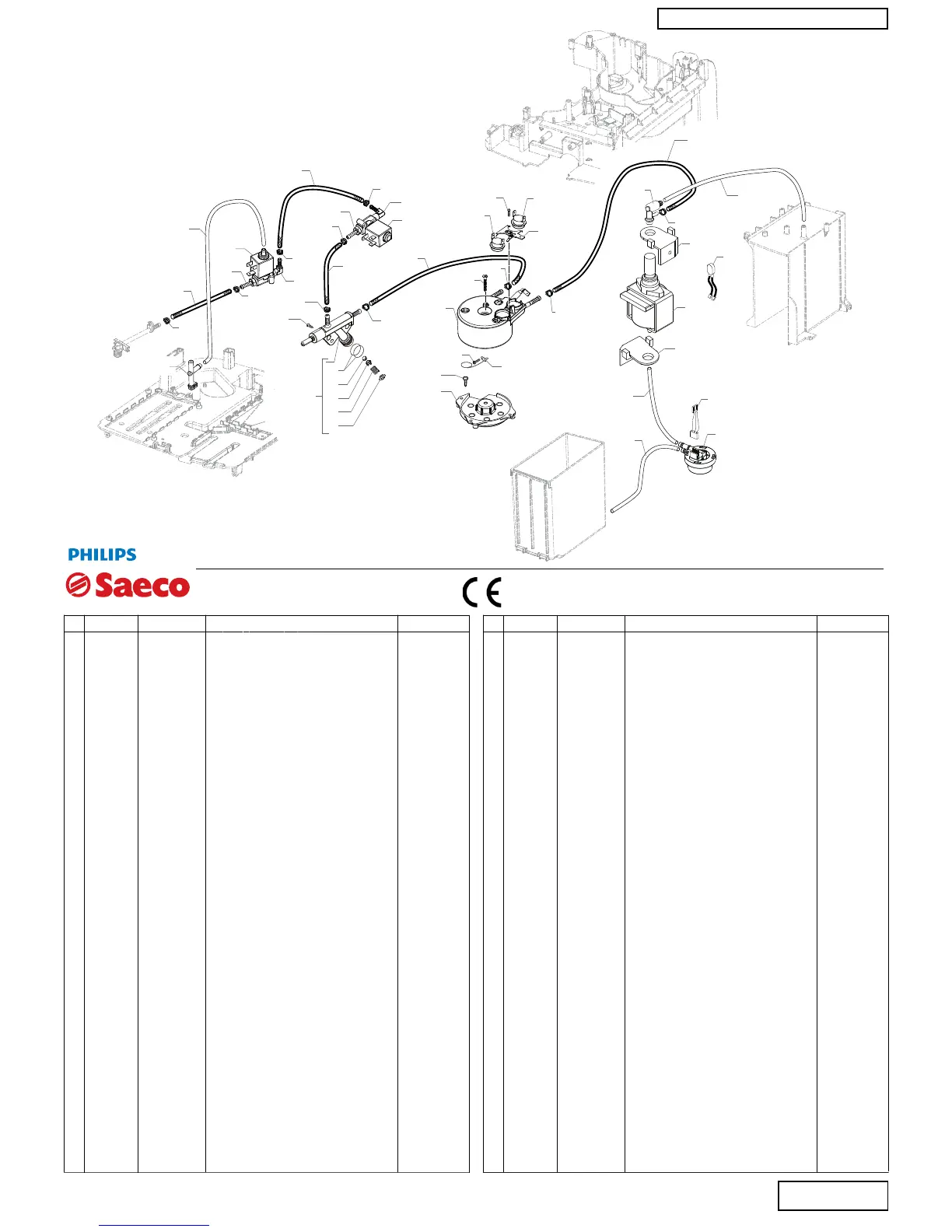

Saeco HD8838 - Water System Components

PSA SYNTIA CAPPUCCINO
Exp. E74154 Rev.05-30/06/13
HD8838/01-02-03-04-06-08-09-31
HD8838/32-41-43-47-HD8839/11-32
Cod.10003326-3598-3327-3762-3873-68-3560-3824
Cod.10003929-4076-77-3879-3769-3989
17
17
1
7
10
8
9
14
4
12
12
12
12
25
28
28
16
18
26
15
27
27
27
29
24
24
11
2
5
6
14
14
27
12
12
12
5
12
21
22
4
23
19
20
21
3
13
12
12
13
POS
POS
CODE
CODE
DESCRIPTION
DESCRIPTION
NOTE
NOTE
12NC
12NC
TABLE 4/7
01 17000980 996530067657 BLACK WATER DRAINAGE CONNECTOR XSMC
02 11024038 996530067667 BRASS 2WAY EV 21JN1RRV20-XT+LBV05024CU
03 11024039 996530067613 3WAY EV OT57 (31JN1XRV20-SXT+LBV05024CU)
04 12000450 996530007819 SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
05 11003348 996530001601 BRASS CONNECTOR FOR ALUM.BOILER
06 17000114 996530068077 FLOW SELECTOR FAUCET NPR
07 12000893 996530007948 OR ORM 0120-20 BLACK EPDM
08 11008104 996530004722 MUSHROOM VALVE FOR FLOW SELECTOR P0057
09 11008105 996530004723 FLOW SELECTOR VALVE SUPPORT P0057
10 11008077 996530004709 STEEL FLOW SELECTOR VALVE SPRING P0057
11 11008106 996530004724 FLOW SELECTOR VALVE CAP P0057
12 12000892 996530007947 OETIKER CLAMP D=9,5 16700004
13 11024469 996530067632 L-F/BRASS CONNECTOR FOR BOILER AURA
14 16000719 996530009548 BLK LINE 5X8,9 SILICONE TUBE IN ROLL
15 12000140 996530007753 ULKA PUMP EP5/S GW 230V-50HZ
12000182 996530007782 ULKA PUMP EP5/S GW 220V-60HZ
12000142 996530007754 ULKA PUMP EAP5/S 120V-60HZ
16 11005948 996530003241 3POLES CONNECTOR FLOWMETER P0057
17 16000380 996530009505 5X8,9 SILICONE TUBE IN ROLL
18 NV99.099 996530059843 TURBINE D=1,2 932-8521/00 ASSY.
19 12001369 996530008039 SCREW TSP TORX 10 5X35 PLAST.SS
20 11013735 996530006841 SLIM TUB.BOILER ASSY. 230V 1300W
11023153 996530007586 SLIM TUB.BOILER ASSY. 120V 1300W
21 12001715 996530069758 SCREW TCB TORX 20 M4X8 AUTOFORMING ZN-B
22 190800100 996530026997 TEMPERATURE SENSOR NTC UL L=280MM
23 11022791 996530007442 BLACK SLIM/EXSL TUB.BOILER SUPPORT
24 12001033 996530007973 THERMOSTAT ONE SHOT 190°
25 11001751 996530000997 TUB.BOILER V3 UPPER THERM.FIXING SPRING
26 11004689 996530002484 TEA/BRASS SAFETY VALVE 16-18 BAR ASSY.
27 JS01.022 996530057357 SILICONE TUBE 5X10 60SH I IN ROLL
28 149205850 996530018056 BLACK TYPE ULKA PUMP W/BEVEL SUPPORT
29 11009747 996530005496 2POLES CONNECTOR PUMP P0057 UL
11026683 996530069759 SLIM TUB.BOIL.STD C1 T190° 1300W 230V AS
11026684 996530069761 SLIM TUB.BOIL.STD C1 T190° 1300W 120V AS
WITH PART.N°20-21-22-24-25
